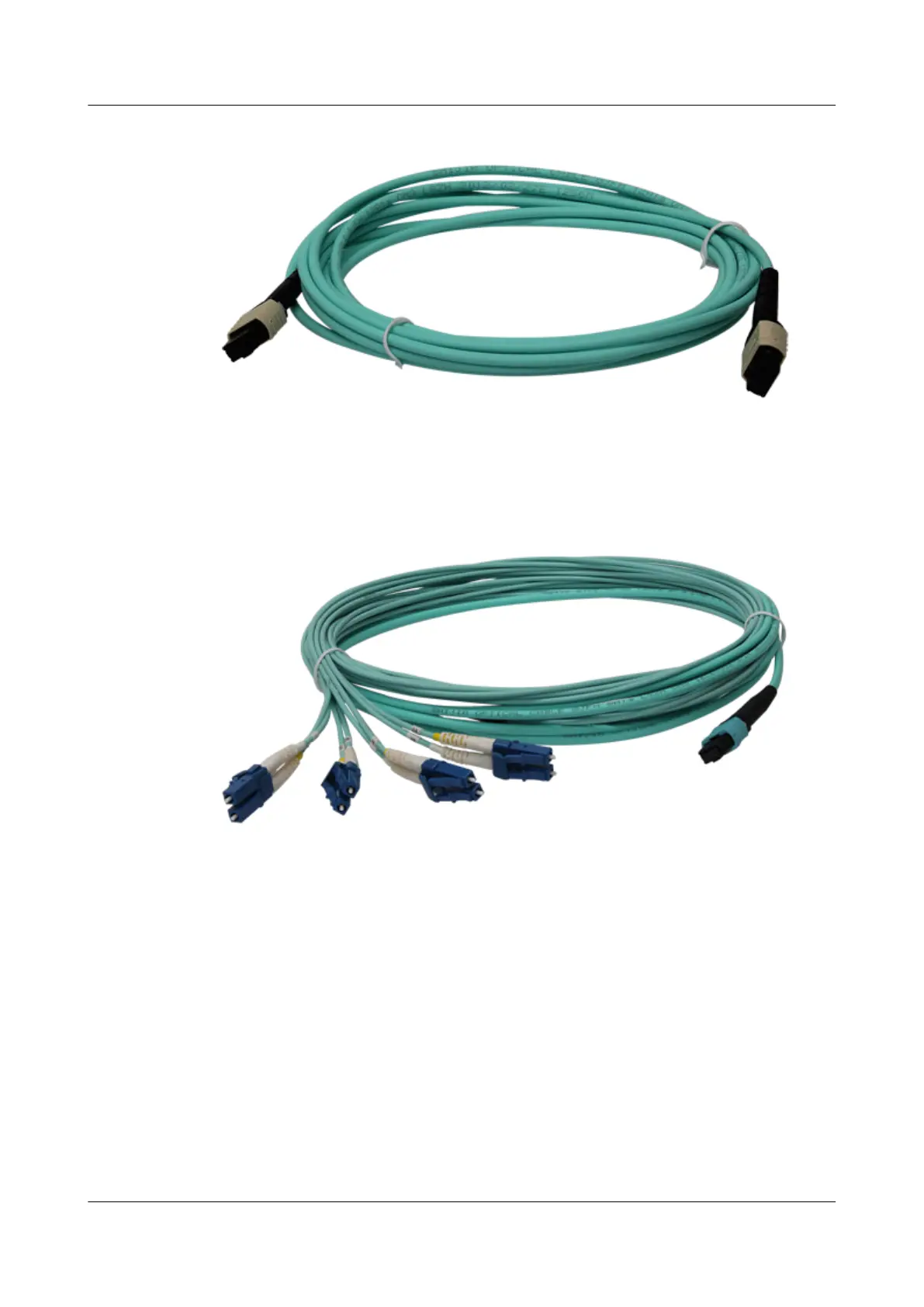

Figure 6-7 Appearance of an MPO-MPO fiber jumper
Figure 6-8 shows an MPO-4*DLC fiber jumper.
Figure 6-8 MPO-4*DLC fiber jumper
Select fiber jumpers according to the following rules:
1. Determine the length of fiber jumpers based on the actual cabling distance.
2. Determine the fiber type based on the optical module type.
l Use a multimode fiber jumper for a multimode optical module.
l Use a single-mode fiber jumper for a single-mode optical module.
3. Determine the optical connector type based on the interface type.
Ensure that the optical connector at each end of a fiber jumper is the same type as the
interface to which it will be connected.
Figure 6-9 shows the structure of an MPO-MPO fiber jumper.
