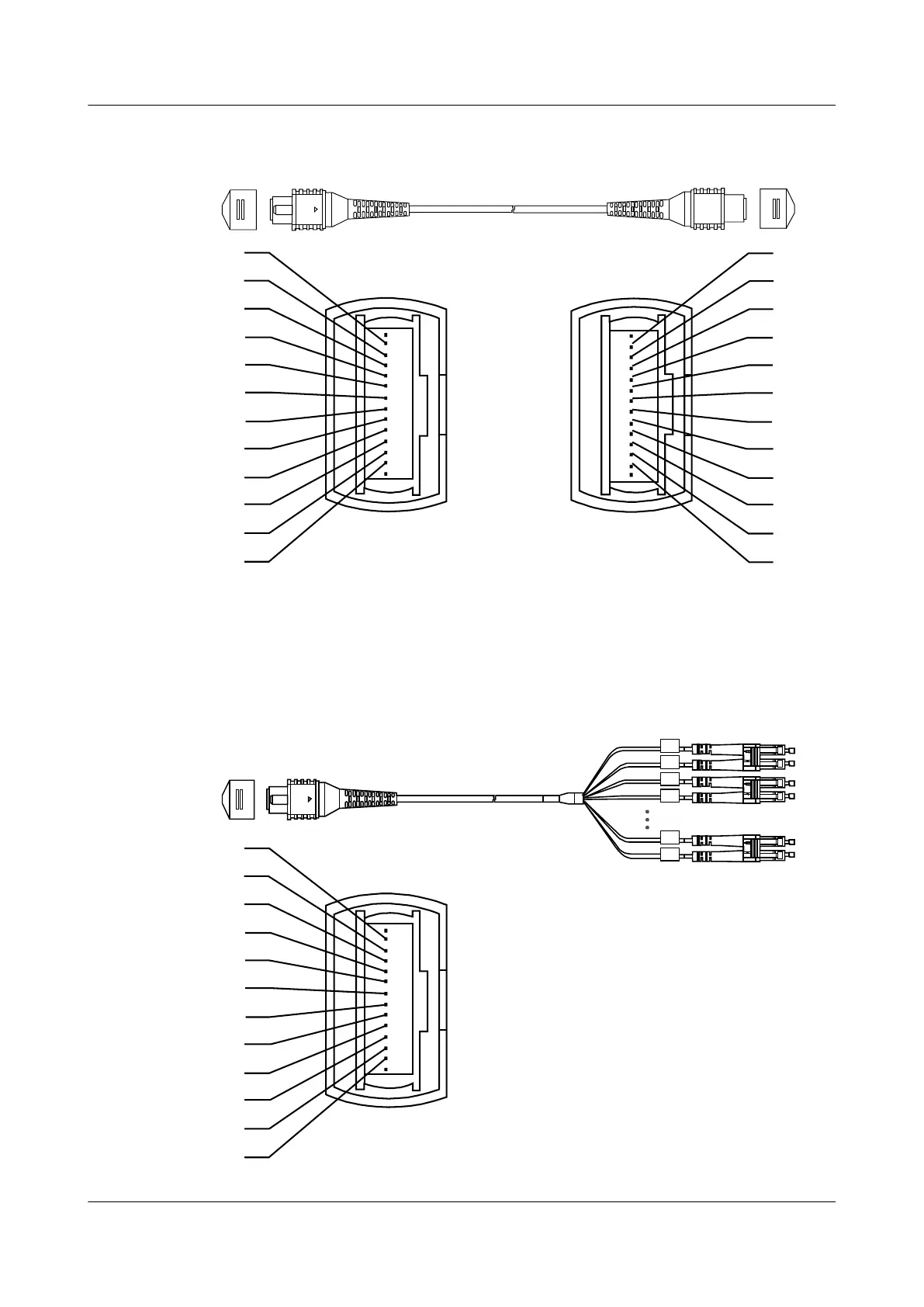

Figure 6-9 Structure of an MPO-MPO fiber jumper
X1X2
1
2
3
4
5
6
7
8
9
10
11
12
12
11
10
9
8
7
6
5
4
3
2
1
Figure 6-10 shows the structure of an MPO-4*DLC fiber jumper.
Figure 6-10 Structure of an MPO-4*DLC fiber jumper
X1
X2
1
2
3
4
5
6
7
8
9
10
11
12
1A
1B
2A
2B
4A
4B
