NO TE
The installation gures are for reference only and are irrelevant to the inverter
cascading scenario.
4.4 Moving the Inverter
Procedure
Step 1 Lift the inverter out of the packing case and move it to the installation position.
CA UTION
Move the inverter with care to prevent device damage and personal injury.
Do not use the wiring terminals and ports at the bottom to support any weight
of the inverter.
When you need to temporally place the inverter on the ground, use foam,
cardboard, or other protection material to prevent damage to its enclosure.

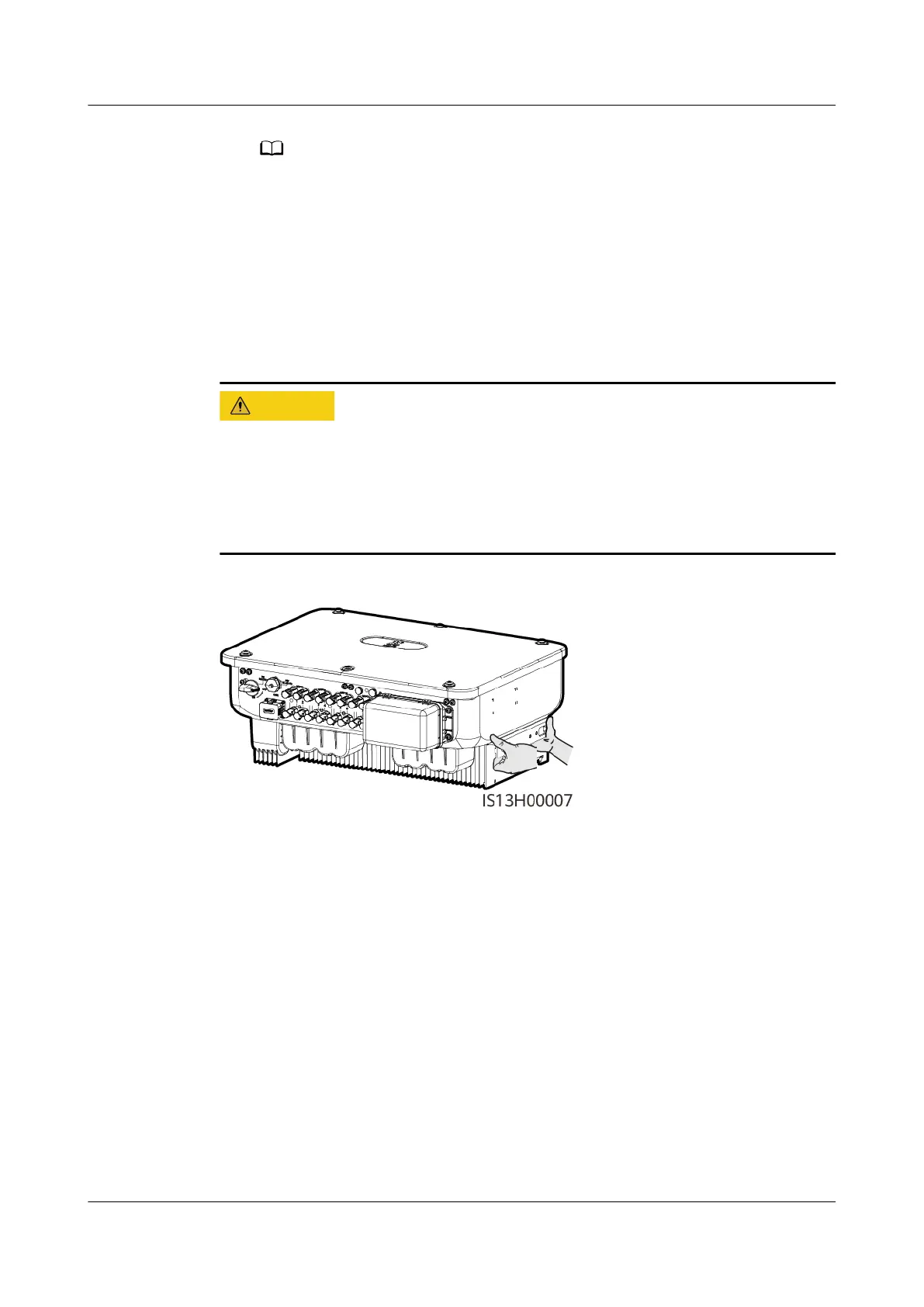

Figure 4-8 Moving the inverter
----End
4.5 Installing the Mounting Bracket
Installation Precautions
Before installing the mounting bracket, remove the security Torx wrench and set it
aside.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 4 Installation
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 31
