Huawei SUN2000-40KTL-M3 User Manual

No. Check Item Acceptance Criteria
9 Installation environment The installation space is proper, and
the installation environment is clean
and tidy.
6.2 System Power-On
Prerequisites
D ANGER
● Wear personal protective equipment and use dedicated insulated tools to avoid
electric shocks or short circuits.
NO TICE
● Before turning on the AC switch between the inverter and the power grid,
check that the AC voltage is within the specied range using a multimeter.
● If the DC power supply is connected but the AC power supply is disconnected,
the inverter will report a Grid Loss alarm. The inverter can start properly only
after the power grid recovers.
Procedure
Step 1 Turn on the AC switch between the inverter and the power grid.
Step 2 (Optional) Remove the locking screw next to the DC SWITCH.

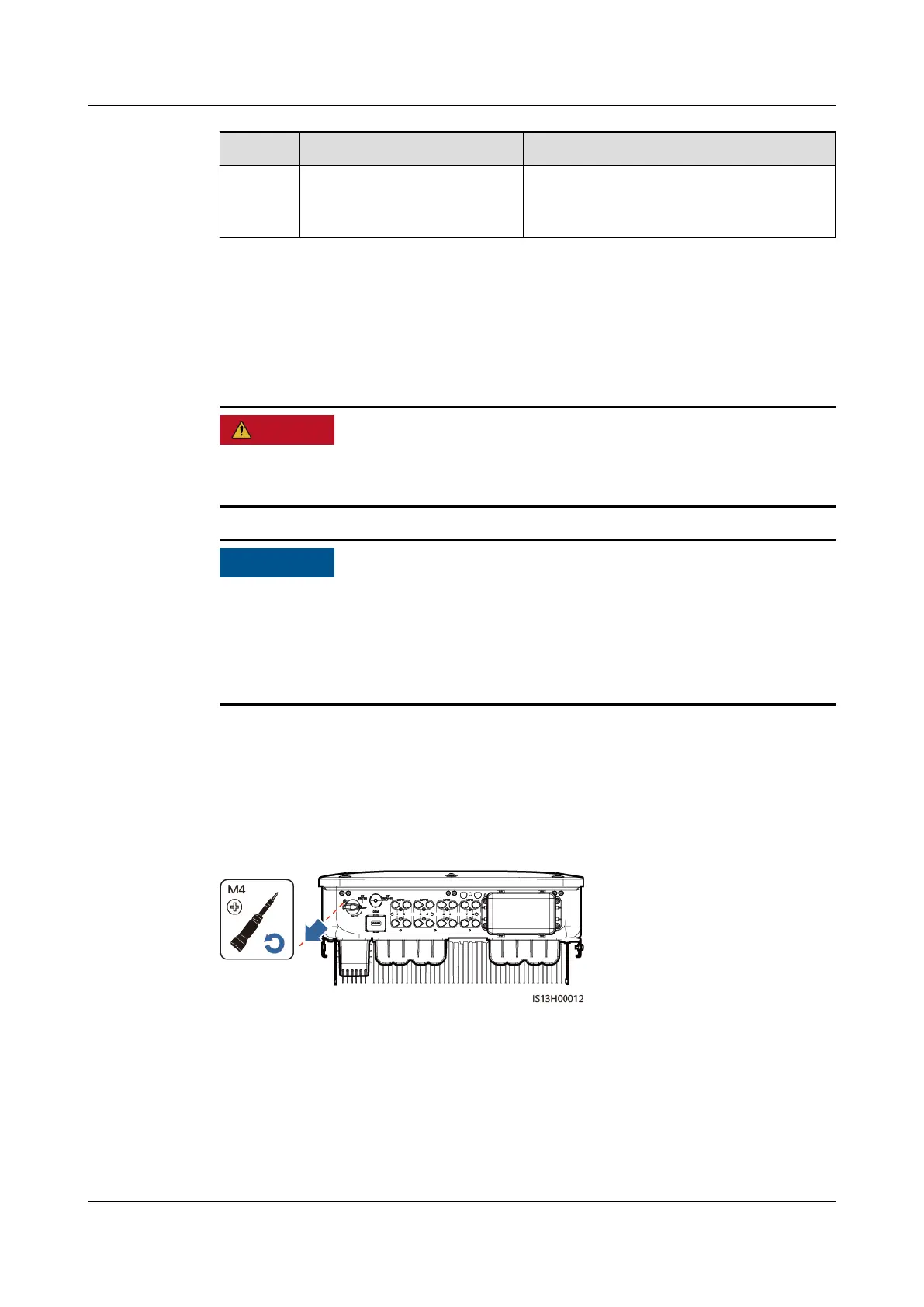

Figure 6-1 Removing the DC SWITCH locking screw
Step 3 Turn on the DC SWITCH at the bottom of the inverter.
Step 4 Observe the LED indicators to check the operating status of the inverter.
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 6 Commissioning
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 65

Huawei SUN2000-40KTL-M3 Specifications

General

Max. Efficiency	98.7%
European Efficiency	98.4%
Max. Input Voltage	1100 V
MPPT Operating Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated Output Power	40000 W
Rated AC Voltage	400 V
Rated AC Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	<3%
DC Reverse-Polarity Protection	Yes
AC Overcurrent Protection	Yes
DC Surge Protection	Type II
AC Surge Protection	Type II
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
DC Switch	Yes
Protection Class	IP66
Operating Temperature Range	-25°C to +60°C
Relative Humidity (Operating)	0% - 100%
Cooling	Natural Convection
Max. Apparent AC Power	44000 VA
AC Voltage Range	320 V - 480 V
Operating Altitude	4000 m
Display	LED Indicators
Communication	RS485, WLAN
Weight	43 kg
Max. DC Power	60000 W
