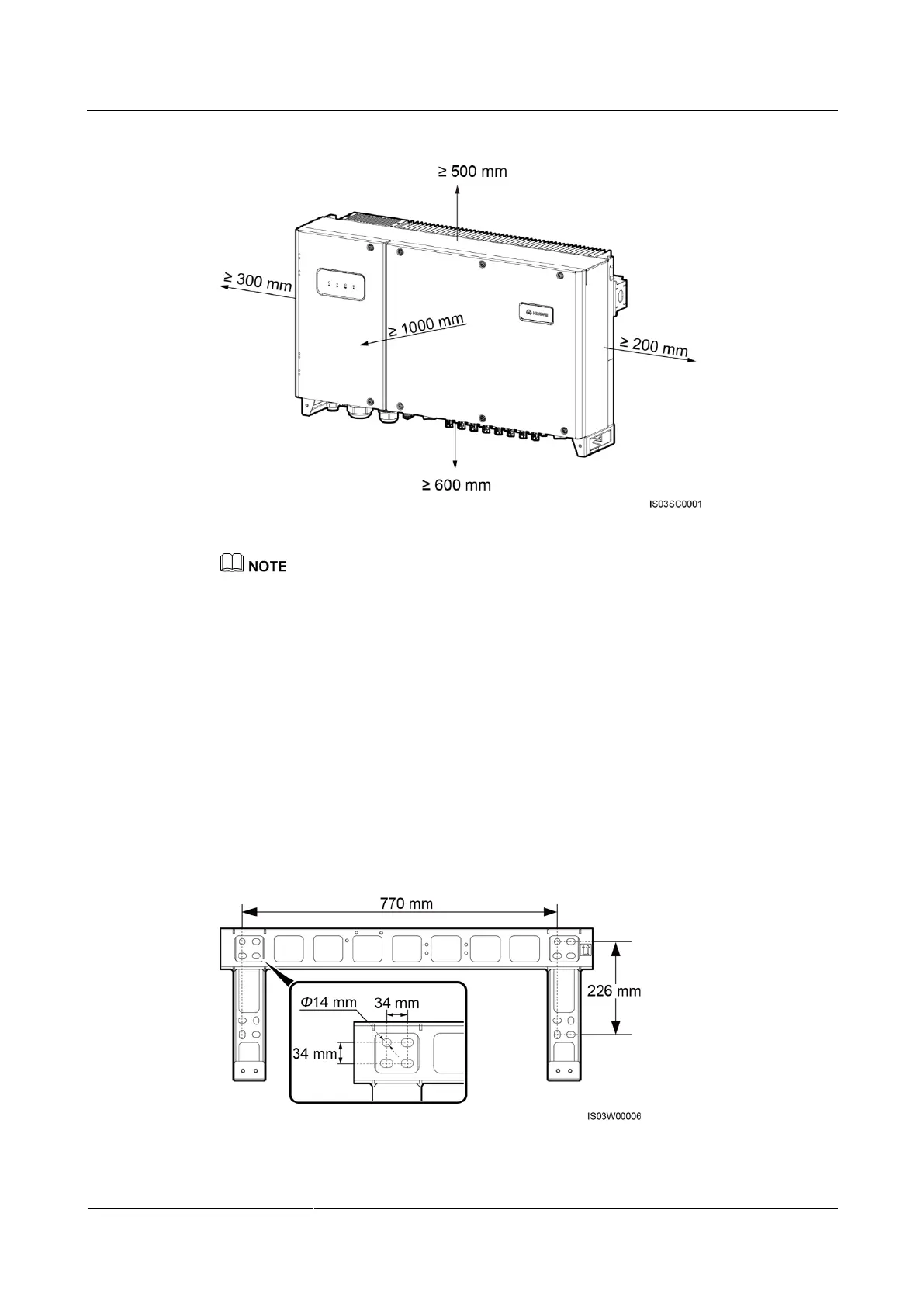

Figure 4-23 Installation space
For ease of installing the SUN2000 on the mounting bracket, connecting cables to the bottom of the
SUN2000, and maintaining the SUN2000 in future, it is recommended that the bottom clearance be
greater than or equal to 600 mm and less than or equal to 730 mm. If you have any questions about the
distance, consult the local technical support engineers.
4.4.2 Moving the Inverter
For details, see 4.3.2 Moving the Inverter.
4.4.3 Installing the Mounting Bracket
Context
Figure 4-24 shows the SUN2000 mounting bracket dimensions.
Figure 4-24 Mounting bracket dimensions
