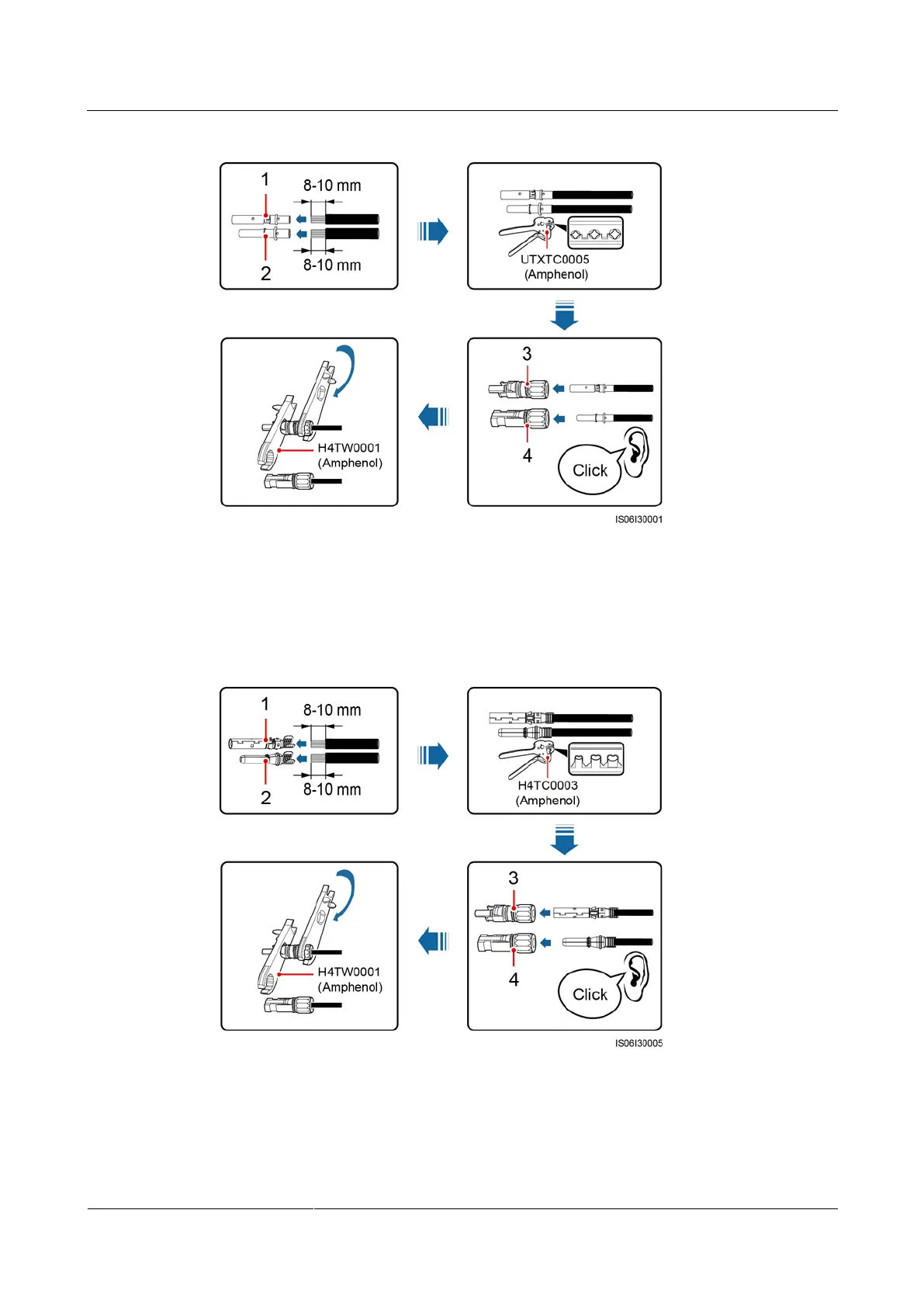

Figure 5-17 Preparing positive and negative connectors (using metal cold forming contacts)
(1) Positive metal contact (cold forming)
(2) Negative metal contact (cold forming)
(3) Positive connector
(4) Negative connector
Figure 5-18 Preparing positive and negative connectors (using metal stamping forming contacts)
(1) Positive metal contact (stamping
forming)
(2) Negative metal contact (stamping
forming)
(3) Positive connector
(4) Negative connector
