Huawei SUN2000-4KTL-L1 Quick Guide

7

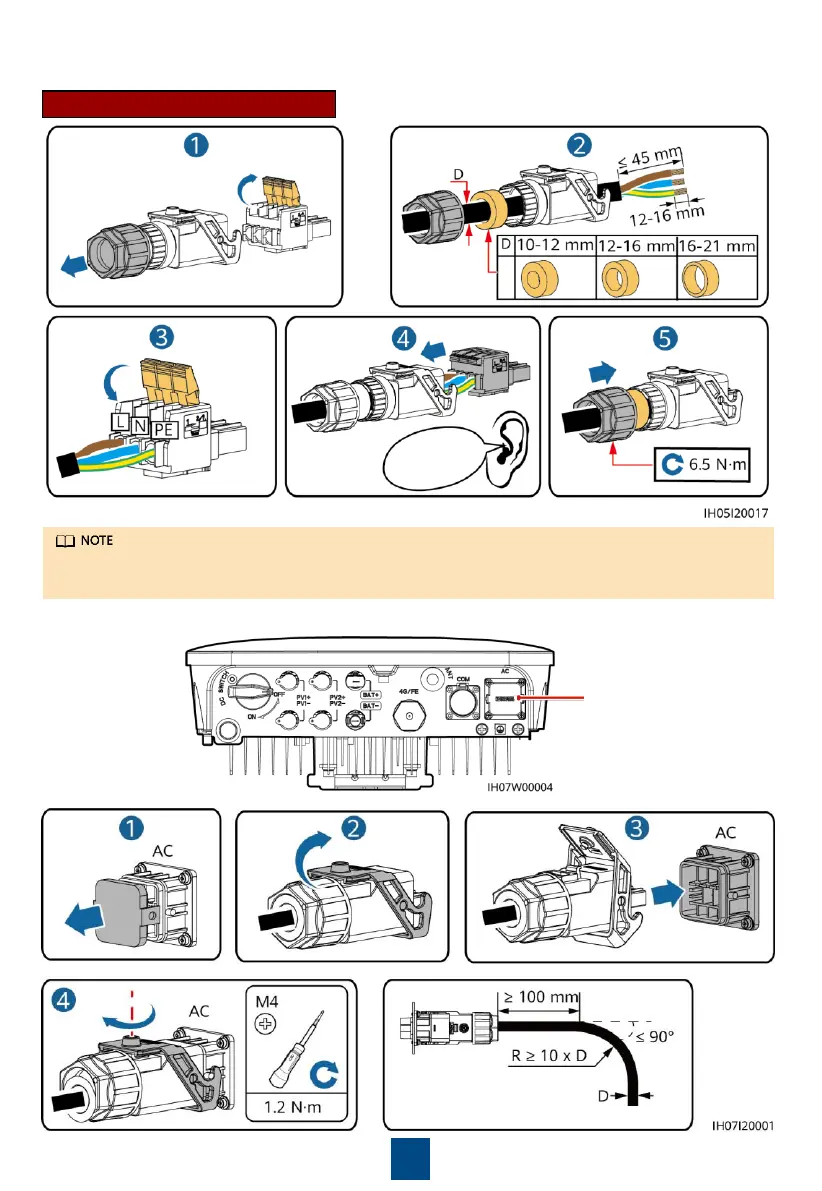

1. Connect the AC output power cable to the AC connector.
Three-Core Cable (L, N, and PE)
Click
The method for connecting a two-core AC output power cable is the same except that the cable
is not connected to PE.
2. Connect the AC connector to the AC output port. Check the route of the AC output power cable.
AC output port (AC)

Huawei SUN2000-4KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Rated output power	4000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Max. apparent AC power	4000 VA
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	200-1000 V
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Operating temperature range	-25°C to +60°C
Protection degree	IP65
Max. Input Power	6000 W
Max. Output Power	4000 W
Rated Output Voltage	220 V / 230 V / 240 V
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural convection
AC voltage range	180 V to 280 V
