(1) LED indicator (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) Ground screw (8) AC output port (AC)
(9) Communications port (COM) (10) Smart Dongle port (GPRS/4G/
WLAN-FE)
(11) Battery terminals (BAT+/BAT–) (12) DC input terminals (PV2+/PV2–)
(13) DC input terminals (PV1+/PV1–) (14) DC switch (DC SWITCH)
(15) Hole for the DC switch locking screw
Two M6 screw holes are reserved on the left and right sides of the SUN2000 for installing
the awning.

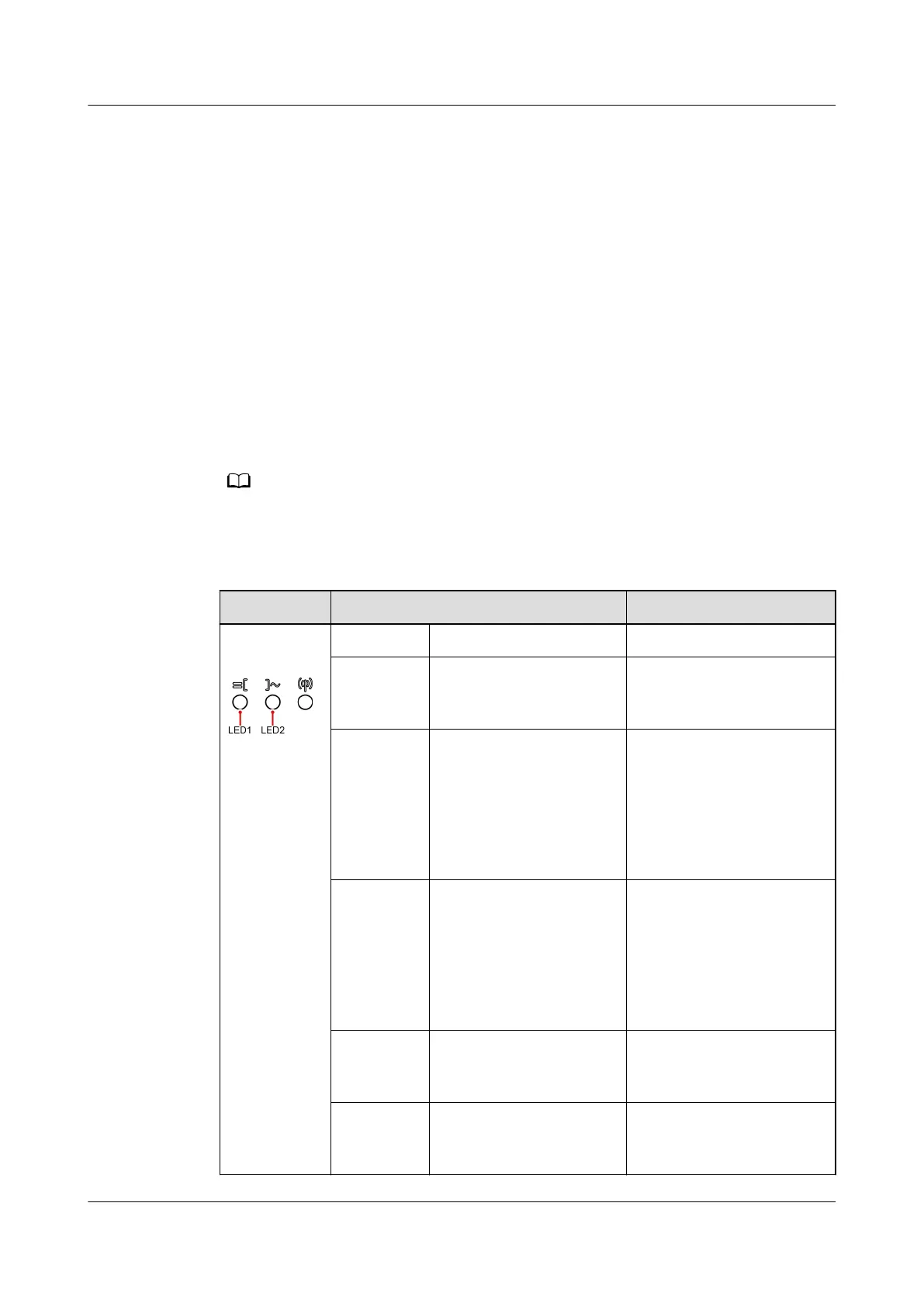

Table 2-2 Indicator description
Category
Status Description
Running
indicator
LED1 LED2 -
Steady
green
Steady green The SUN2000 is
operating in grid-tied
mode.
Blinking
green at
long
intervals
(on for 1s
and then
o for 1s)
O The DC is on and the AC
is o.
Blinking
green at
long
intervals
(on for 1s
and then
o for 1s)
Blinking green at long
intervals (on for 1s and
then o for 1s)
Both the DC and AC are
on, and the SUN2000 is
not supplying power to
the power grid.
O Blinking green at long
intervals (on for 1s and
then o for 1s)
The DC is o and the AC
is on.
Steady
orange
Steady orange The SUN2000 is
operating in the o-grid
mode.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 17
