Huawei SUN2000-4KTL-M1 User Manual

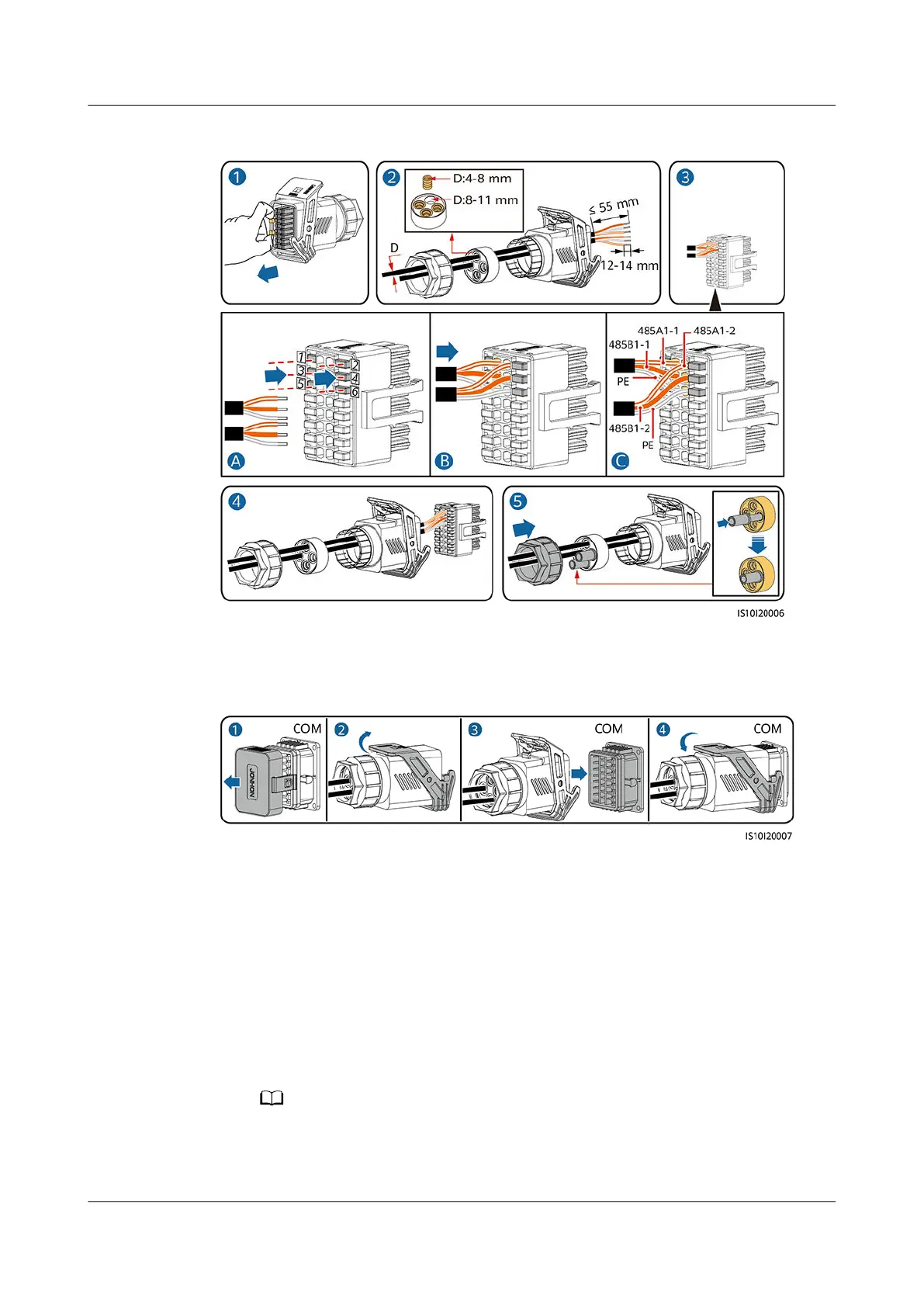

Figure 5-21 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-22 Securing the signal cable connector
----End
5.8.2 Connecting the RS485 Communications Cable (Smart
Power Sensor)
Cable Connection
● The following gures show the cable connections between the inverter and
DTSU666-H and YDS60-C24 meters.
NO TE
The cable connections between the DTSU71 and DHSU1079-CT power meters and the
inverter are the same as those between the DTSU666-H power meter and the inverter.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 61

Huawei SUN2000-4KTL-M1 Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
AC nominal power	4000 W
Operating temperature range	-25°C to +60°C
Max. DC Voltage	600 V
Start Voltage	200 V
Max. Short-Circuit Current per MPPT	18 A
Number of MPPT Trackers	2
Cooling	Natural Convection
Protection Degree	IP65
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	220 V / 230 V / 240 V
Max. DC Power	6000 W
Rated AC Voltage	230 V
