4.4 Moving the SUN2000
Procedure
Step 1 Two persons are required to move the SUN2000 with one person on both sides.
Lift the SUN2000 from the packing case and move it to the specied installation
position.
CA UTION
● Move the SUN2000 with care to prevent device damage and personal injury.
● Do not use the wiring terminals and ports at the bottom to support any weight
of the SUN2000.
● Place a foam pad or cardboard under the SUN2000 to protect the SUN2000
enclosure from damage.

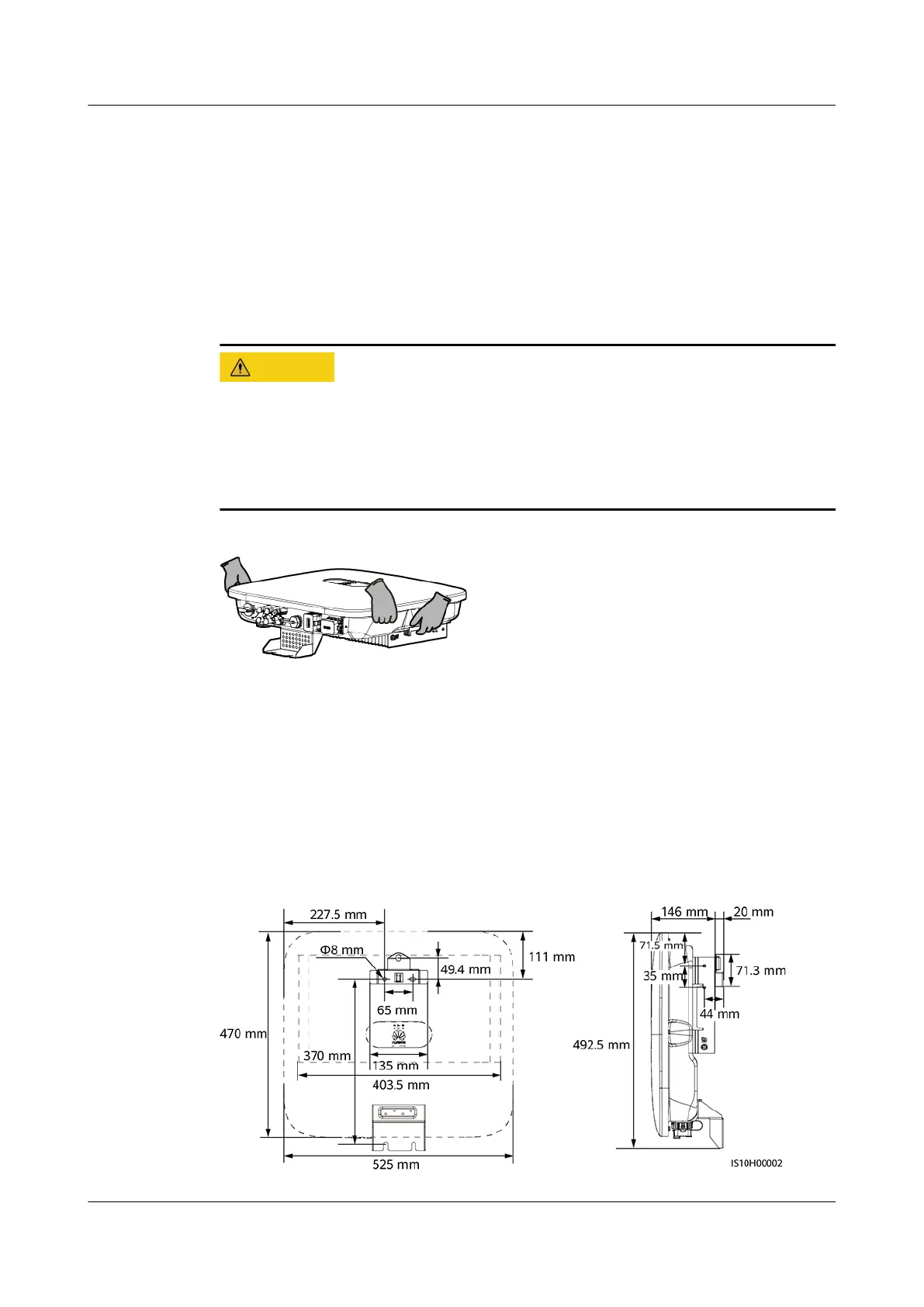

Figure 4-6 Moving the SUN2000
----End
4.5 Installing the Mounting Bracket
Installation Precautions
Figure 4-7 shows the dimensions of installation holes on the SUN2000.
Figure 4-7 Mounting bracket dimensions
SUN2000-(3KTL-10KTL)-M1 Series
