Huawei SUN2000-4KTL-M1 User Manual

CA UTION
● Stay away from the equipment when preparing cables to prevent cable scraps
from entering the equipment. Cable scraps may cause sparks and result in
personal injury and equipment damage.
● When routing PV cables whose pipe is less than 1.5 m long, the positive and
negative PV string cables shall be routed in dierent pipes to prevent cable
damage and short circuits caused by improper operations during construction.
NO TE
The cable colors shown in the electrical connection diagrams provided in this section are for
reference only. Select cables in accordance with local cable specications (green-and-yellow
cables are only used for protective earthing).
5.2 Installation Preparation

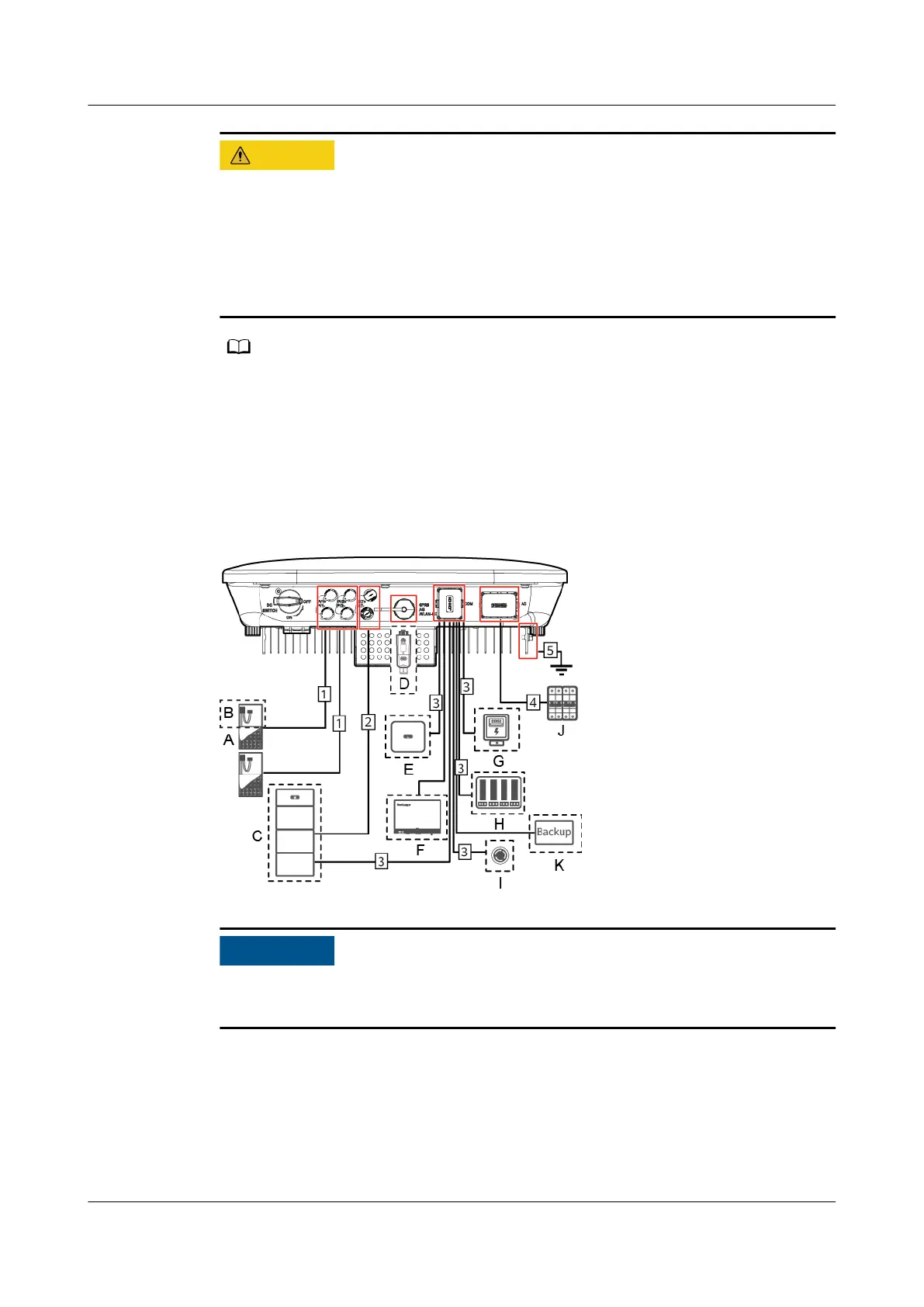

Figure 5-1 SUN2000 cable connections (dashed boxes indicate optional
components)
NO TICE
If a Smart Dongle is congured, it is recommended that you install it before
connecting the signal cable.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 39

Huawei SUN2000-4KTL-M1 Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
AC nominal power	4000 W
Operating temperature range	-25°C to +60°C
Max. DC Voltage	600 V
Start Voltage	200 V
Max. Short-Circuit Current per MPPT	18 A
Number of MPPT Trackers	2
Cooling	Natural Convection
Protection Degree	IP65
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	220 V / 230 V / 240 V
Max. DC Power	6000 W
Rated AC Voltage	230 V
