Huawei SUN2000-4KTL-M1 User Manual

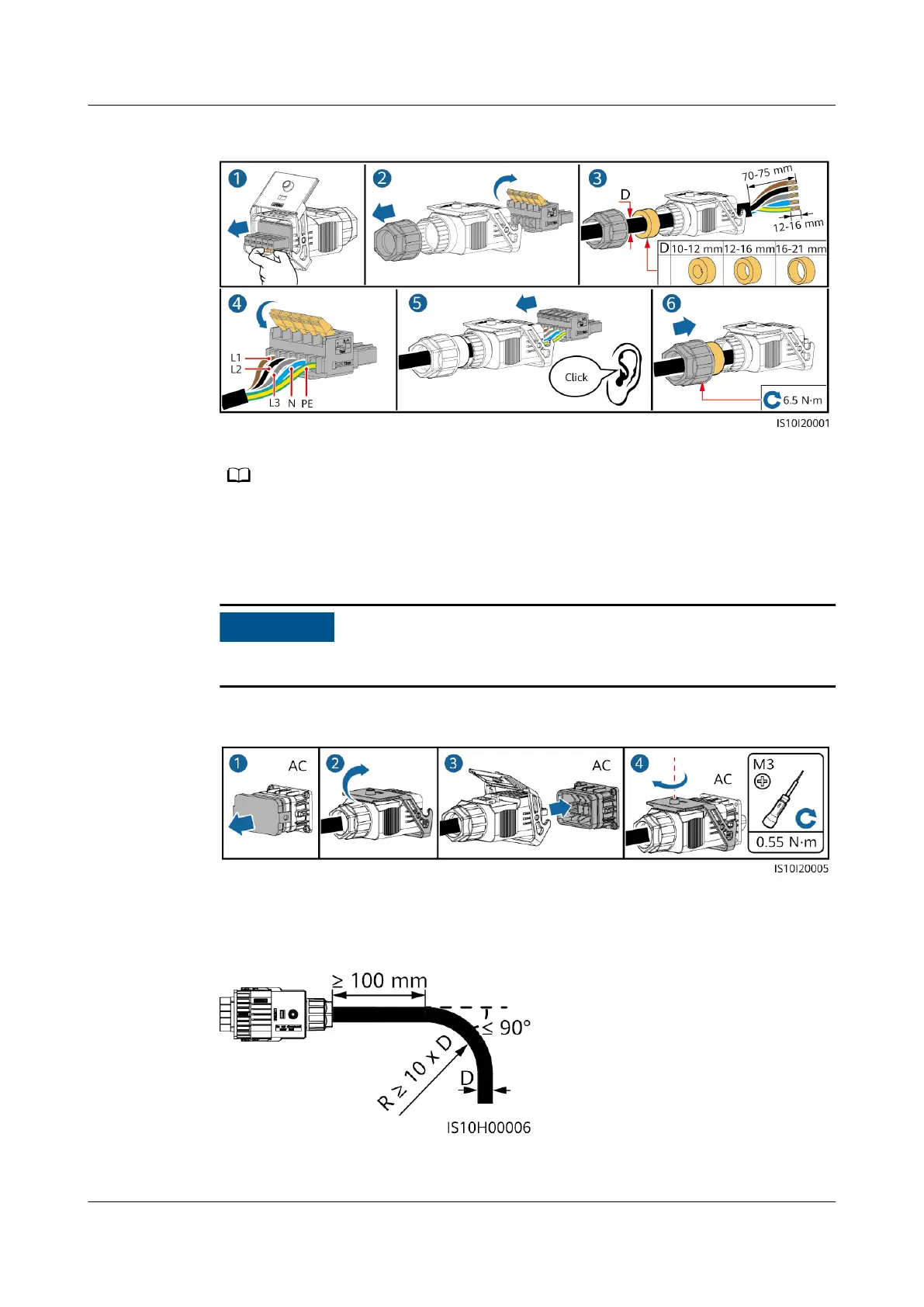

Figure 5-8 Five-core cable (L1, L2, L3, N, and PE)
NO TE
The cable colors shown in the gures are for reference only. Select an appropriate cable
according to local standards.
Step 2 Connect the AC connector to the AC output port.
NO TICE
Ensure that the AC connector is connected securely.
Figure 5-9 Securing the AC connector
Step 3 Check the route of the AC output power cable.
Figure 5-10 Cable route
----End
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 48

Huawei SUN2000-4KTL-M1 Specifications

General

Max. efficiency	98.4%
European efficiency	97.8%
AC nominal power	4000 W
Operating temperature range	-25°C to +60°C
Max. DC Voltage	600 V
Start Voltage	200 V
Max. Short-Circuit Current per MPPT	18 A
Number of MPPT Trackers	2
Cooling	Natural Convection
Protection Degree	IP65
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	220 V / 230 V / 240 V
Max. DC Power	6000 W
Rated AC Voltage	230 V
