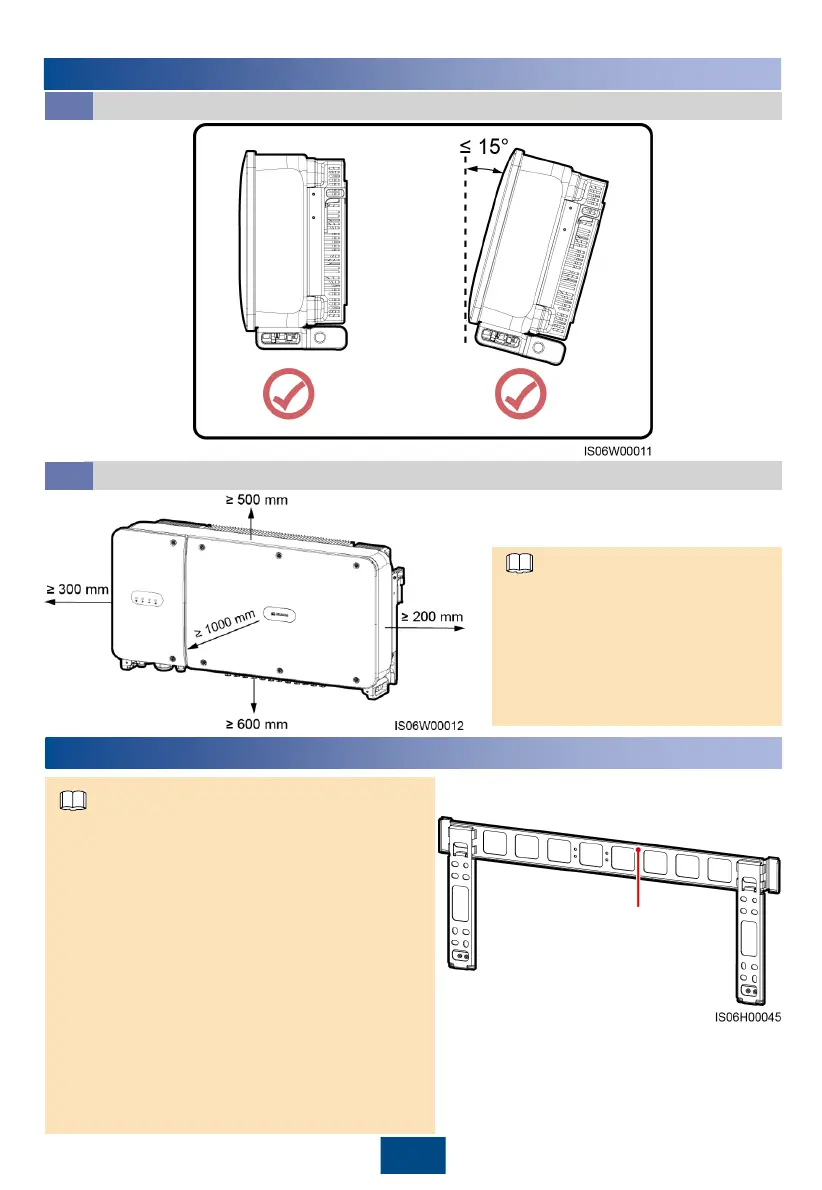

Installation Requirements
Installation Angle
2.1
Installation Space
2.2
For ease of installing the SUN2000 on
the mounting bracket, connecting
cables to the bottom of the SUN2000,
and maintaining the SUN2000 in
future, it is recommended that the
bottom clearance be between 600 mm
and 730 mm.
The SUN2000 mounting bracket has four
groups of tapped holes, each group containing
four tapped holes. Mark any hole in each group
based on site requirements and mark four
holes in total. Two round holes are preferred.
M12x40 bolt assemblies are supplied with the
SUN2000. If the bolt length does not meet the
installation requirements, prepare M12 bolt
assemblies by yourself and use them together
with the supplied M12 nuts.
The following describes how to install the
SUN2000 by using support installation as an
example. For details about wall-mounted
installation, see the user manual.
Save the security torx wrench for later use after
removing it from the mounting bracket.
