Crimping the OT terminal
● Pay attention not to damage the core wire when stripping a cable.
● The cavity formed after the conductor crimp strip of the OT terminal is crimped
must wrap the core wires completely. The core wires must contact the OT
terminal closely.
● Wrap the wire crimping area with heat shrink tubing or PVC insulation tape.
The following
gure uses heat shrink tubing as an example.
● When using the heat gun, protect devices from being scorched.

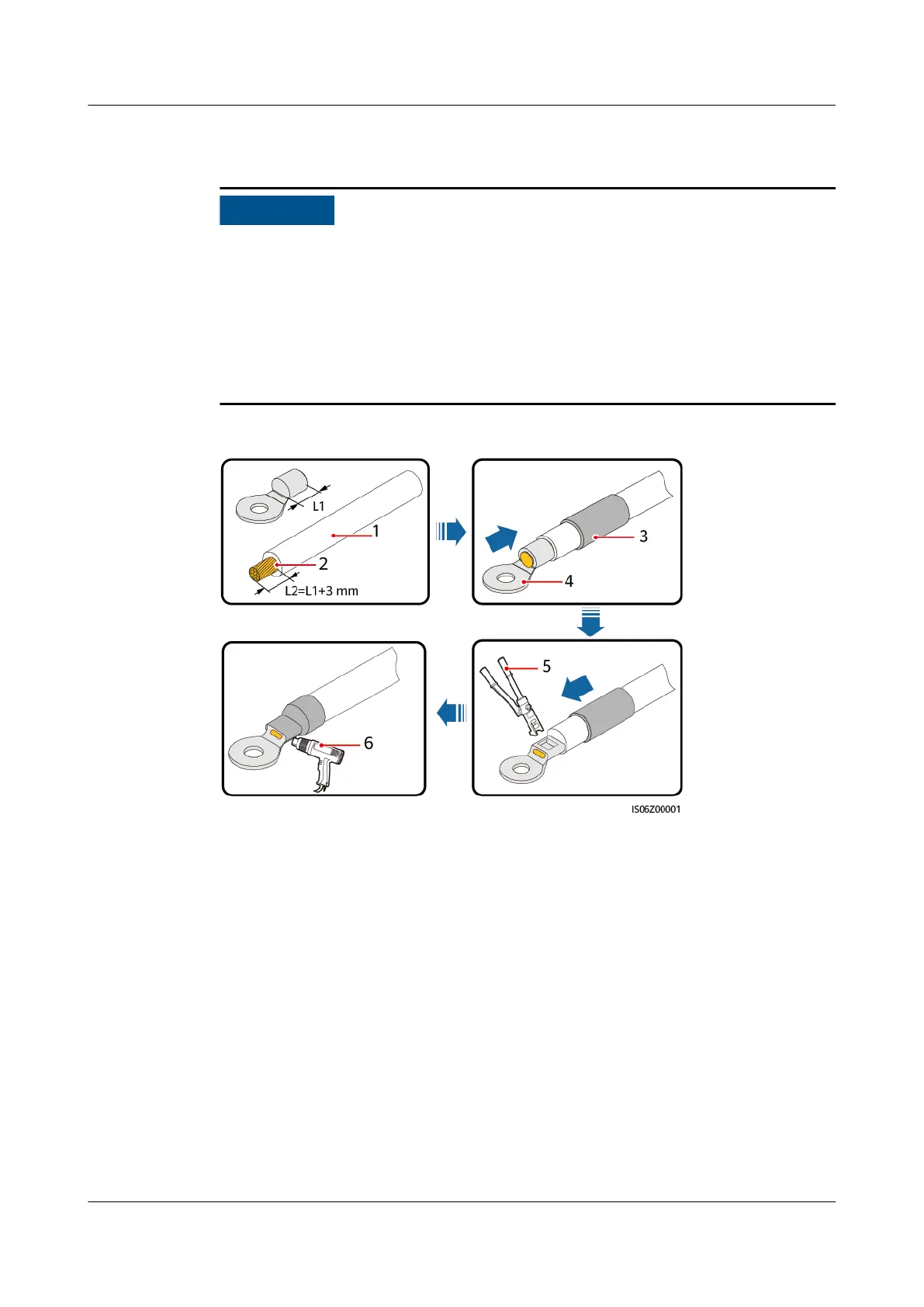

Figure 5-2 Crimping the OT Terminal
(1) Cable
(2) Core wire (3) Heat shrink tubing
(4) OT terminal (5) Hydraulic pliers (6) Heat gun
