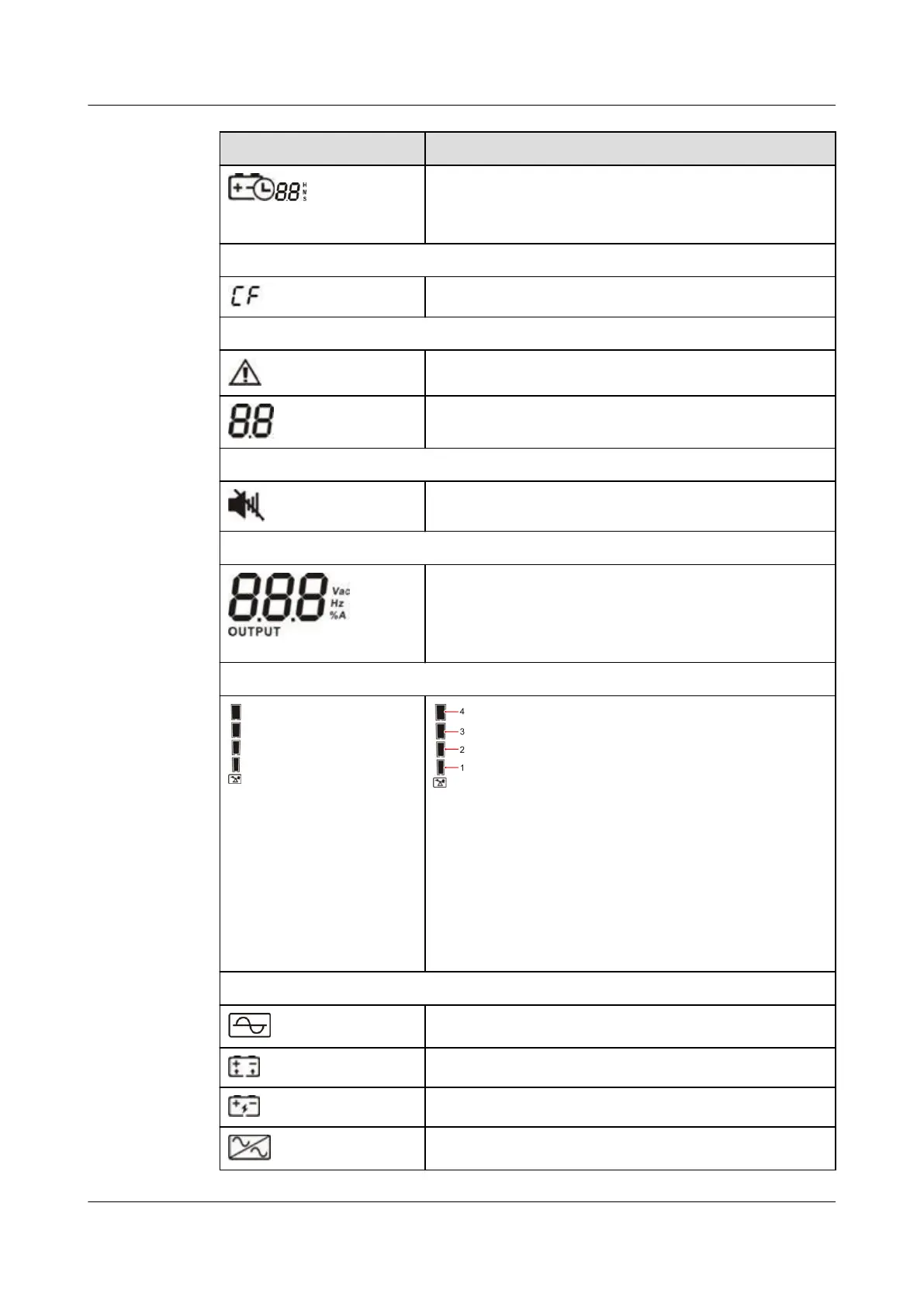

Icon Function
Indicates the backup time, alarm ID, and CF (only
displayed in converter mode) cyclically in digits.
H: hour; M: minute; S: second
Converter mode information
Indicates that the UPS is in converter mode.
Alarm information
Indicates that an alarm occurs.
Indicates the warning or alarm ID.
Muting
Indicates that the UPS is muted.
Output information
Displays the output voltage, frequency, or battery
voltage.
Vac: output voltage; Hz: output frequency; %: load
rate; A: output current
Load information
Displays the current load percentage by level:
● [0–25%]: Indicator 1 is steady on.
● (25%–50%]: Indicators 1 and 2 are steady on.
● (50%–75%]: Indicators 1, 2 and 3 are steady on.
● (75%–100%]: Indicators 1, 2, 3 and 4 are steady
on.
● > 100%: Indicators 1, 2, 3, and 4 are blinking.
Working mode information
Indicates that the UPS works in normal mode.
Indicates that the UPS works in battery mode.
Indicates that batteries are being charged.
Displays that the UPS is in bypass mode.
UPS2000-A-(1 kVA-3 kVA)
User Manual 5 Setting Control Panel
Issue 17 (2024-01-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 45
