UPS2000-A-(6 kVA-10 kVA)
User Manual
Copyright © Huawei Technologies Co., Ltd.

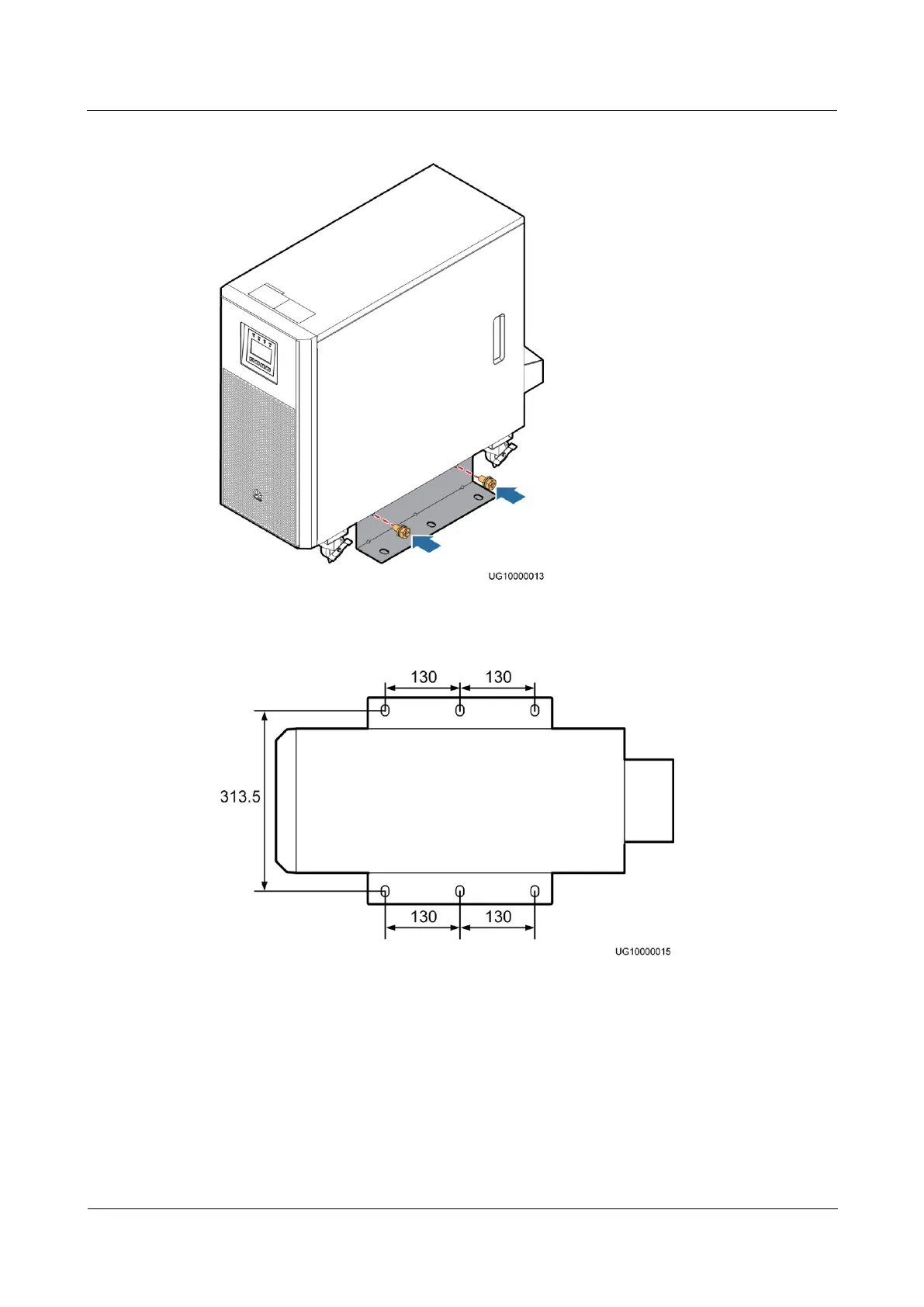

Figure 3-6 Installing mounting brackets (optional)
Figure 3-7 Mounting bracket (optional) installation positions (top view, unit: mm)
Step 4 Use a hammer drill to drill holes for installing the M12x60 expansion bolts and then install
the expansion sleeve in the holes. Figure 3-8 shows expansion bolt composition. Figure 3-9
shows how to install an expansion bolt.
