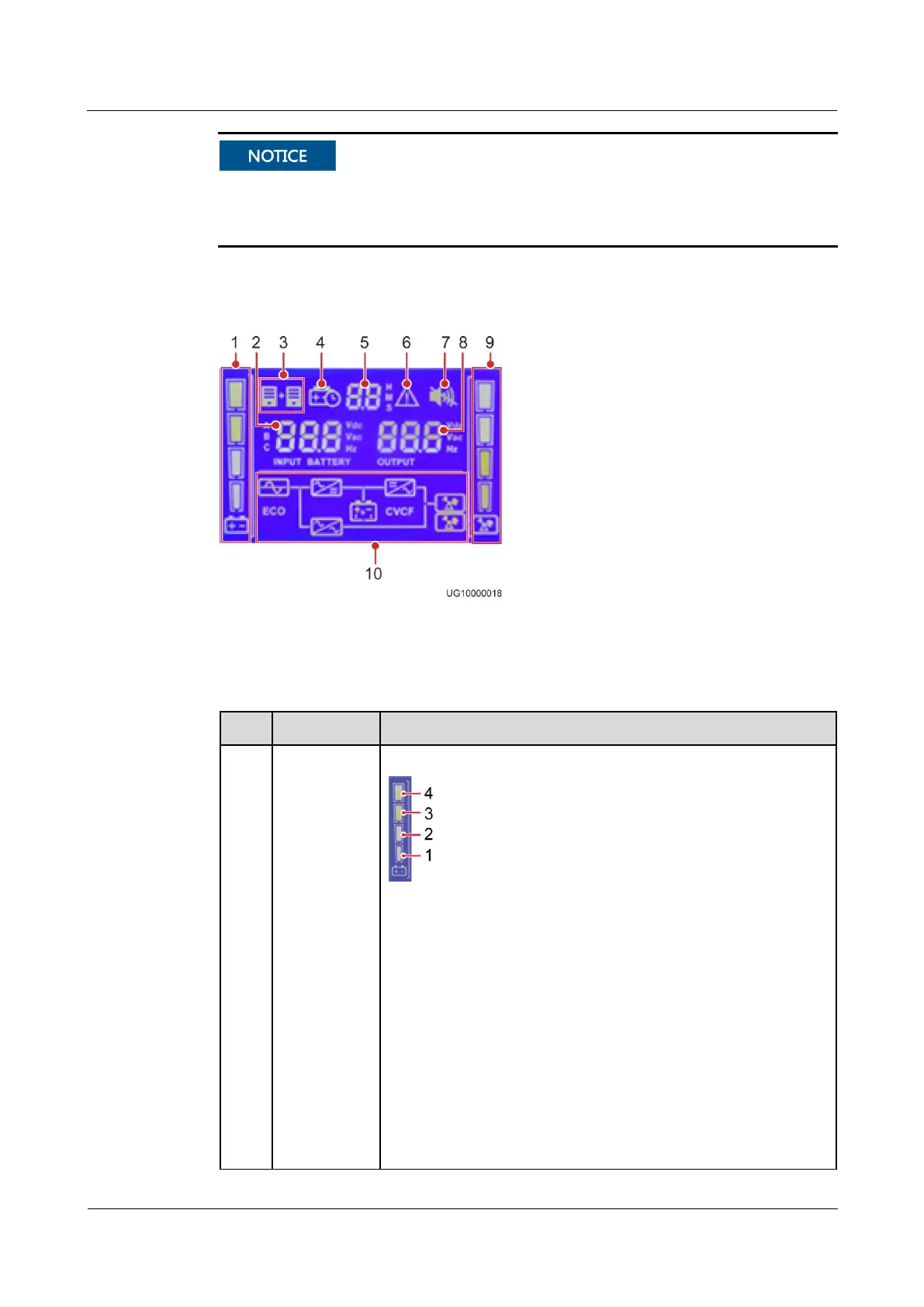

Figure 4-2 shows a startup screen.
Figure 4-2 Description of the startup screen
Table 4-4 describes the menu icons, and Table 4-5 describes the working mode icons.
Table 4-4 Icons on the screen
No.
Meaning
Remarks
1
Battery
information
Battery capacity

Battery discharge status
− 76%-100%: Indicators 1, 2, and 3 are steady on, and
indicator 4 blinks.
− 51%-75%: Indicators 1 and 2 are steady on, and indicator 3
blinks.
− 26%-50%: Indicator 1 is steady on, and indicator 2 blinks.
− 0%-25% (excluding 0%): Indicator 1 blinks.
− 0%: Indicators 1, 2, 3, and 4 are off.

Battery charge status
− 96%-100%: Indicators 1, 2, 3, and 4 are steady on.
− 76%-95%: Indicators 1, 2, and 3 are steady on, and indicator
4 blinks.
