3.5 Connecting Communications Cables
Connecting a Communications Cable to an RS232 Port
Step 1 Connect one end of the NetEco Express (RS232) cable to the serial port on the UPS.
Step 2 Connect the other end of the NetEco Express (RS232) cable to the RS232 port on the
monitoring personal computer (PC).

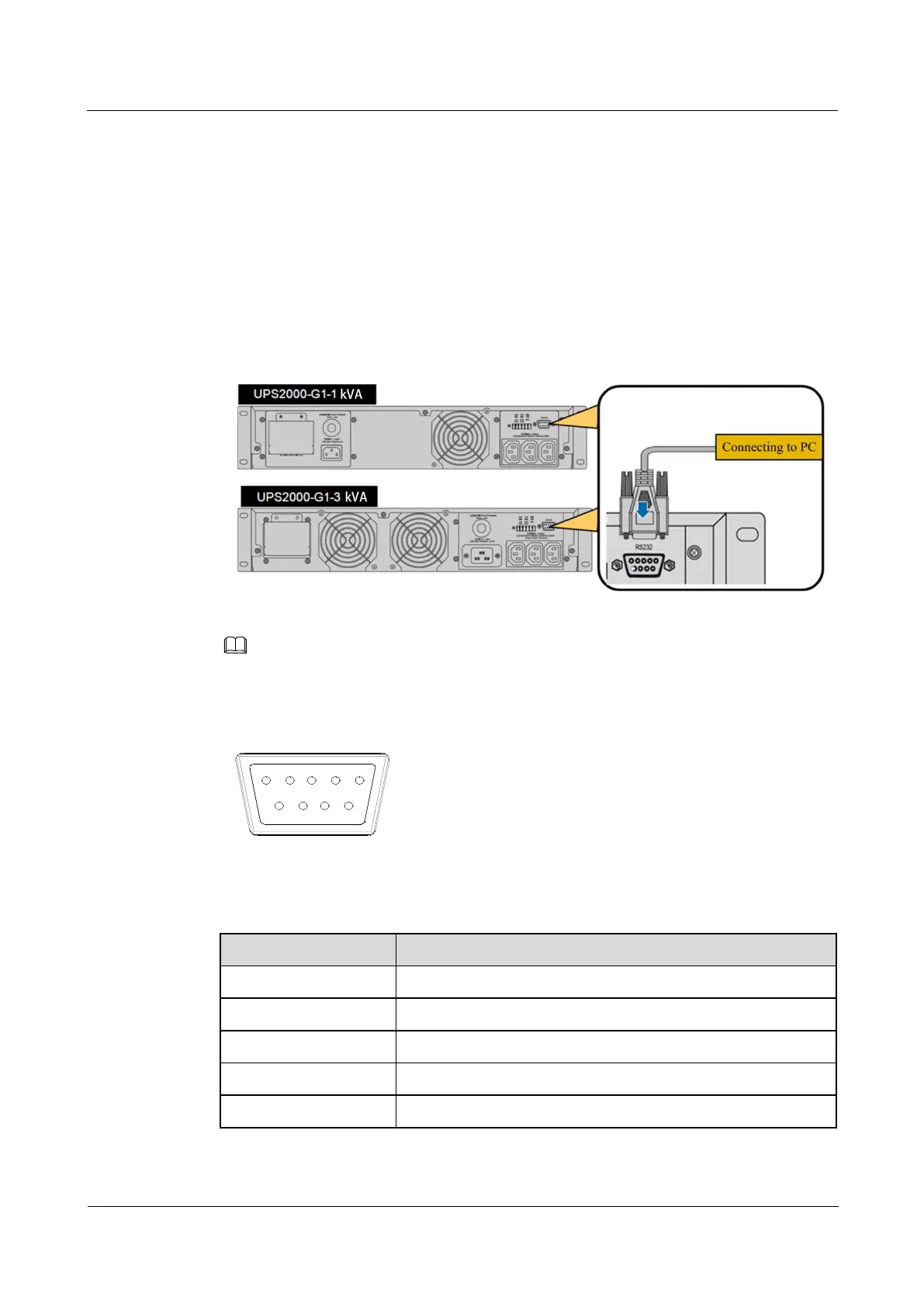

Figure 3-6 shows how to connect a communications cable to an RS232 port.
Figure 3-6 Connecting a communications cable to an RS232 port
Pins on an RS232 port are identified uniquely. For details, see Figure 3-7 and Table 3-2.
Figure 3-7 RS232 pins
5
1
9
6
Table 3-2 RS232 pin description
Pin No.
Description
1–5
Reserved
6
Receives data.
7
Common terminal
8
Reserved
9
Sends data.
NOTE
