(Optional) Installing the Tail Frame

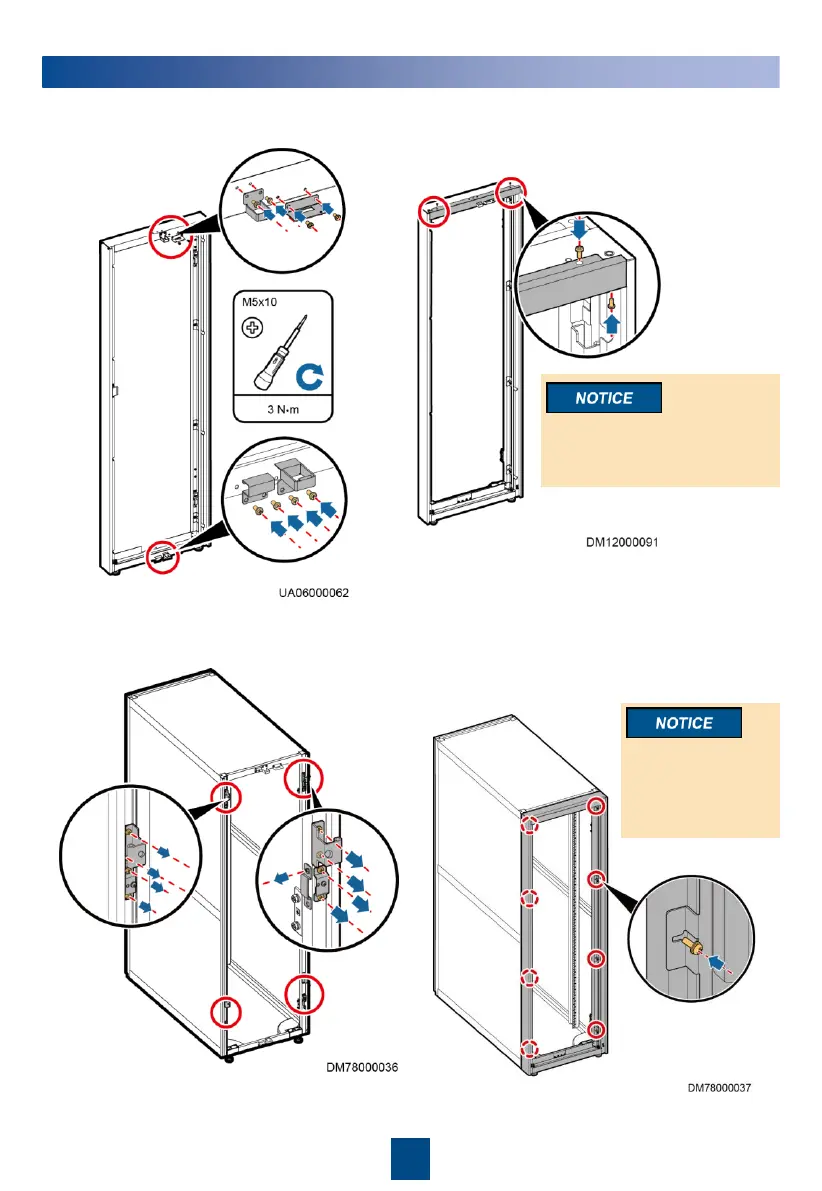

1. Use eight M5 tapping screws to secure the tail
frame accessories to the tail frame. as shown
in the following figure.
2. Use four M5 tapping screws to secure one
upper sealing plate to the tail frame, as shown
in the following figure.
3. Open the cabinet rear door, and remove the
rear door, hinges and the connecting kits, and
ground cable, as shown in the following figure.
4. Move the tail frame to the UPS rear door,
and adjust the anchor bolts of the tail frame
so that the fail frame top is flush with the
cabinet top, and secure it to the UPS using
eight M5 tapping screws, as shown in the
following figure.
There are two upper sealing
plates, and the one used in
this step has a gap.
The tail frame
side with anchor
bolts should face
the cabinet
bottom.
5. Install the cabinet rear door and accessories at the corresponding positions on the tail frame.
To Next Page
