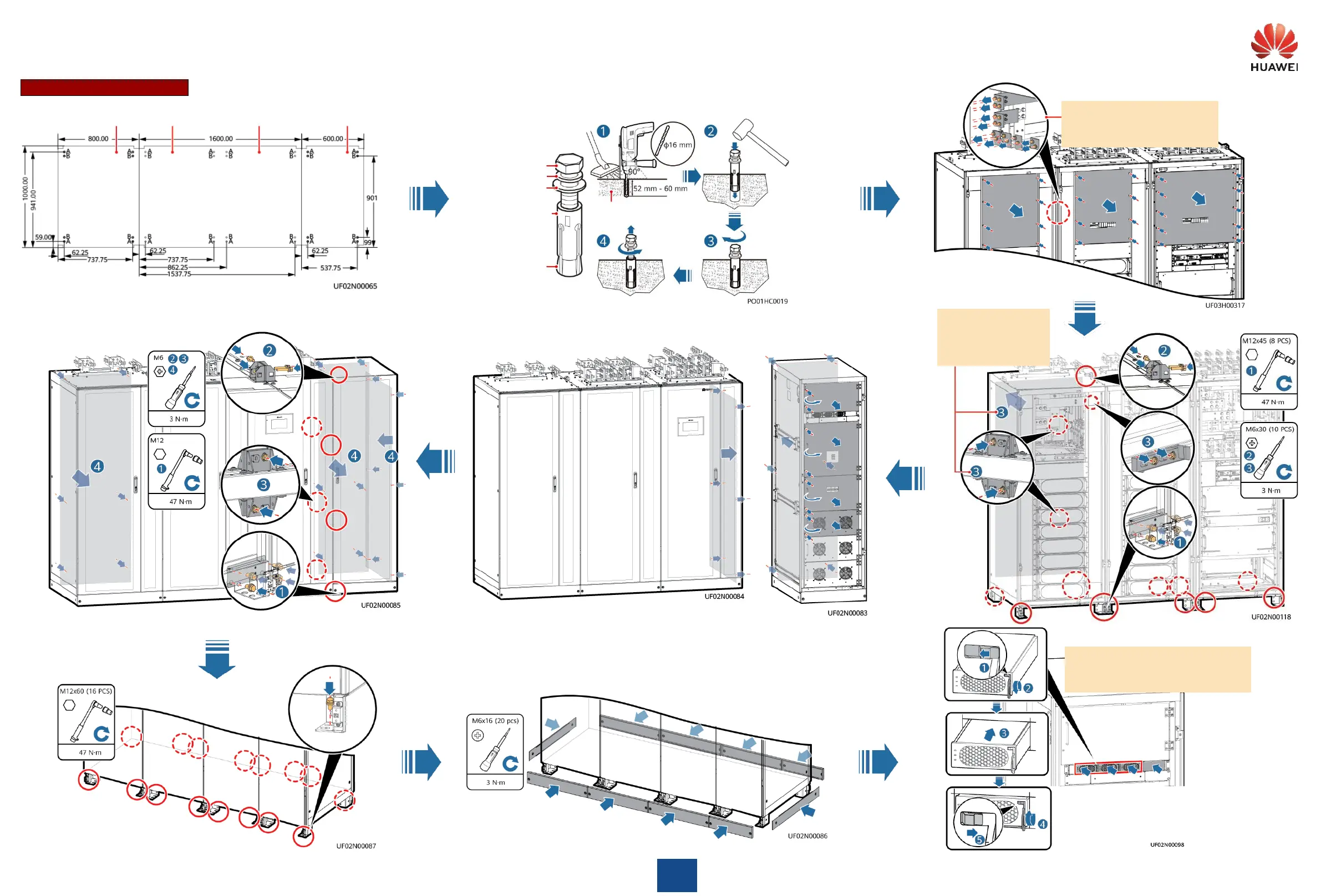

Securing the Cabinets (1600 kVA)
Power cabinet 1
Bypass cabinet
Power cabinet 2
unit: mm
A: mounting holes on the channel
steel
B: mounting holes on the floor
Inductor cabinet
M12 bolt
Spring washer
Flat washer
Expansion sleeve
Expansion nut
Concrete floor
Before combining cabinets, remove
the screws preinstalled on the copper
bars in power cabinet 2. Store them
properly for future use.
Remove the rear door of
power cabinet 1 when
installing cabinet
combination screws in the
middle at the rear.
UPS5000-H-(1200 kVA-1600 kVA) Quick Guide (100 kVA Power Modules, Three-Phase Three-Wire)
• Installing rectifiers in the inductor cabinet.
• Rectifiers are delivered separately, and
baffle plates are placed in the fitting bag
of the inductor cabinet.
To Next Page
