03
Installing Power Cables Between the UPS and the Inductor Cabinet
5

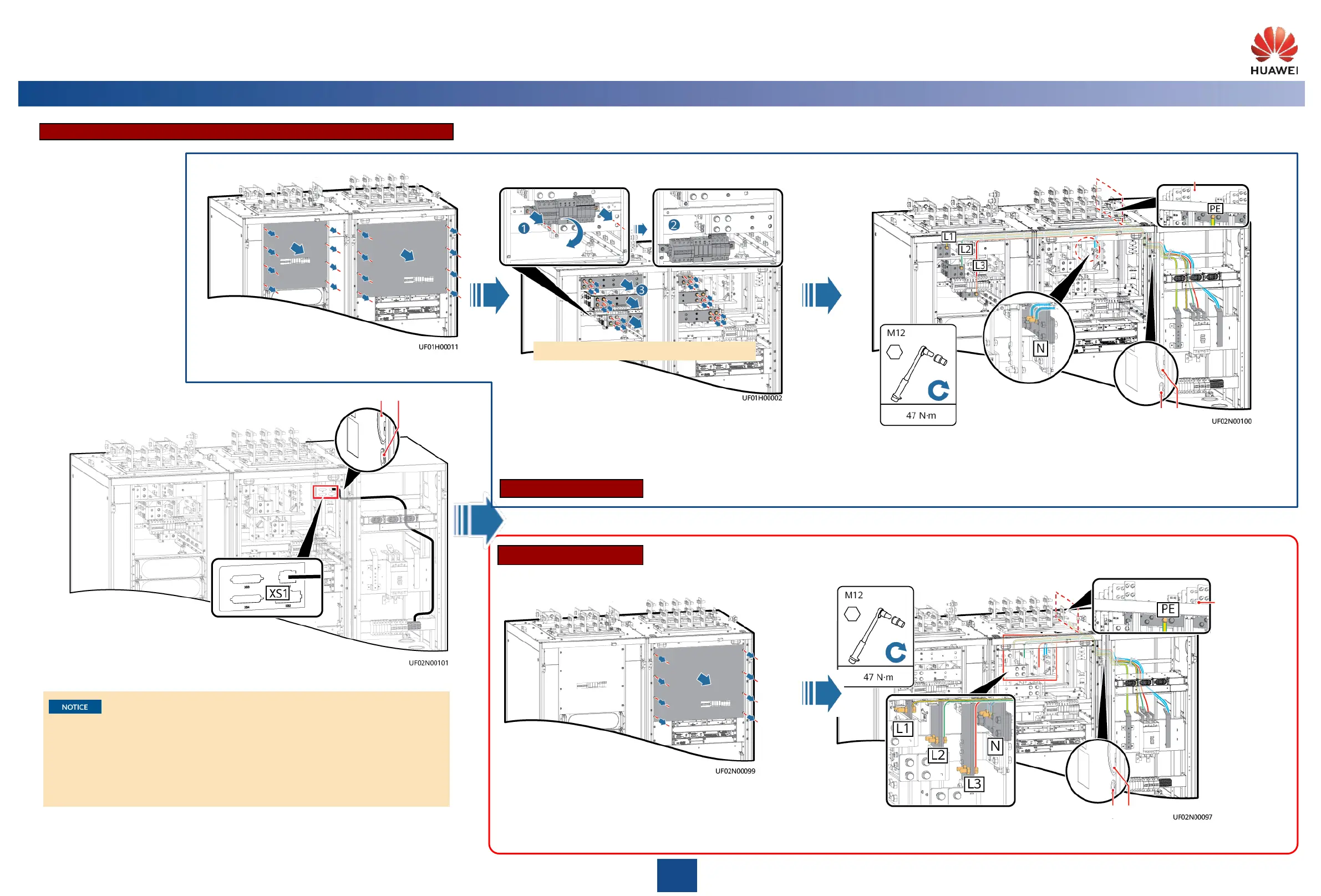

Installing Power Cables between the UPS and the Inductor Cabinet (1200 kVA)
Copper bars are heavy. Two persons are required.
Signal cable hole
Power cable hole
Different Power Sources
Single Power Source
Side view
of the UPS
Side view of the UPS
Cables have been preinstalled and bound in the inductor cabinet.
The cables from the inductor cabinet to the UPS are configured based on the longest cable
length before delivery. If short cables are needed in the actual installation scenario, you can
cut the excess cables and crimp terminals.
Cables must be bound to the nearest beam or cable bridge according to the route shown in
the figure.
Do not bind signal cables and power cables together.
The number and colors of cables in the figures are for reference only.
UPS5000-H-(1200 kVA-1600 kVA) Quick Guide (100 kVA Power Modules, Three-Phase Three-Wire)
Signal cable hole
Power
cable
hole
Signal cable hole Power
cable
hole
