connect the cable from the side beam of the UPS to the small holes on the
UPS output U or W and output N copper bars.
– The 300K-SM cabinet with the power distribution subrack in the lower part is used
as an example to show how to connect cables.
– The 200K-FM cabinet with the power distribution subrack in the upper part is used
as an example to show how to connect cables.
– Each isolation protection model is illustrated.
– M4 screws should be used and tightened to 1.4 N·m.

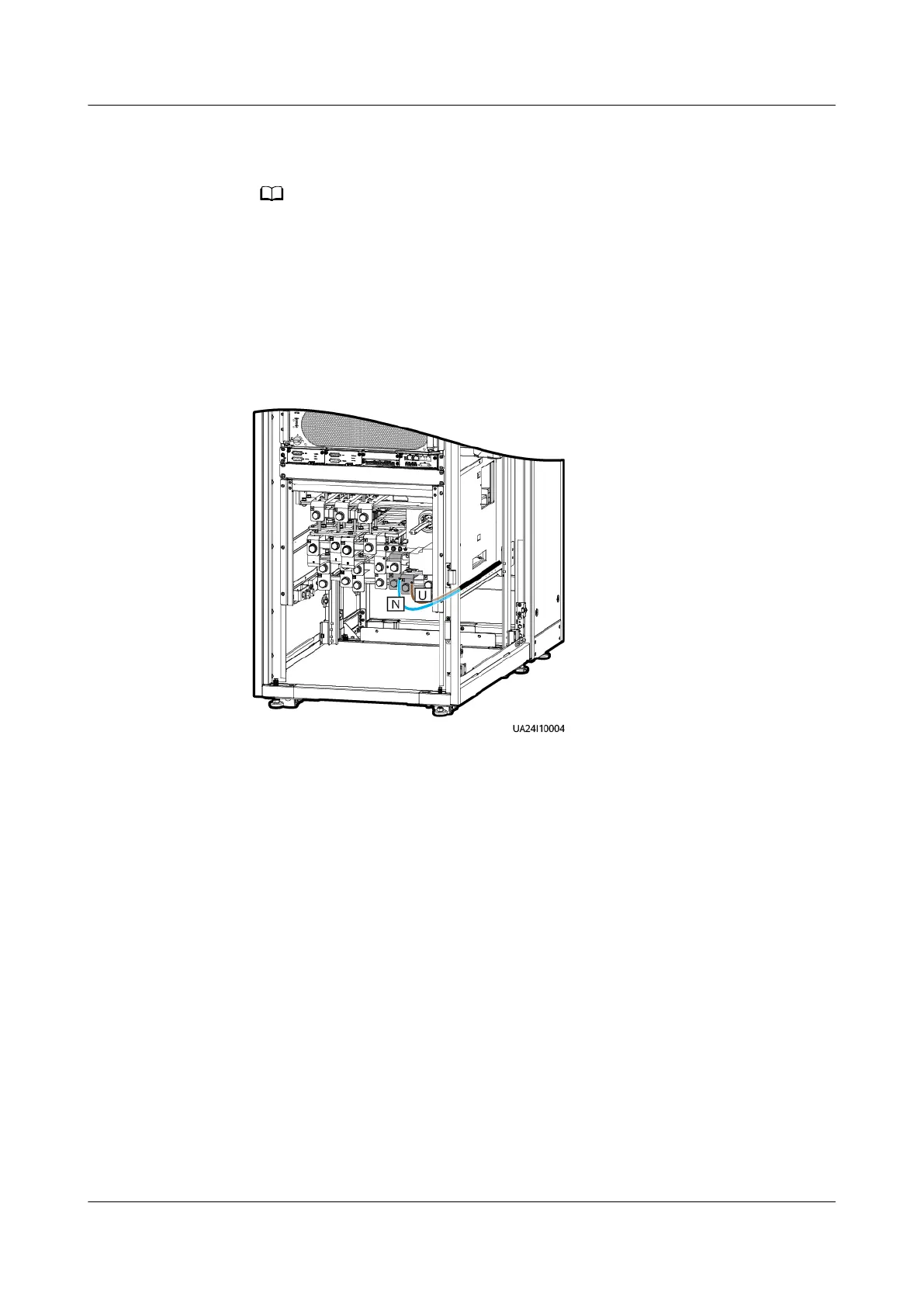

Figure 3-27 Connecting the power cable of the top
air-ow cabinet to the
UPS (300K-SM)
UPS5000 Top Air-ow Cabinet
User Manual 3 Product Installation
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 25
