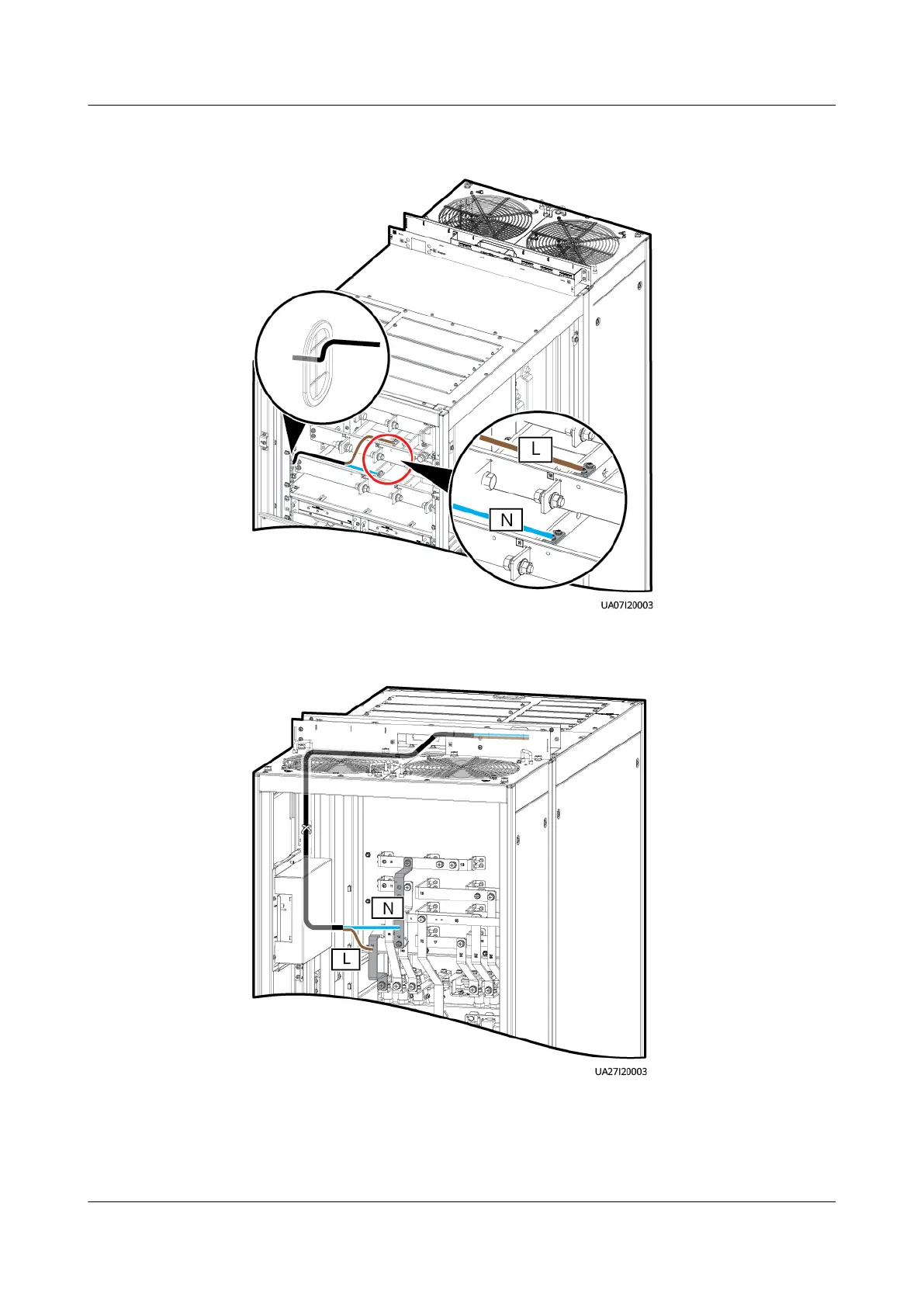

Figure 3-30 Connecting the power cable of the top air-ow cabinet to the
UPS (200K-FM, isolation protection)
Figure 3-31 Connecting the power cable of the top air-ow cabinet to the
UPS (120K-FM, isolation protection)
2. Connect the signal cable (04093521-01) of the top air-ow cabinet routed
out from the fan transit unit to the J23 and J29 ports on the UPS parallel
board.
UPS5000 Top Air-ow Cabinet
User Manual 3 Product Installation
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 27
