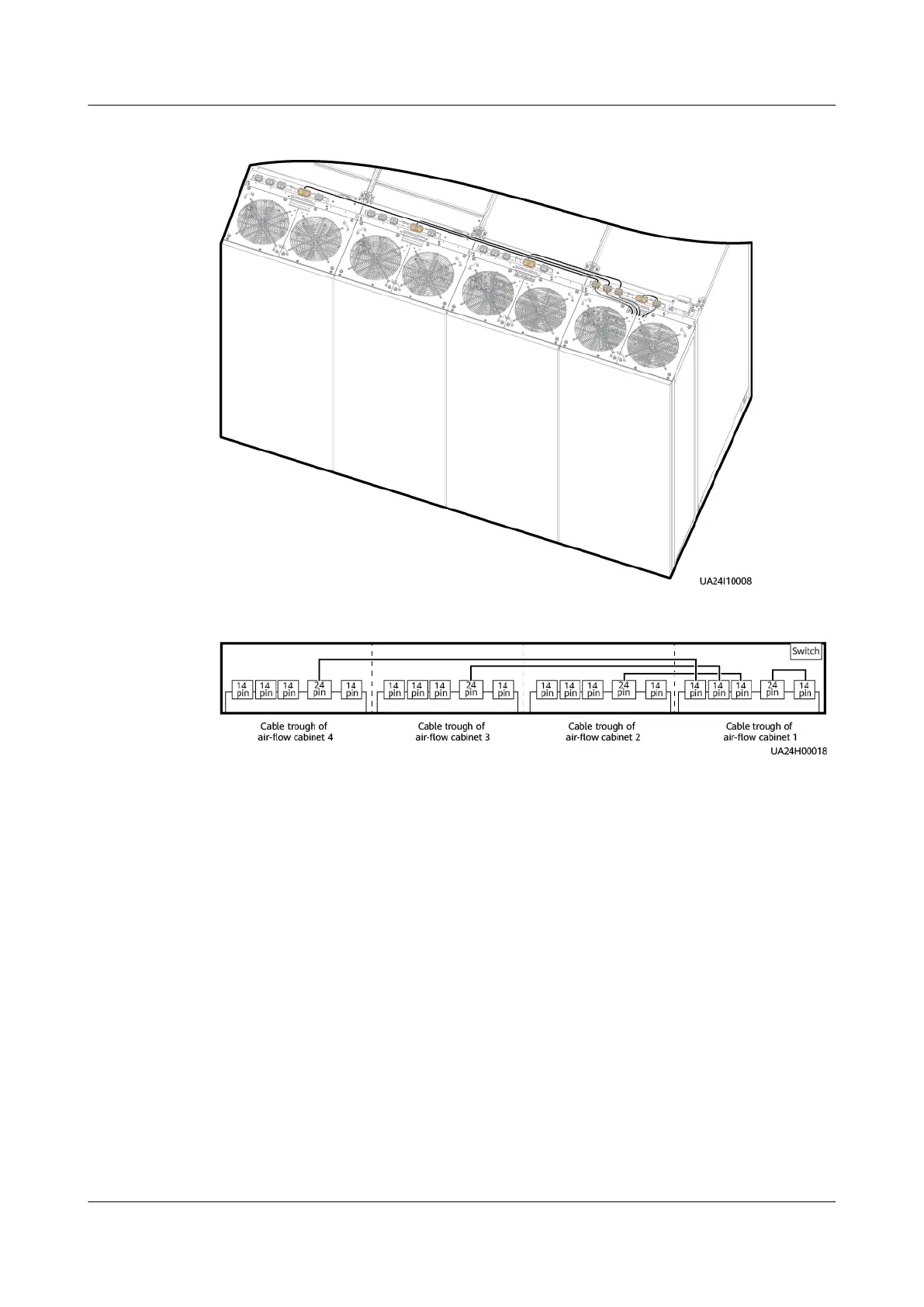

Figure 3-47 Connecting fan power cables (800K-FM)
Figure 3-48 Connecting fan power cables (800K-FM)
Step 6 Take out cable trough side panels from the tting bag and install them on the two
sides of the cable troughs of the top air-ow cabinets.
Step 7 Reinstall the fan interconnection terminals protective cover and rear cover or side
panels of the top
air-ow cabinets.
----End
UPS5000 Top Air-ow Cabinet
User Manual 3 Product Installation
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 38
