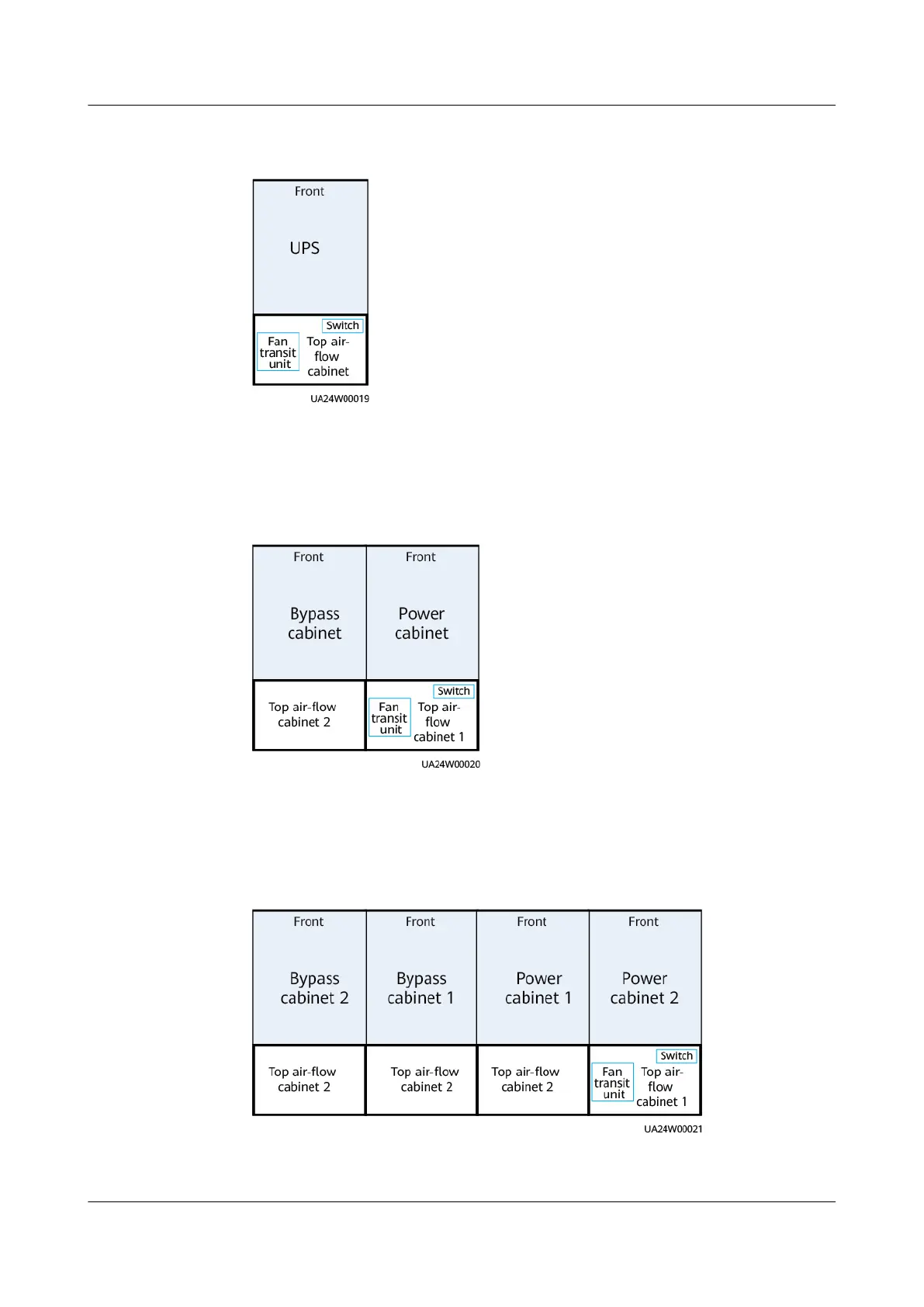

Figure 2-2 Installation position of the top air-ow cabinet for a single-cabinet
UPS
● Dual-cabinet UPS: The UPS has one power cabinet and one bypass cabinet.
The following gure shows the installation positions for the top air-ow
cabinets.
Figure 2-3 Installation positions of the top air-ow cabinets for a dual-
cabinet UPS
● Four-cabinet UPS: The UPS has two power cabinets and two bypass cabinets.
The following gure shows the installation positions for the top air-ow
cabinets.
Figure 2-4 Installation positions of the top air-ow cabinets for a four-cabinet
UPS
UPS5000 Top Air-ow Cabinet
User Manual 2 Product Overview
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 3
