2624 & 2630 Series Hydraulic Installation Tools (HK1052) Alcoa Fastening Systems & Rings
speCIfICatIons
POWER SOURCE:
Huck POWERIG
®
Hydraulic Unit
HOSE KITS:
Use only genuine HUCK Hose Kits rated @
10,000 psi (689.5 BAR) working pressure.
MAX OPERATING TEMP:
125° F (51.7° C)
MAX FLOW RATE:
2 gpm (7.6 l/m)
MAX PULL PRESSURE:
7,400 psi (510 BAR)
HYDRAULIC FLUID:
Hydraulic uid shall meet DEXRON
®
III, DEXRON VI, MERCON
®
, Allison C-4 or equivalent Automac Transmission Fluid (ATF)
specicaons. Fire-resistant uid may be used if it is an ester-based uid such as Quintolubric
®
HFD or equivalent. Water-based
uid shall NOT be used as serious damage to equipment will occur.
MAX RETURN PRESSURE:
• 2624 series: 3,200 psi (221 BAR)
• 2630 series: 2,600 psi (180 BAR)
PULL CAPACITY:
• 2624 series: 30,356 lbs @ 6,500 psi (135.03 kN @ 448 BAR)
• 2630 series: 48,614 lbs @ 6,500 psi (216.2 @ 448 BAR)
STROKE:
• 2624 series: 1.687 in. (4.28 cm)
• 2630 series: 1.906 in. (4.84 cm)
WEIGHT:
• 2624, 2624-15: 17.5 lbs (7.94 kg)
• 2624HS, 2624-PT, 2624PTD: 24.0 lbs (10.9 kg)
• 2630, 2630RR: 22.43 lbs (10.17 kg)

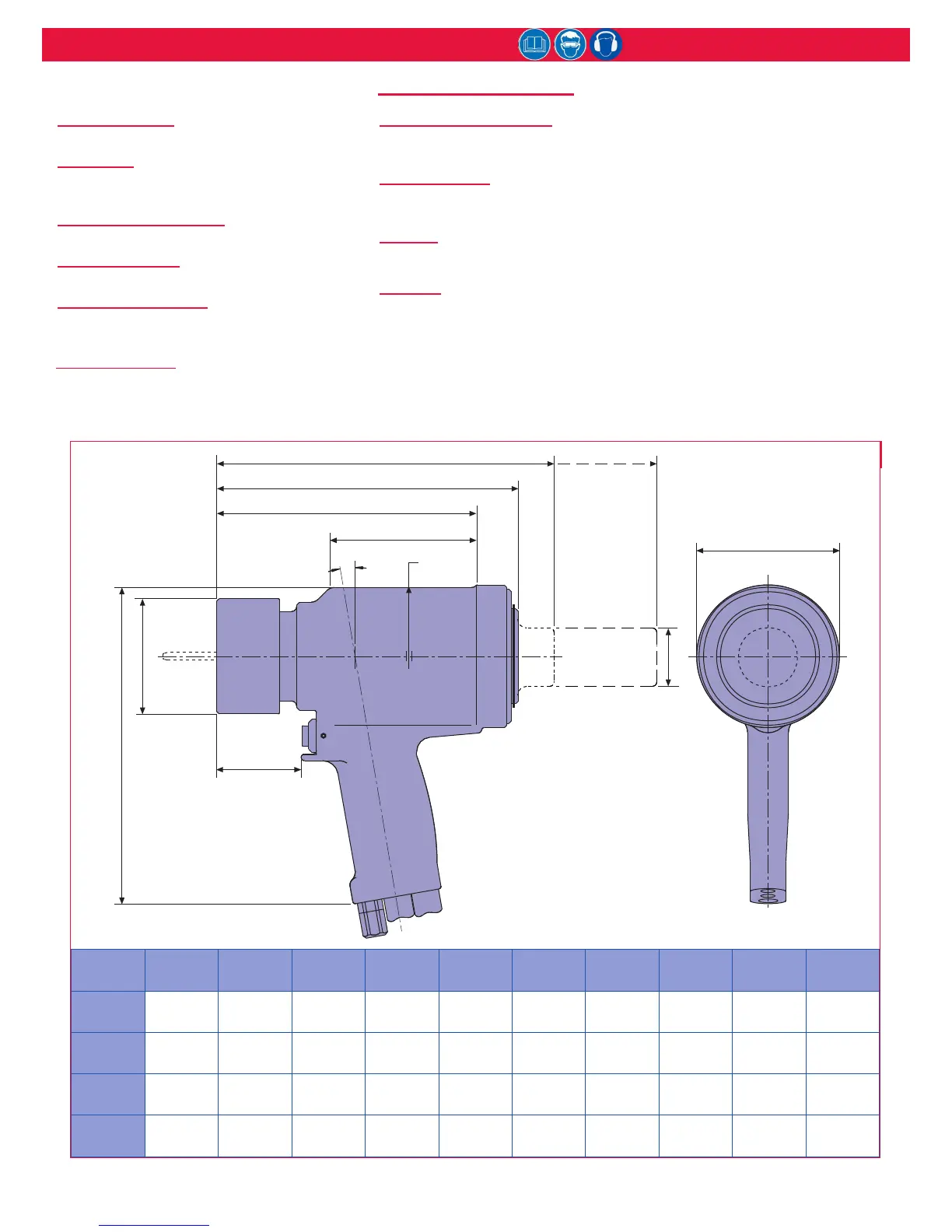

fIgure 1
øA
G
D
B
2624 & 2630
models
F
H
J
2624HS
2624PT
models
E
2624PTD
model
PTD
R
øC
10°
K
TOOL
A
inch (cm)
B
inch (cm)
C
inch (cm)
D
inch (cm)
E
inch (cm)
F
inch (cm)
G
inch (cm)
H
inch (cm)
J
inch (cm)
K
inch (cm)
2624
2624-15
3.4
(8.8)
7.7 (19.6)
2.8
(7.1)
2.0
(5.2)
n/a
7.3
(18.7)
6.3
(16.1)
3.5
(9.1)
1.7
(4.3)
n/a
2624HS
2624-PT
3.4
(8.8)
7.7 (19.6)
2.8
(7.1)
2.0
(5.2)
8.5
(21.6)
7.3
(18.6)
6.3
(16.1)
3.5
(9.1)
1.7
(4.3)
1.2
(3.2)
2624PTD
3.4
(8.8)
7.7 (19.6)
2.8
(7.1)
2.0
(5.2)
11.0
(28.1)
7.3
(18.6)
6.3
(16.1)
3.5
(9.1)
1.7
(4.3)
1.2
(3.2)
2630
2630RR
4.9
(12.4)
8.6 (21.9)
3.6
(9.0)
2.2
(5.6)
n/a
7.9
(20.1)
~ 6.4
(17.4)
3.9
(9.9)
2.1
(5.5)
n/a
