Huck 2624HS - H Ydraulic H Ose a Ssembly D Rawing; Its Ccessories

15

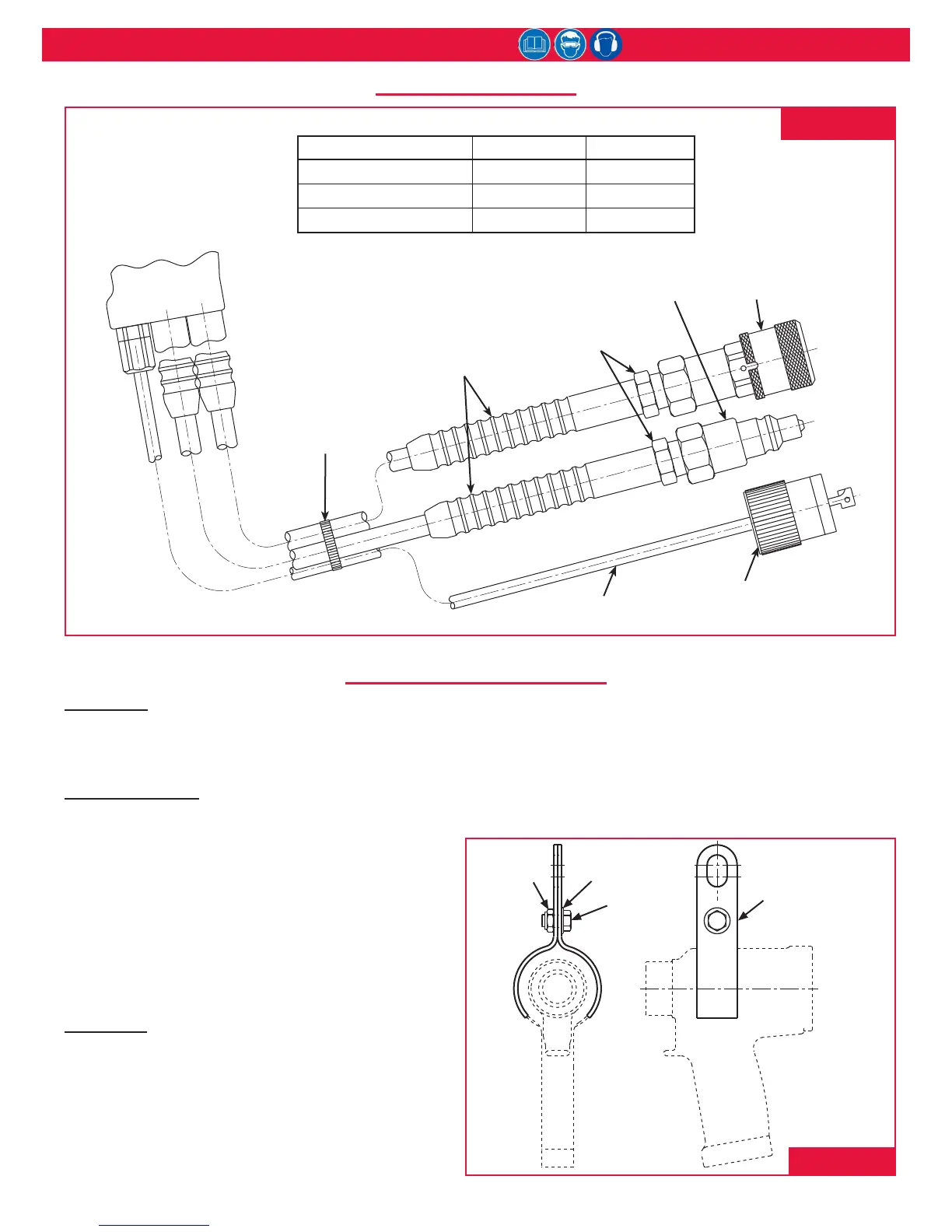

2624 & 2630 Series Hydraulic Installation Tools (HK1052) Alcoa Fastening Systems & Rings
Hose asseMbly
110686
Male Cord
Connector
502298
Reducing Bushing
110438
Male Connector
PULL Pressure side
110439
Female Connector
RETURN Pressure side
Hose Assembly
(SEE TABLE)
Control Cord
(SEE TABLE)
505839
Cable Tie
HOSE ASSEMBLY
TOOL MODEL CONTROL CORD
123336
126107-2 (16 .)
2624-15, 2624HS, 2624-PT
2624PTD
123337-1
126107-1 (2 .)
2624, 2630, 2630RR
126107-1 (2 .) 131043
fIgure 13
KIts & aCCessorIes
servIce KIts
2624, 2624-15 - 2624KIT
2624HS, 2624-PT - 2624HSKIT
2630, 2630RR - 2630KIT
asseMbly tool KIts
2624 & 2624HS Assembly Tool Kit - 123110-9
Includes: (Fig. 3 & 6)
Spacer - 123112-7
Piston Assembly Tool - 123111-7
Piston Insertion Tool - 121694-2624
2630 Assembly Tool Kit - 123110-13
Includes: (Fig. 3 & 6)
Spacer - 123112-9
Piston Assembly Tool - 123111-9
Piston Insertion Tool - 121694-2630
accessorIes
Ejector Gland Hex Key - 122048
2624, 2624-15
End Cap Hex Key - 126981
Remote Trigger (All Models) - 123381-24
Suspension Brackets
Now available are Suspension Brackets which enable
a user to install fasteners with increased ergonomic
exibility. Each Suspension Bracket Assembly contains
the Bracket and Hardware shown below.
2624 series - 127400-2624
2630 series - 127400-2630
Washer
(Tool)
Suspension
Bracket (2)
Hex Head
Cap Screw
Locknut
fIgure 14
