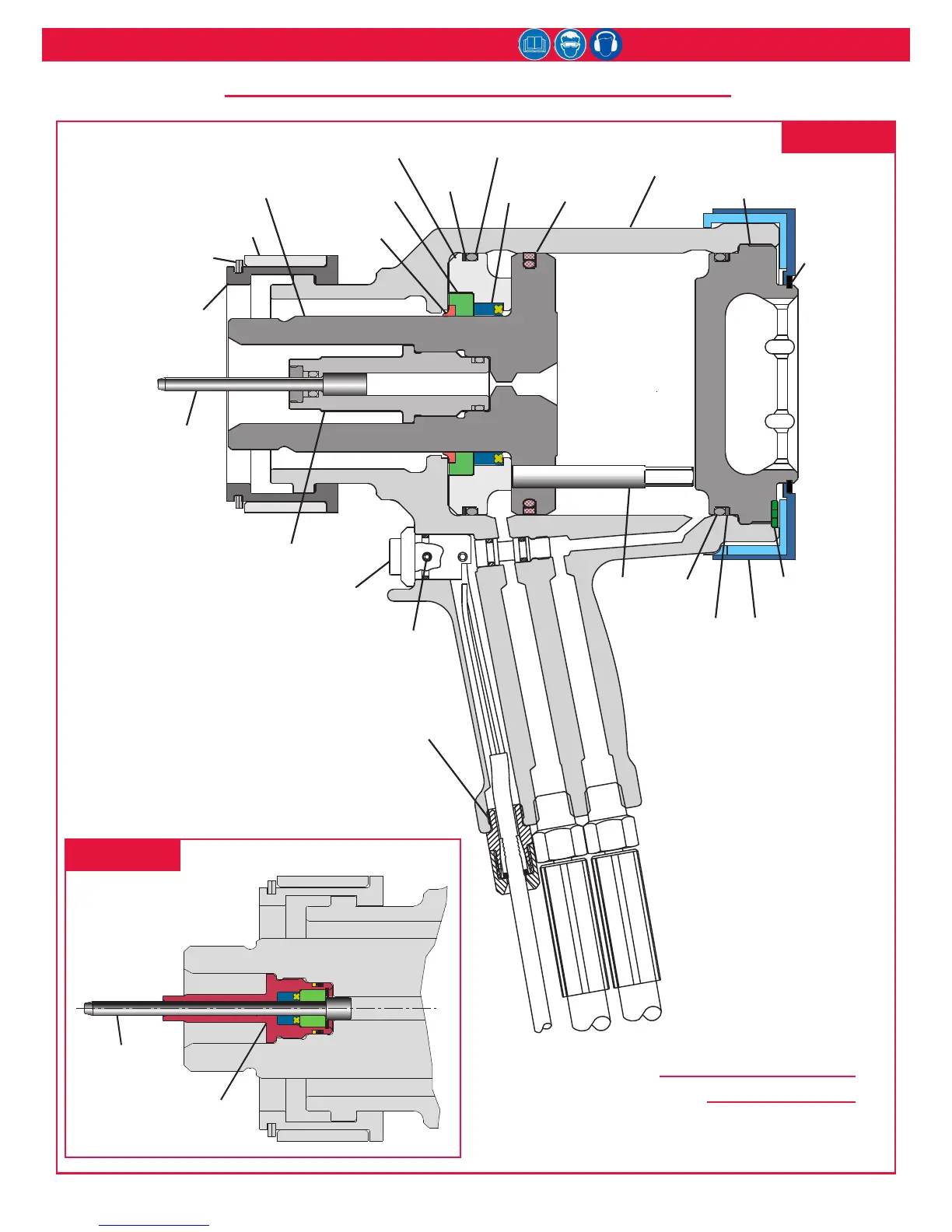

asseMbly drawIng 2630 & 2630rr
505344
Strain Relief
501731
Setscrew
122769-4
GLYD Ring
126959 Front Gland
506171
Polyseal
500869 O-Ring
501164
Back-up
Ring
126962
Wiper Housing
506174
Wiper Seal
126966
Cylinder Assembly
126958 Piston
(2630)
127274 Piston (2630RR)
101395
Retaining Sleeve
101394
Split Ring
128054 End Cap
506838
Retaining
Ring
501533
Retaining Ring
120361 Trigger
Switch Assembly
122709-1
Ejector
(2630)
123357 Ejector
Cartridge Assembly (2630)
122764
Locking Disk
126960
Dump
Valve
501164
Back-up
Ring
500869
O-Ring
130538
Clamshell
Retainer Assy
122998 Ejector
Gland Assembly
122705-1
Pintail Ejector
fIgure 11
fIgure 12
Front End of 2630
Front End of 2630RR
See Figure 13 for Hose
and Cord details.
