Huck 3585 - Assembly Drawing 3585

13
3585 Series Hydraulic Installation Tools (HK1080) Howmet Fastening Systems

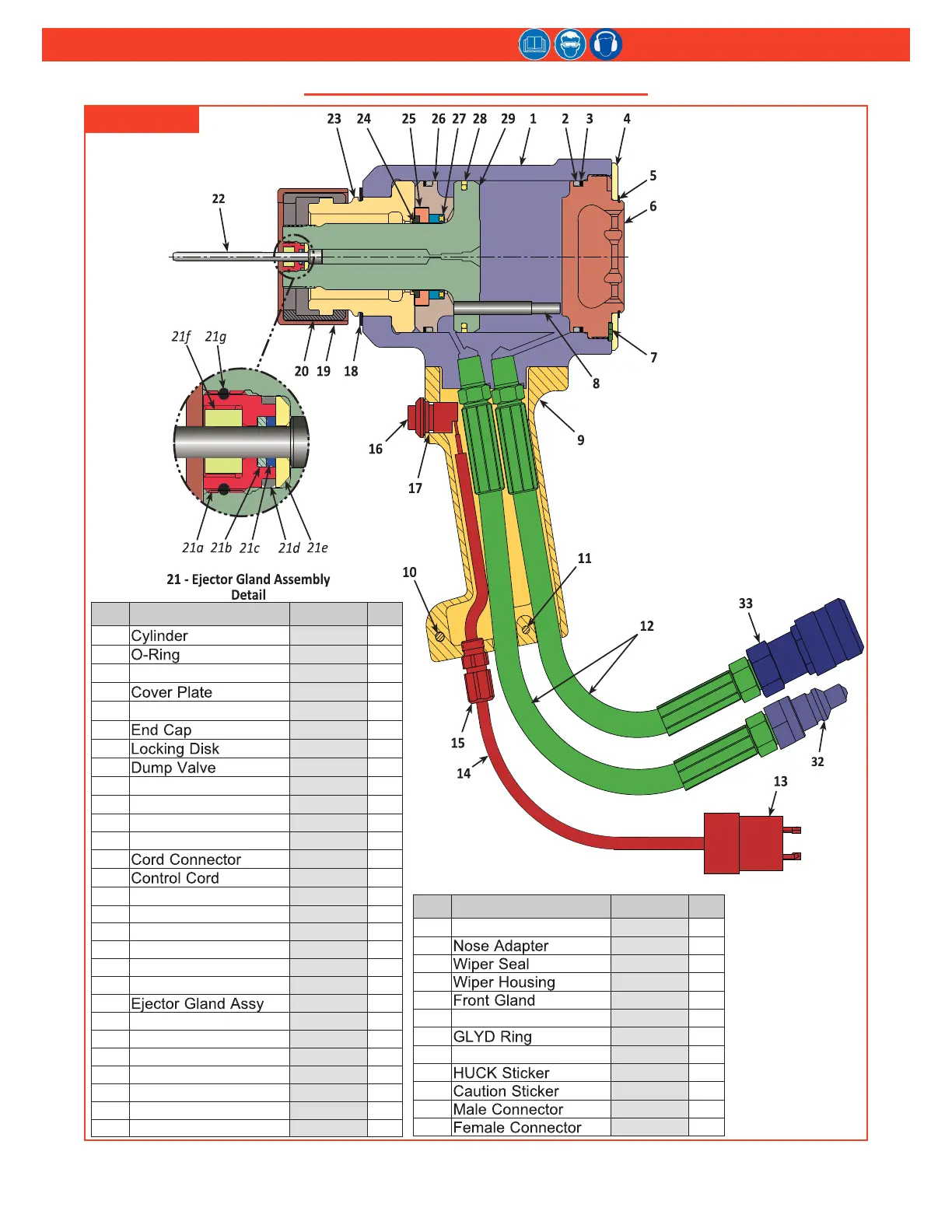

ASSEMBLY DRAWING 3585
Item Description P/N Qty.
1
128673 1
2
504639 2
3 Back-up Ring 501160 2
4
129196 1
5 Retaining Ring 507418 1
6
129197 1
7
129198 1
8
126198 1
9 Handle 129789 1
10 #6 Screw 500051 1
11 #10 Screw 500102 5
12 Hose 126107-6 2
13
110686 1
14
128705 1
15 Strain Relief 505344 1
16 Trigger Switch Assy 120361 1
17 Set Screw 501731 1
18 Retaining Ring 501030 1
19 Sleeve 100248 1
20 Split Ring 100247 1
21
120653 1
21a Gland 122047 1
21b Back-up Ring 501080 1
21c QUAD Ring 501411 1
21d O-Ring 500779 1
21e Ejector Washer 120652 1
21f Ejector Rod Wiper 122742 1
21g O-Ring 500779 1
Item Description P/N Qty.
22 Pintail Ejector 128742 1
23
128675 1
24
506001 1
25
125683 1
26
128674 1
27 Polyseal 507417 1
28
122769-3 1
29 Piston 128703 1
30
590247 1
31
590189-2 1
32
110438 1
33
110439 1
FIGURE 3
