Huck 3585 - Assembly Drawing 3585 PT

14
3585 Series Hydraulic Installation Tools (HK1080) Howmet Fastening Systems

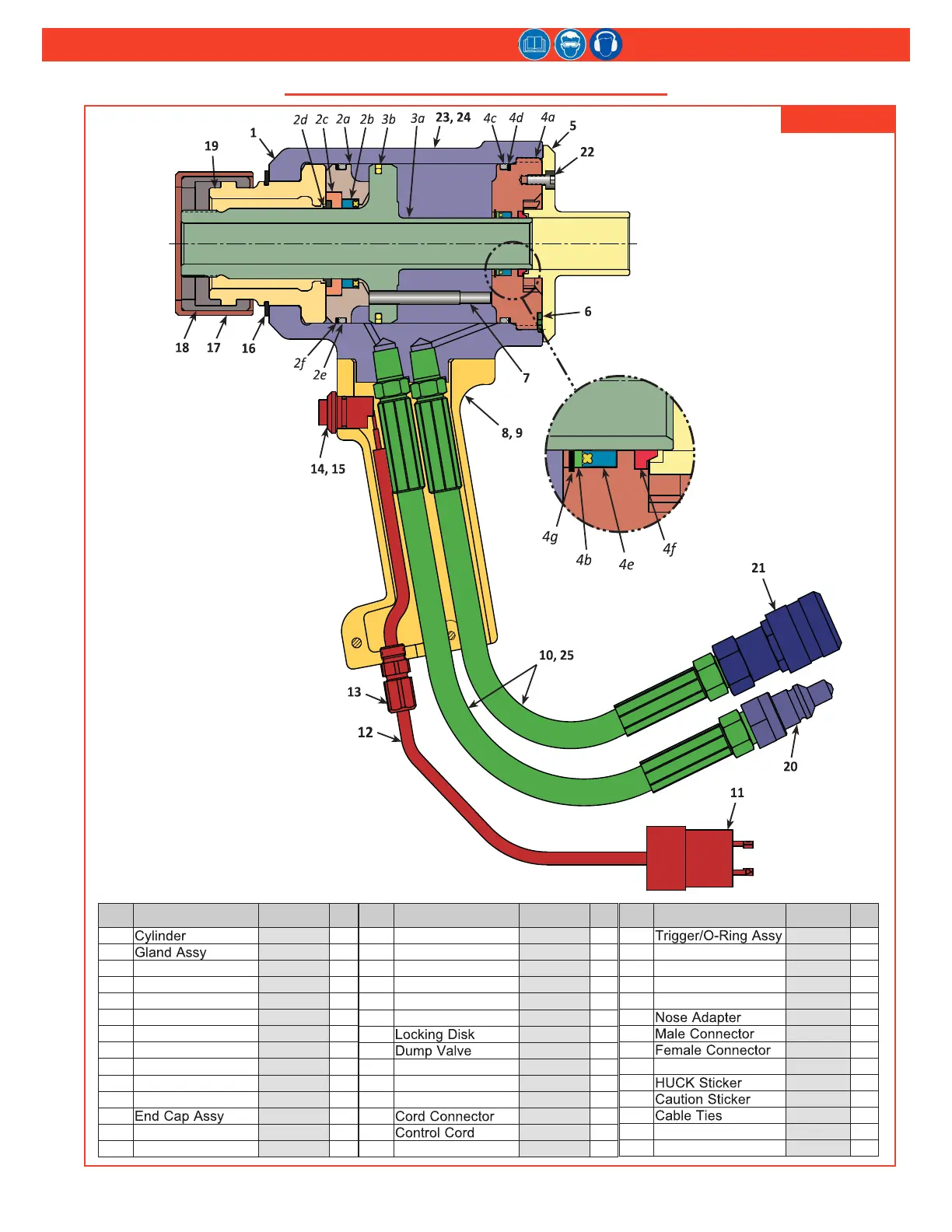

ASSEMBLY DRAWING 3585PT
FIGURE 4
Item Description P/N Qty
14
120631 1
15 Setscrew 501731 1
16 Retaining Ring 501030 1
17 Sleeve 100248 1
18 Split Ring 100247 1
19
128675 1
20
110438 1
21
110439 1
22 Screw 500060 3
23
590247 1
24
590189-2 1
25
505839 10
Item Description P/N Qty
4c O-Ring 504639 1
4d Back-up Ring 501160 1
4e Polyseal 507324 1
4f Wiper Seal 508443 1
4g Retaining Ring 508444 1
5 Retainer 129795 1
6
129198 1
7
129820 1
8 Handle 129789 1
9 Socket Hd Screw 500102 4
10 Hose 126107-2 2
11
110686 1
12
129839 1
13 Strain Relief 505344 1
Item Description P/N Qty
1
128673 1
2
128776 1
2a Front Gland 128674 1
2b Polyseal 507417 1
2c Wiper Housing 125683 1
2d Wiper 506001 1
2e O-Ring 500865 1
2f Back-up Ring 501160 1
3 Piston Assy 129833 1
3a Piston 129792 1
3b GLYD Ring 122769-3 1
4
129832 1
4a End Cap 129791 1
4b Spacer 129796 1
