FAQ’S - RIGGER DIMENSIONS
What are the dimensions for my rigger? How do I measure them?
All riggers produced after 2002 have a stamping on them designating the dimension(s).
SWEEP

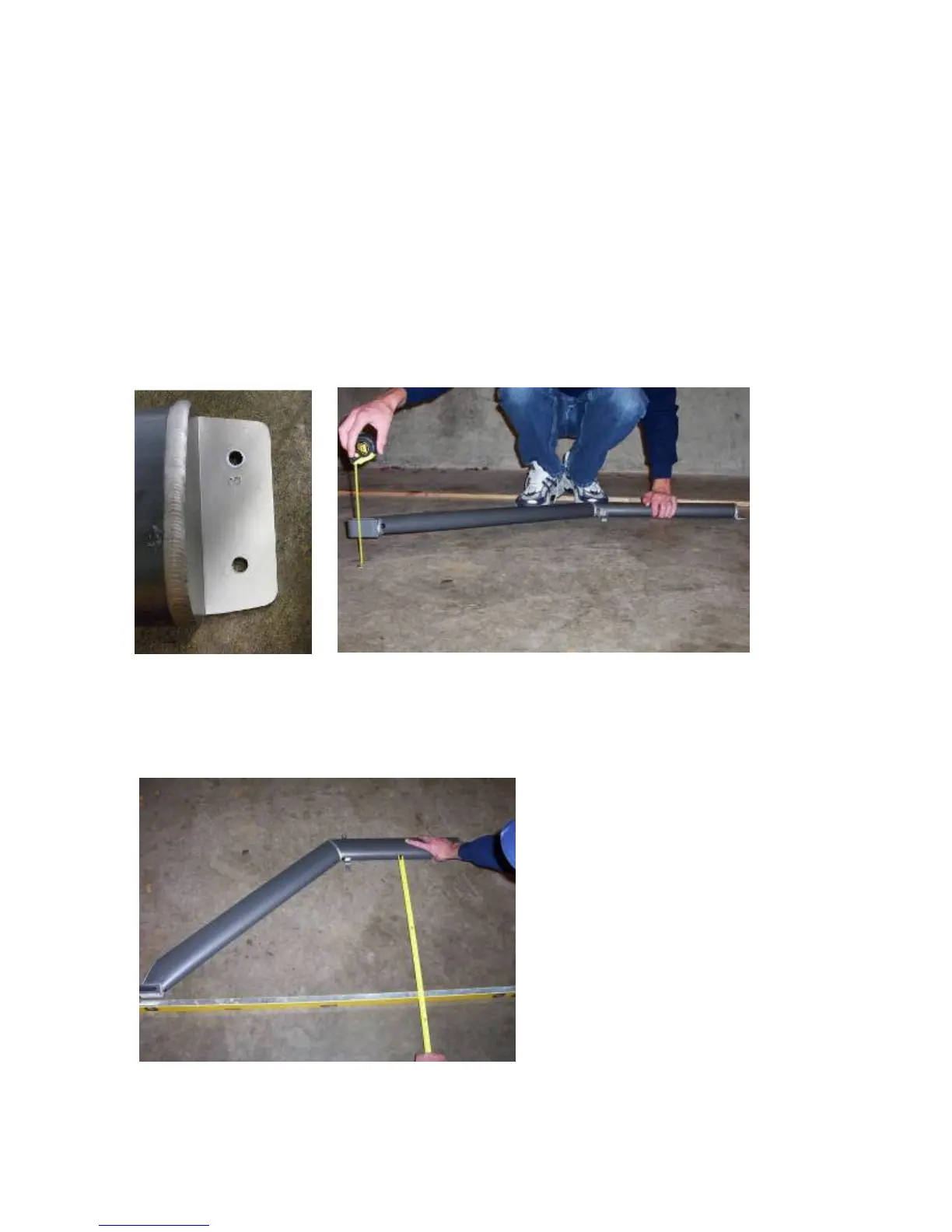

Sweep riggers have one number stamped on the sweep angle mount. This number is the height
in centimeters from the foot to the top of the pin block (see stamping below left). The best
way to measure the rigger off the boat is to find a level floor, press down in between the boat
mounts, and measure from the floor up to the top of the pin block (see below right).
The depth on sweep riggers is pretty standard. To measure use a straight edge that runs
parallel to the cross piece of the rigger, or perpendicular to the centerline of the boat, and
lines up with the bow side of the pin block. Measure from the rigger cross piece to the straight
edge. (See photo below) This measurement is in inches.
