PARTS

Please use this section to help identify the parts referred to in this manual.

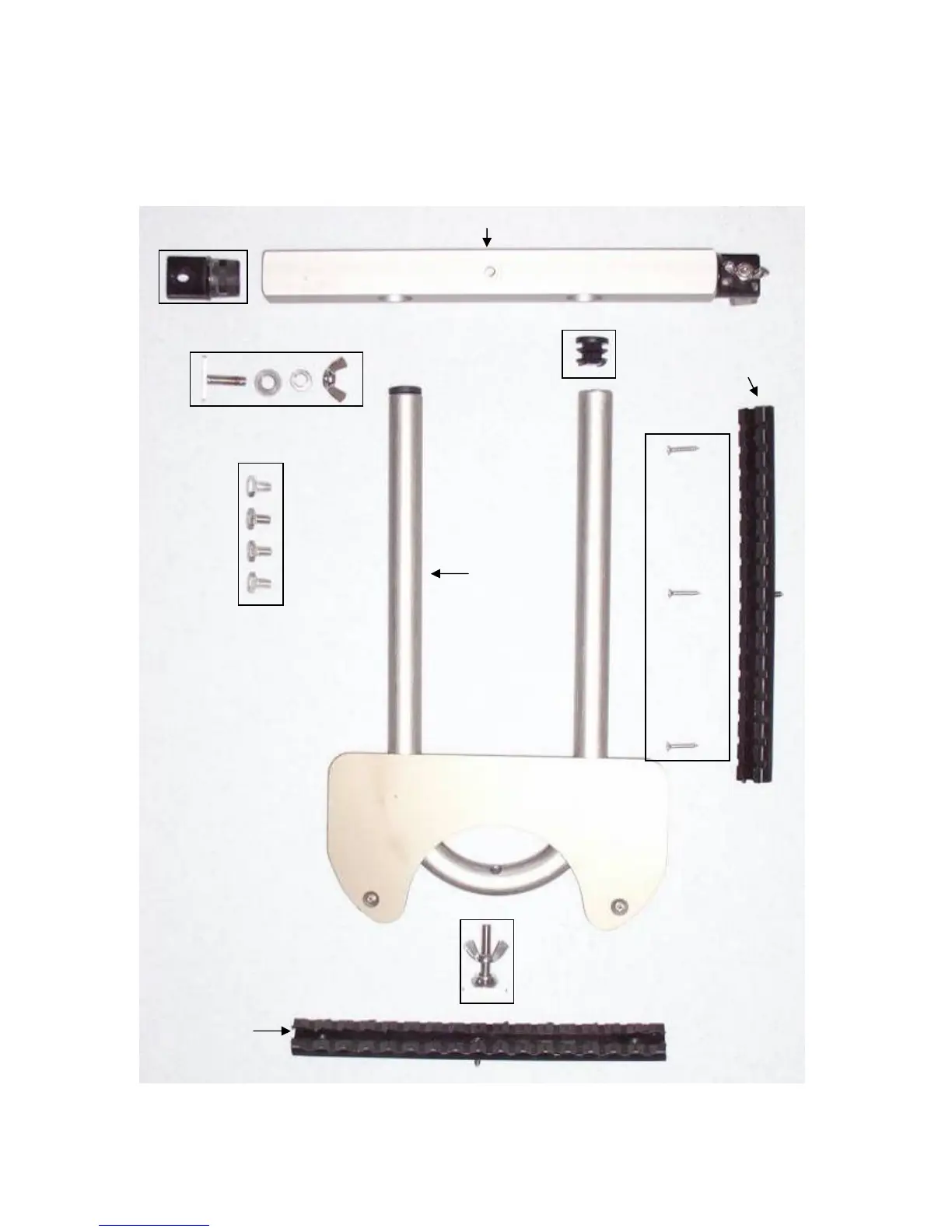

Foot assembly (without shoes and shoe Plate)

Foot Stretcher

End Piece

Toe Bar

Notched

Channel

(side)

Hairpin

Notched

Channel

(Centre)

¼” x ½”

Bolts

(they thread

in the back

of the toe

bar and

shoe plate to

maintain

angle and

height)

Hairpin Plug

Channel

Screws

1” Stretcher Bolt (side), Flat

Washer, Lock Washer and Wing

1 ½” Stretcher Bolt (centre),

Curved Washer, Lock

Washer and Wing Nut
