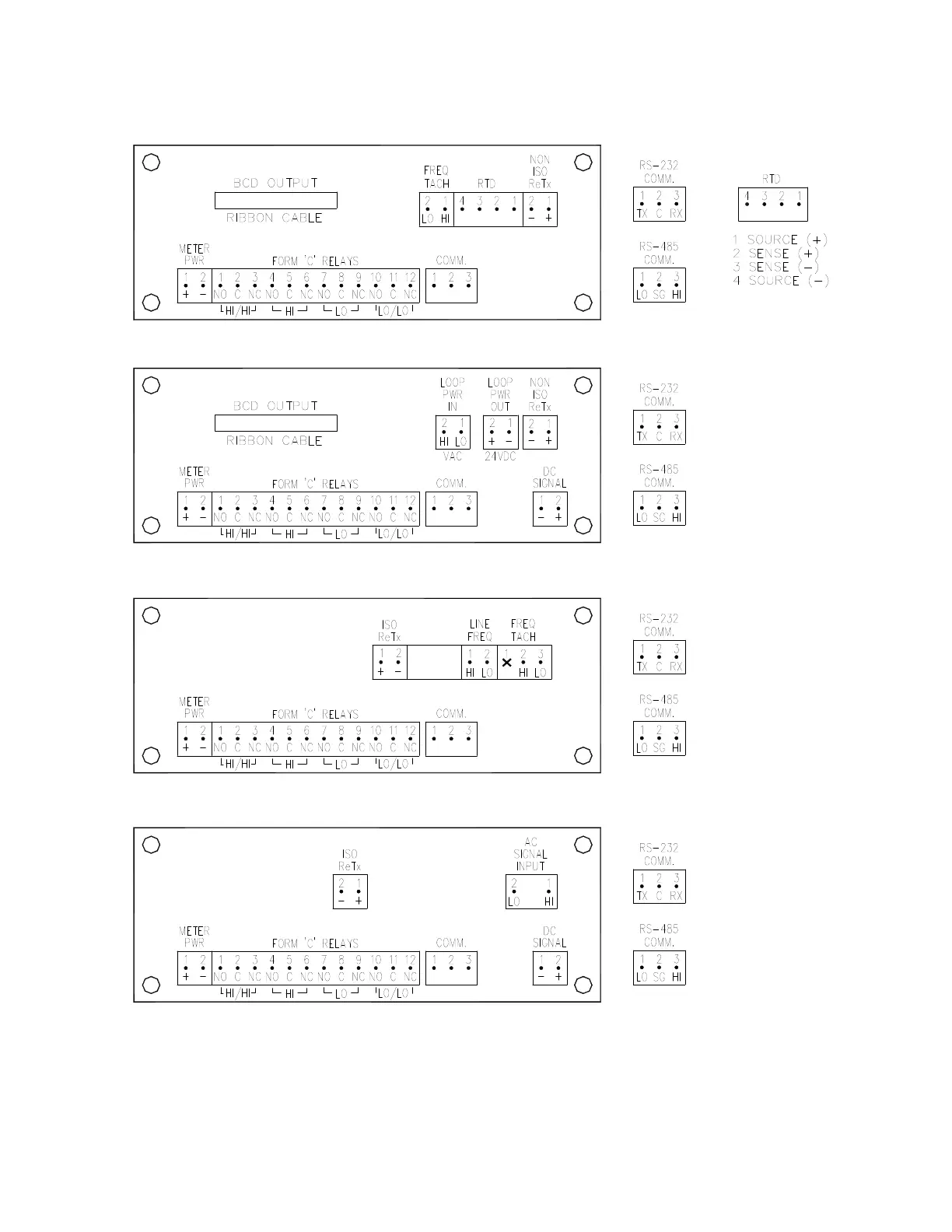

4.5 Terminal Assignments - BG-252TC, BH-252TC, BD-101TC, BV-5ATC & PC-101TC
Frequency Tachometer or 3 and 4 Wire RTD Signal Inputs (OP1)
DC Volt, Millivolt, Amp or Milliamp Signal Inputs (OP3)
Line Frequency or Frequency Tachometer Signal Inputs (OP4)
AC or DC Volt, Milliamp, Amp, Milliamp or Line Frequency Signal Inputs (OP6)
39
