41

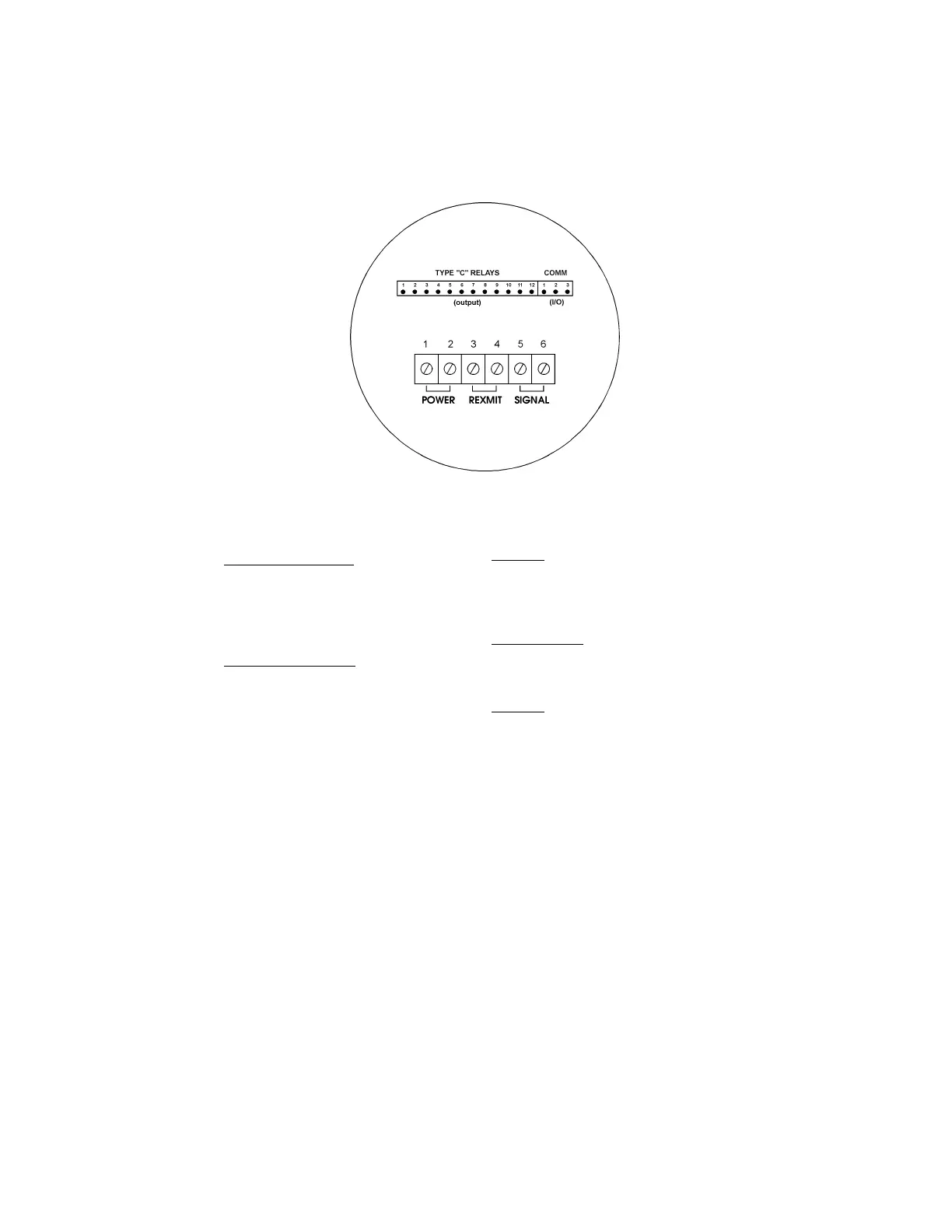

4.6 Terminal Connections - BG-241TC, BG-251TC, BG-261TC and BG-281TC
AC Amps and AC Volts Only
COMMUNICATIONS
(1) Receive
(2) Common
(3) Transmit
RELAY CONTACTS*
(1) Hi/Hi N.O.
(2) Hi/Hi C.
(3) Hi/Hi N.C.
(4) Hi N.O.
(5) Hi C.
(6) Hi N.C.
(7) Lo N.O.
(8) Lo C.
(9) Lo N.C.
(10) Lo/Lo N.O.
(11) Lo/Lo C.
(12) Lo/Lo N.C.
* N.O. = Normally Open
N.C. = Normally Closed
C. = Common
POWER
(1) Low Side
(2) High Side
RETRANSMIT
(3) Output (-)
(4) Output (+)
SIGNAL
(5) Input Low
(6) Input High
