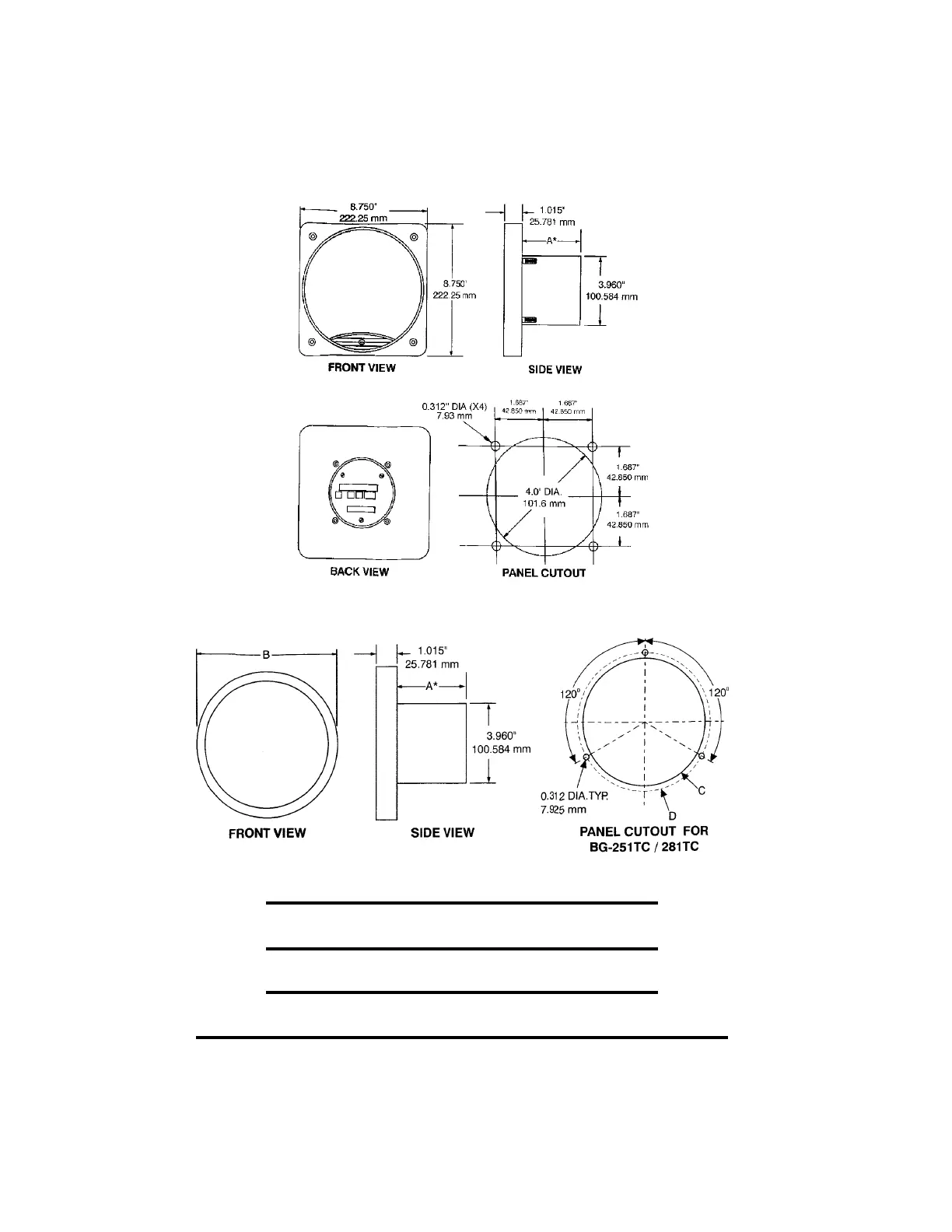

4.3 BG261TC Physical Dimensions

4.4 BG251TC and BG281TC Physical Dimensions

Dim B

Inches (mm)

METER

TYPE

BG-251TC

7.562

(185.27)

Dim C

Inches (mm)

Dim D

Inches (mm)

BG-281TC

2.055-3.275 R

(52.20-83.19)

3.440 R

(87.38)

10.062

(246.52)

2.055-4.455 R

(52.20-113.16)

4.754 R

(120.75)
