Storing a Flat or Spare Tire and Tools
Use the art and text following to help you store the flat or
spare tire and tools back in their proper spot when
you are done.
Store the flat or spare tire back inside the vehicle on the
spare tire mount.

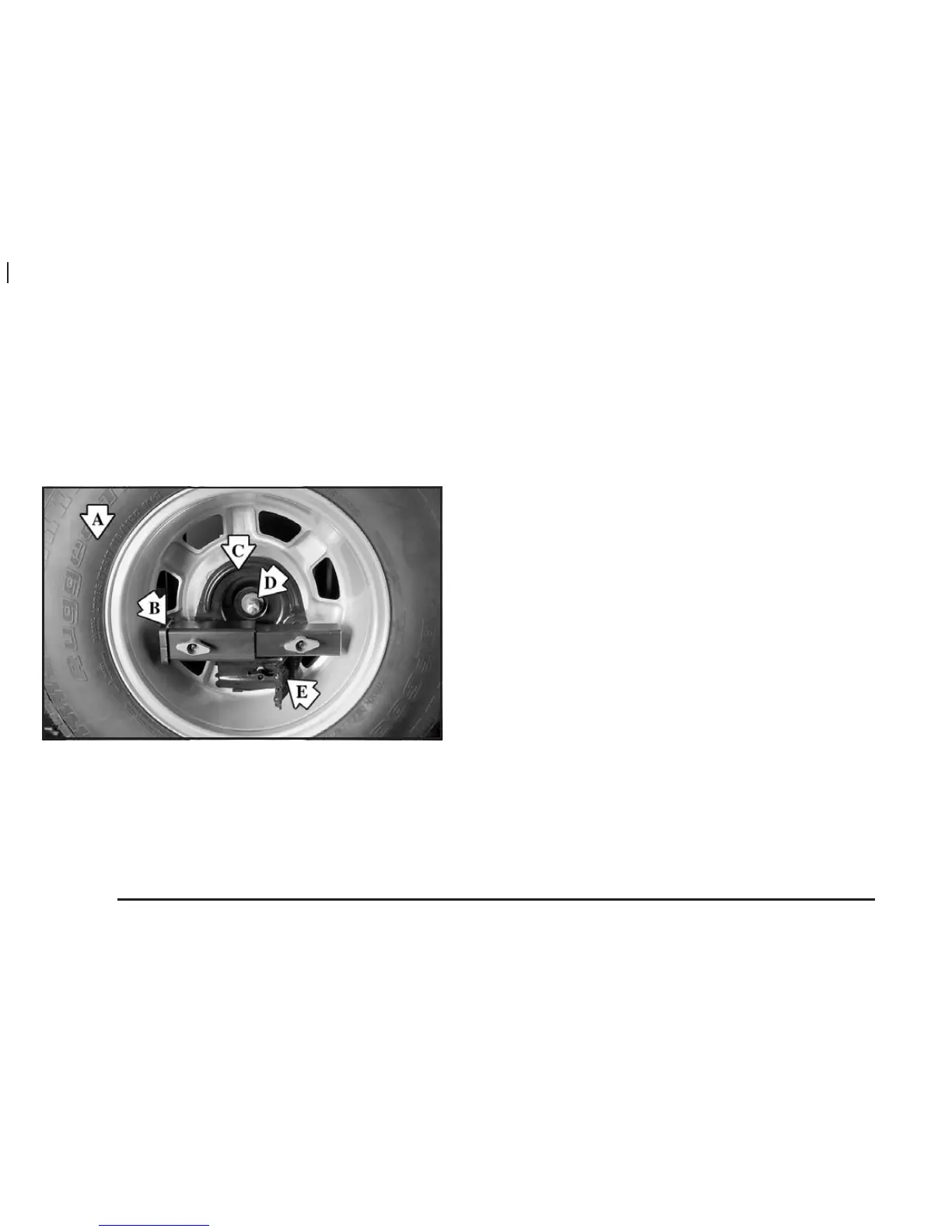

A. Spare or Flat Tire
B. Receiver Extension
(If Equipped)
C. Tire Retainer Plate
D. Nut
E. Wheel Blocks
1. Slide the flat or spare tire (A) onto the tire carrier.
2. Slide the tire retainer plate (C) into the wheel
opening. Be sure that the stud attached to the
tire carrier passes through the hole in the tire
retainer plate.
3. Tighten the nut (D) by hand until the tire retainer
plate (C) is snug against the wheel.
5-90
