Hunter 23902 - Attaching the Lower Switch Housing

13
42776-01•04/29/08•HunterFanCompany
Lower Switch
Housing
Housing
AssemblyScrew
Plug
Connector
Detail

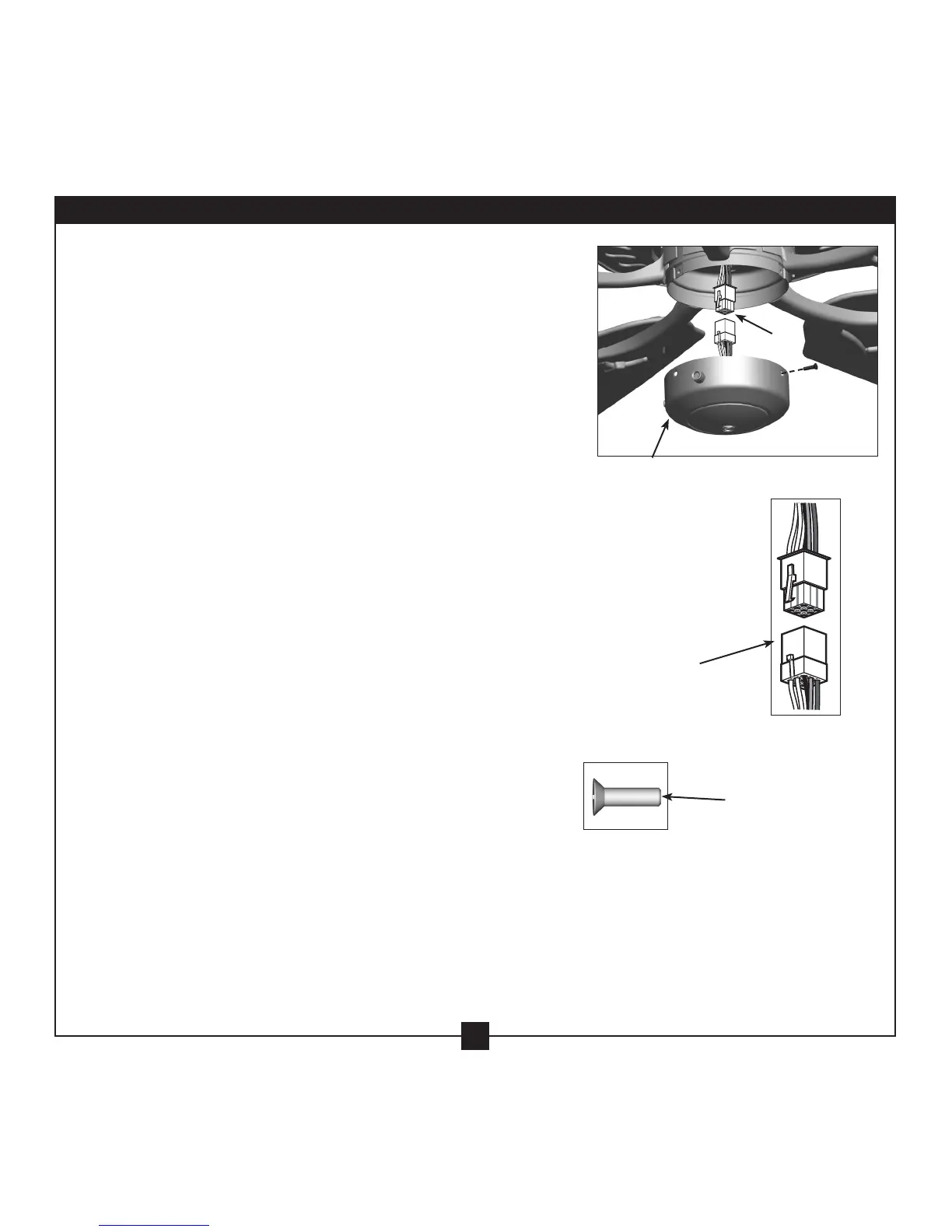

8-6. Toattachthelowerswitchhousing,connecttheupperplug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-7. Placethelowerswitchhousingassemblyovertheupperswitch
housing.Alignthesidescrewholesintheupperandlowerswitch
housings.Attachthelowerswitchhousingtotheupperswitch
housing with three housing assembly screws.
8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Steps 8-6 – 8-7
Plug
Connector
