Hunter ceiling fan - Downrod

6
Hunter Fan Company 41936-01 • 11/18/05
7
41936-01 • 11/18/05 Hunter Fan Company
4 • Assembling and Hanging the Fan
Steps 4-5 – 4-6
Locking
Screw
Low Prole Washer
Step 4-7
U-shaped
Hole

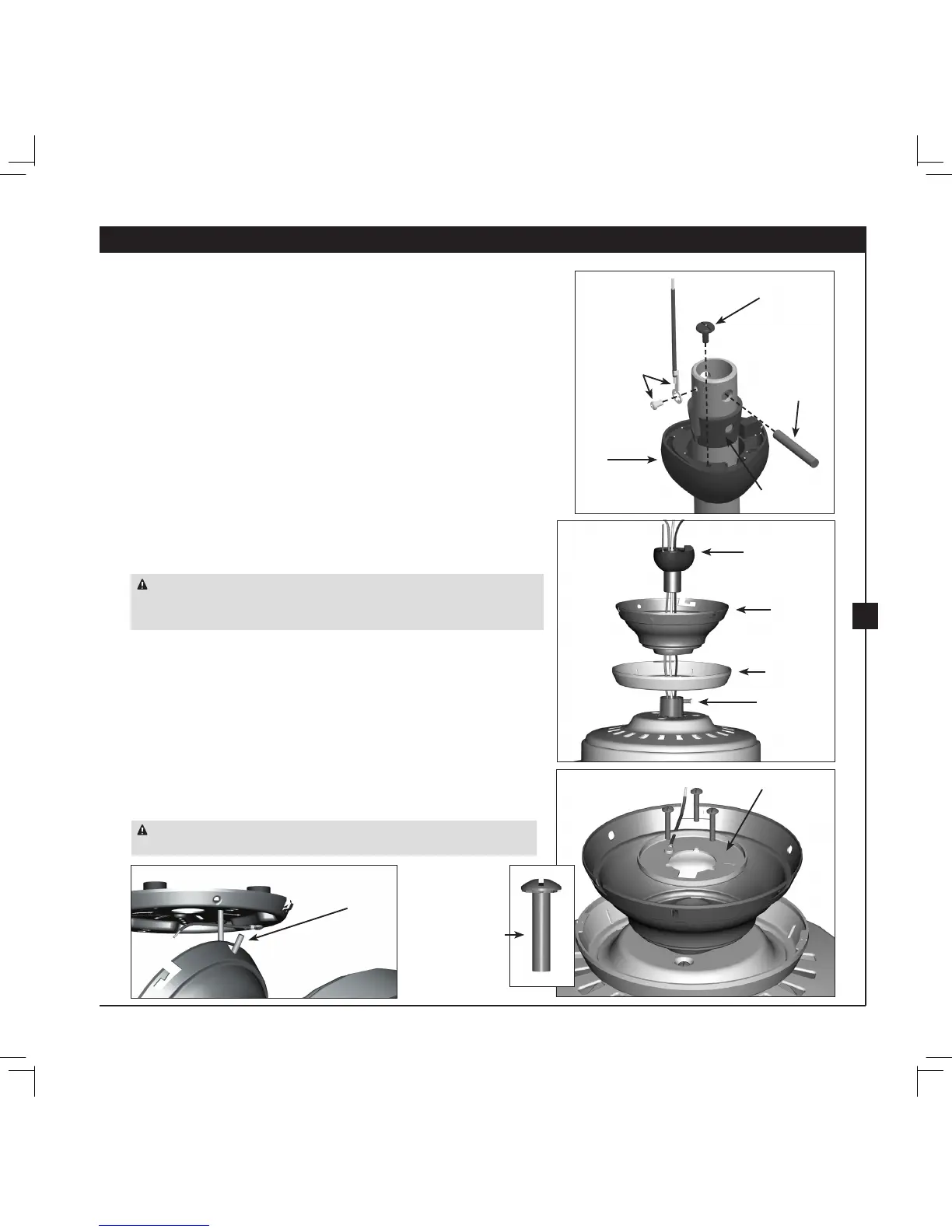

You can assemble your fan for standard mounting (steps 4-1 – 4-3) or
for low prole mounting (steps 4-4 – 4-6).
4-1. If your ceiling is 9’ or higher, remove the 3” downrod pipe from
the black ball. Remove the screw and push the pipe up through
the ball. Remove the cross bar. read the cross bar through the
longer (6”) pipe and insert the pipe into the black ball. Tighten the
screw completely.
4-2. Insert the downrod through the canopy and canopy trim ring.
Feed the wires from the fan through the downrod on one side of
the pin in the ball.
4-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
Skip to Step 4-7.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
4-4. Remove the set screw from the adapter.
Note: For low prole mounting, the downrod is replaced with the
low prole washer. See Steps 4-4 – 4-6.
4-5. Place the low prole washer (lip up) into the canopy. Be sure the
green ground wire is pointing up toward the ceiling.
4-6. Align the holes in the washer with the holes in the adapter.
Assemble securely with three locking screws.
4-7. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 4-2 – 4-3
Downrod
Canopy
Canopy
Trim Ring
Set Screw
Ground Wire
and Screw
Pipe Ball Screw
Wedge
Pin
Ball
Step 4-1
