41936-01 • 11/18/05 Hunter Fan Company

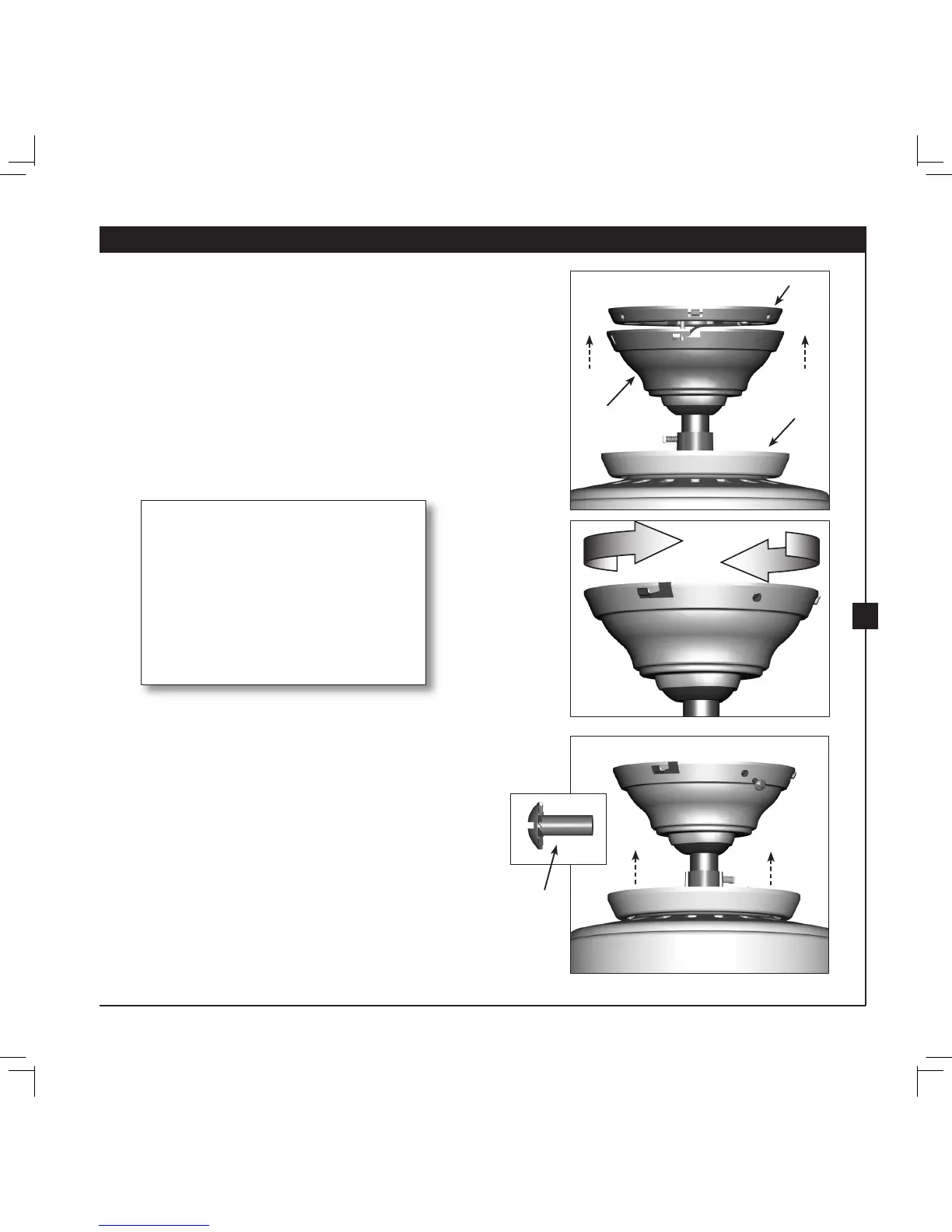

6 • Installing the Canopy and Canopy Trim Ring
6-1. Holding the canopy, raise the fan o the hook.
6-2. Align the slots in the canopy with the tabs on the ceiling plate.
6-3. Raise the canopy over the ceiling plate. Rotate the canopy
clockwise until the tabs on the ceiling plate totally engage with
the slots in the canopy.
6-4. Loosely assemble the three canopy screws into the canopy one at
a time. Once all three screws are in, tighten them.
6-5. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press rmly on opposite sides of the
ring towards the canopy. e tabs
will ex out releasing the trim ring
from the canopy.
Canopy
Screw
Step 6-2
Canopy Trim
Ring
Canopy
Ceiling Plate
Step 6-3
Steps 6-4 – 6-5
To Next Page
