41936-01 • 11/18/05 Hunter Fan Company

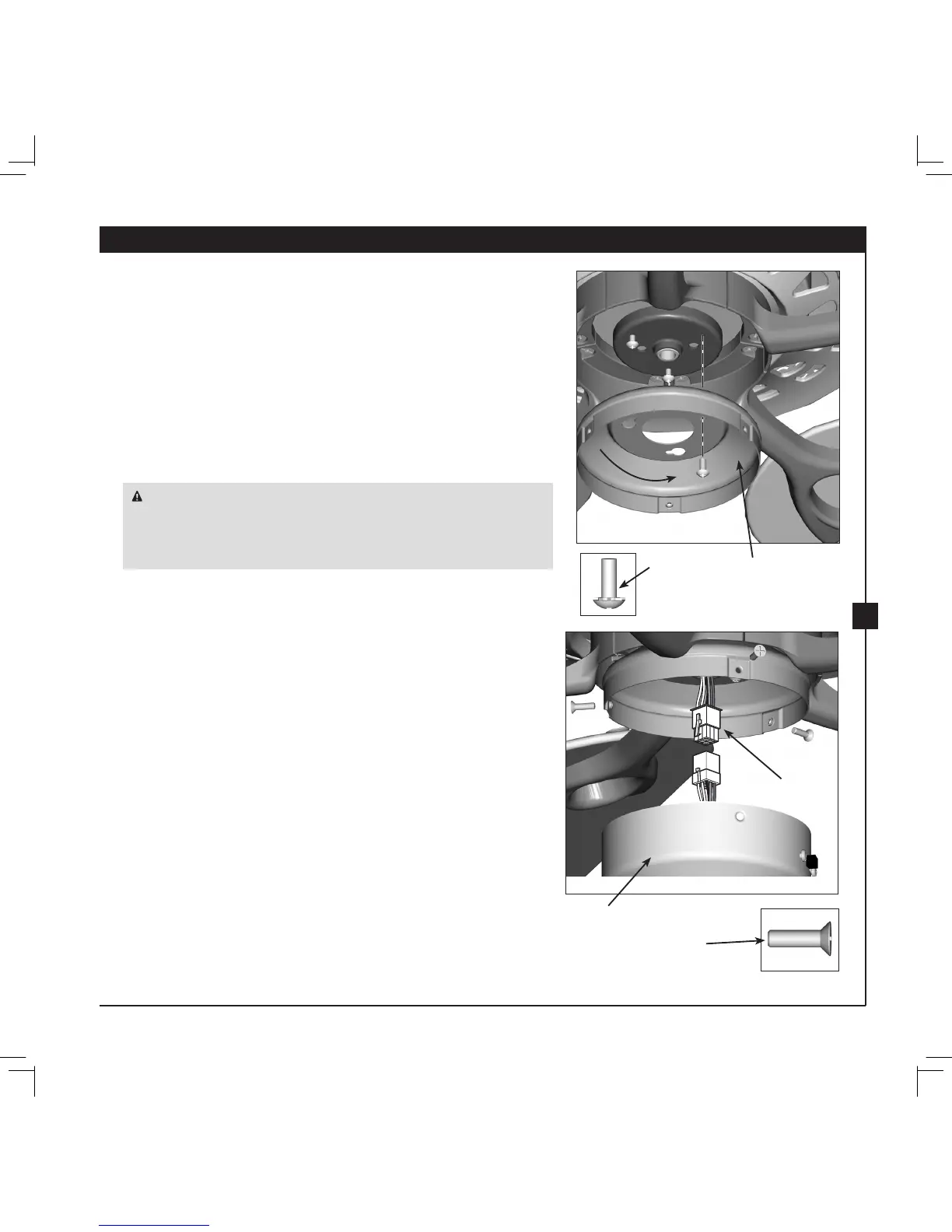

8 • Installing the Switch Housing
8-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
8-2. Feed the upper plug connector through the center opening of the
housing.
8-3. Align the keyhole slots in the housing with the housing assembly
screws.
8-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining housing assembly screw into the housing.
Tighten all three screws rmly.
CAUTION: Make sure the upper switch housing is securely attached
to the switch housing mounting plate. Failure to properly attach and
tighten all three assembly screws could result in the switch housing
xture falling.
8-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-6. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
Note: You can customize your Hunter fan with a number of accessory
light kits.
Steps 8-1 – 8-4
Housing
Assembly
Screw
Upper
Switch
Housing
Housing
Assembly
Screw
Lower
Switch
Housing
Steps 8-5 – 8-6
Plug
Connector
To Next Page
