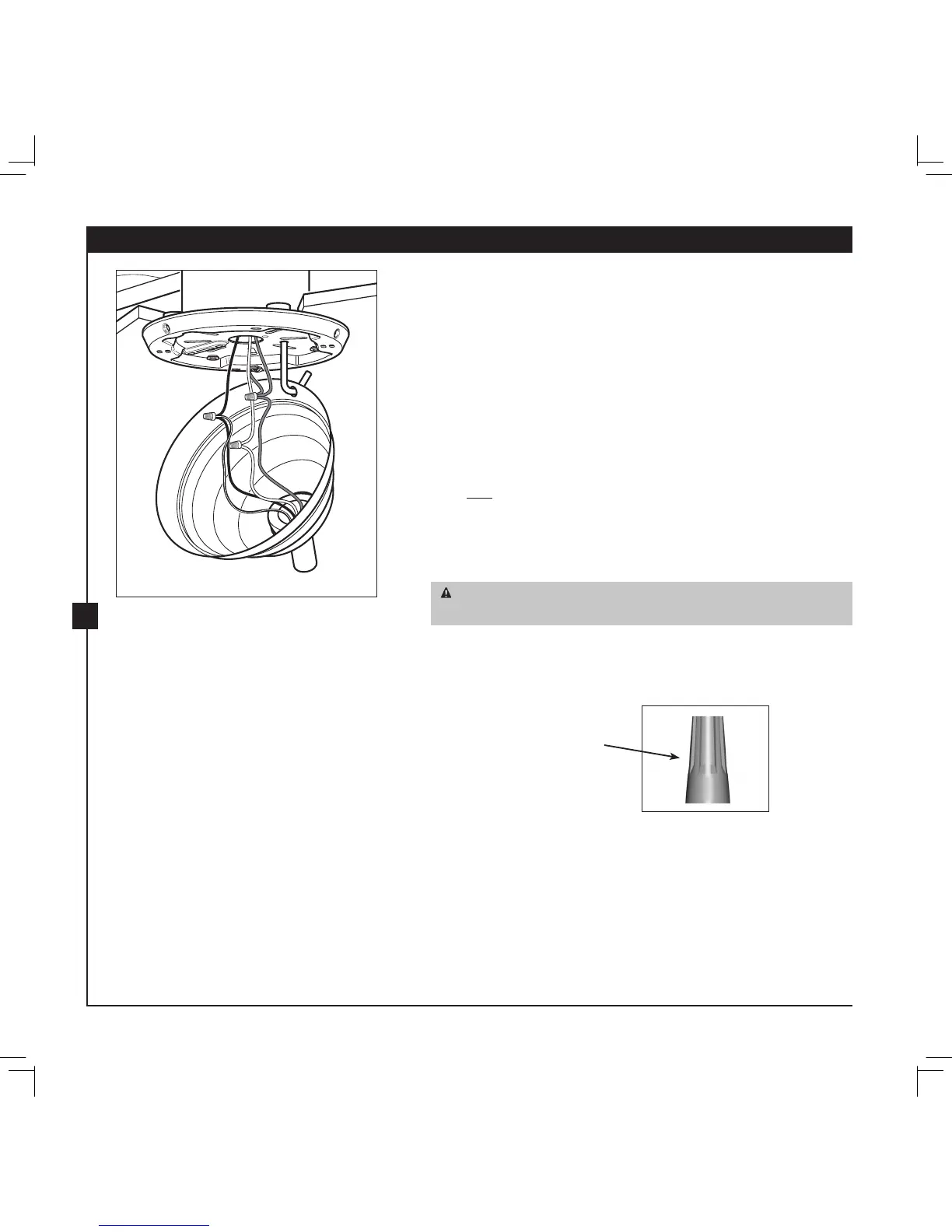

5 • Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
5-1. Disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location.
5-2. Connect the wires as follows: connect the green ground wire to
the ground wire, connect white wire to white wire, connect the
black and the black/white wire from the fan to the black wire in
the ceiling.
5-3. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-4. Push all wires and wire nuts back through the ceiling plate hole
into the outlet box.
Wire Nut
Step 5-4
To Next Page
