Hunter ICC-800PL

14
Common Wire
Master Valve
Master
Valve
Wire
Power Module

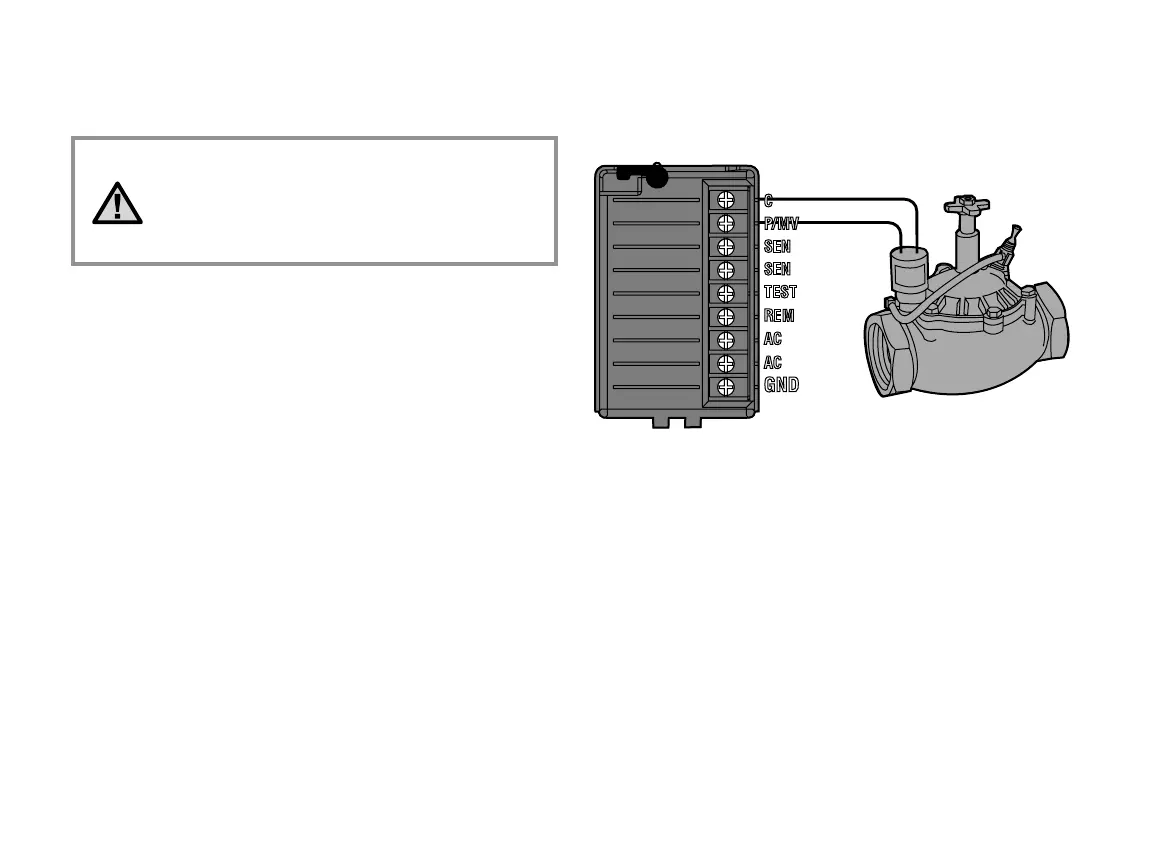

CONNECTING A MASTER VALVE .........................................................................................
NOTE: Complete this section only if you have
a master valve installed. A master valve is a
normally closed valve installed at the supply point
of the main line that opens only when the automatic
system is activated.
1. At the Master Valve, attach the common wire to either solenoid
wire of the valve. Attach a separate control wire to the remaining
solenoid wire.
2. Route the wires into the controller via the field wire conduit.
3. Connect either wire from Master Valve to the P/MV terminal.
Connect remaining wire to the C (Common) terminal.
