Hunter Roam - Extending Wiring on Smartport Harness

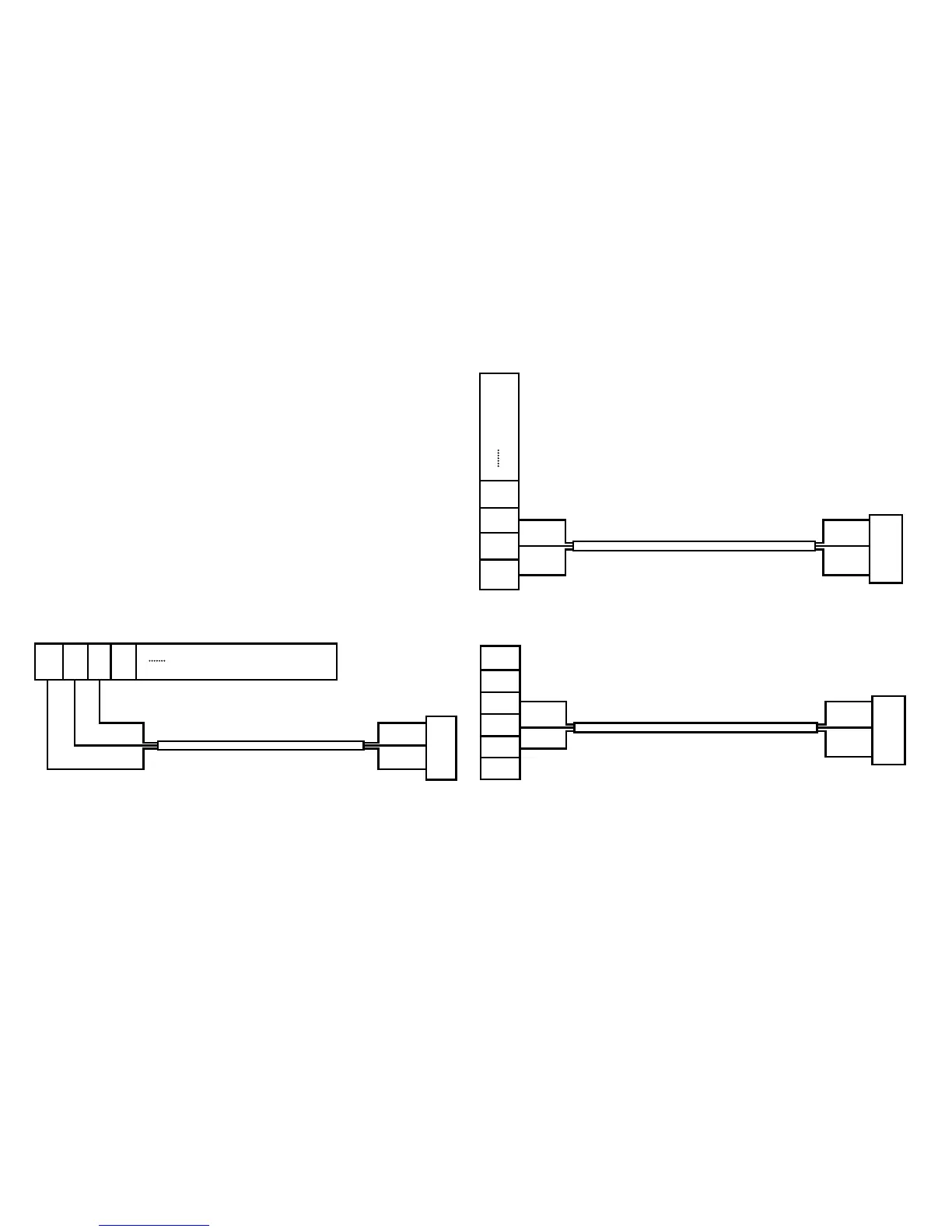

HUNTER SRR-SCWH
WIRING HARNESS
SRC TERMINAL BLOCK
BLUE
WHITE
RED
BLUE
WHITE
RED
AC AC RRS
HUNTER SRR-SCWH WIRING HARNESS
BLUE
WHITE
RED
ICC TERMINAL BLOCK
BLUE
WHITE
RED
AC
AC
R
RS
HUNTER SRR-SCWH WIRING HARNESS
BLUE
WHITE
RED
PRO-C TERMINAL BLOCK
BLUE
WHITE
RED
SEN
SEN
REM
AC2
AC1
GRD
10
Use shielded cable to connect the SmartPort
®
to
the controller if installing the connector more than
2meters of wiring length from the controller. The
use of shielded cable will eliminate the potential for
radio interference by preventing the wire as acting
as an antenna. At no time should the SmartPort
®
be installed more than 15 meters away from the
controller.
For easiest installation, order a Hunter SRS-SCWH
SmartPort
®
wiring harness with a full 7.6 meters of
shielded cable.
eXTendinG WiRinG on sMaRTPoRT
®
HaRness ....................
