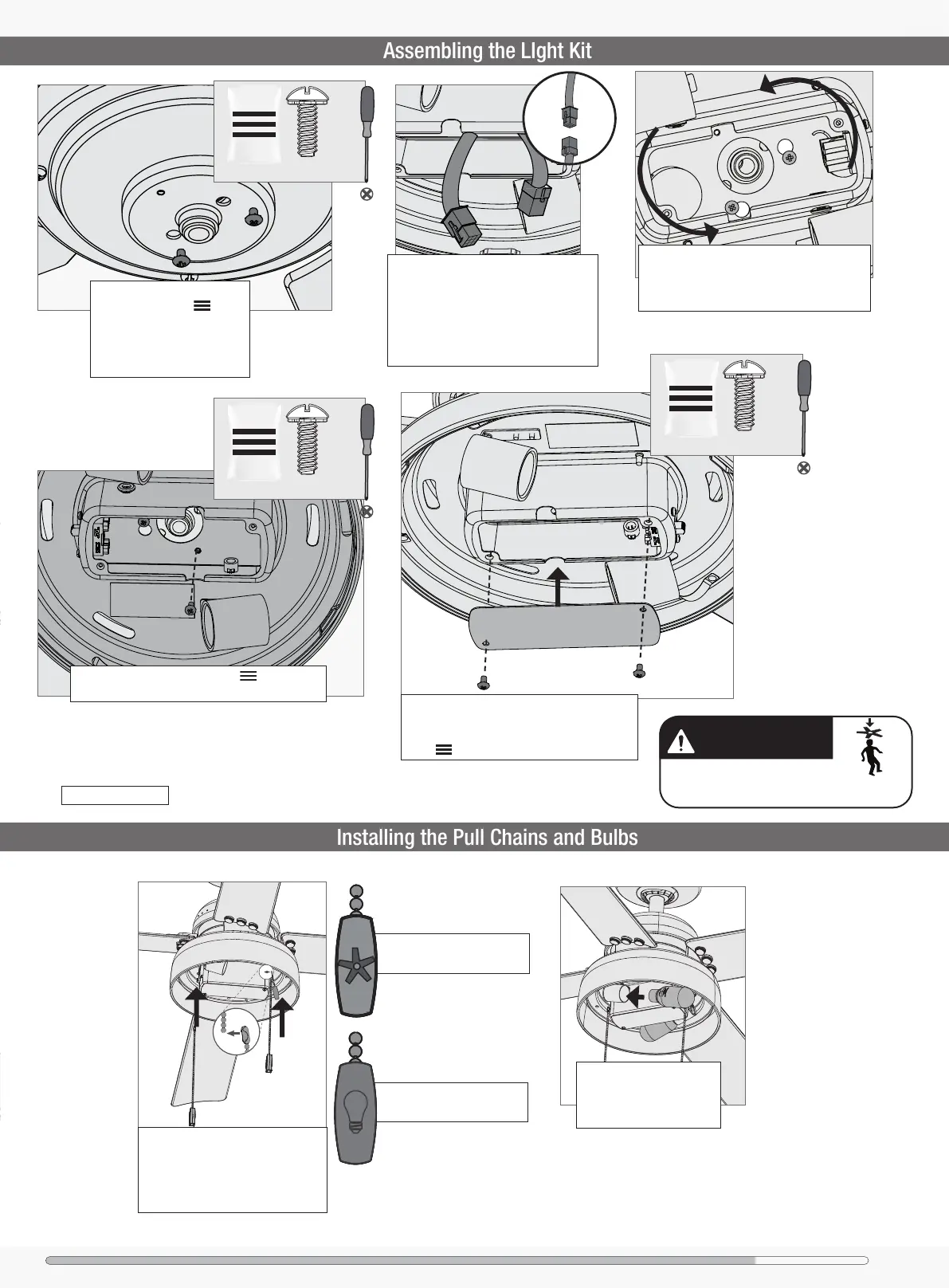

Installing the Pull Chains and Bulbs
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Wrap the keyhole slots around the
screws and twist counterclockwise.
Partially install two light kit
screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
Feed the 9-pin plug connector coming
from the bottom of the motor housing
through the center hole in the light kit
assembly. Connect it to the plug connector
found in the switch housing area of the
light kit assembly. Make sure to line up
the colored markings on the connectors.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
2 of 5
Light Kit Screw
bag
1 of 5
Light Kit Screw
bag
2 of 5
Light Kit Screw
bag
Insert the third screw, found in the hardware
bag, in place and rmly tighten all the three screws.
Carefully push all switch housing components
into the switch housing, then install the switch
housing plate using two light kit screws, found
in the hardware bag.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Bulbs Cage
Remove and discard the plastic
connectors from the ends of the
short pull chain. Attach the pull chain
pendants to the light and fan pull
chains.
The fan pull chain controls
the speed: from high to off.
The light pull chain controls
the light xture: on and off.
Repeat x2
Fan style may vary.
Note:
