2
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x2
x2
For installing the hanger bracket and wiring the fan
For installing the canopy
Canopy
Canopy Screw
Ceiling Bracket
Wood Screw
Wire Nut
Washer
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

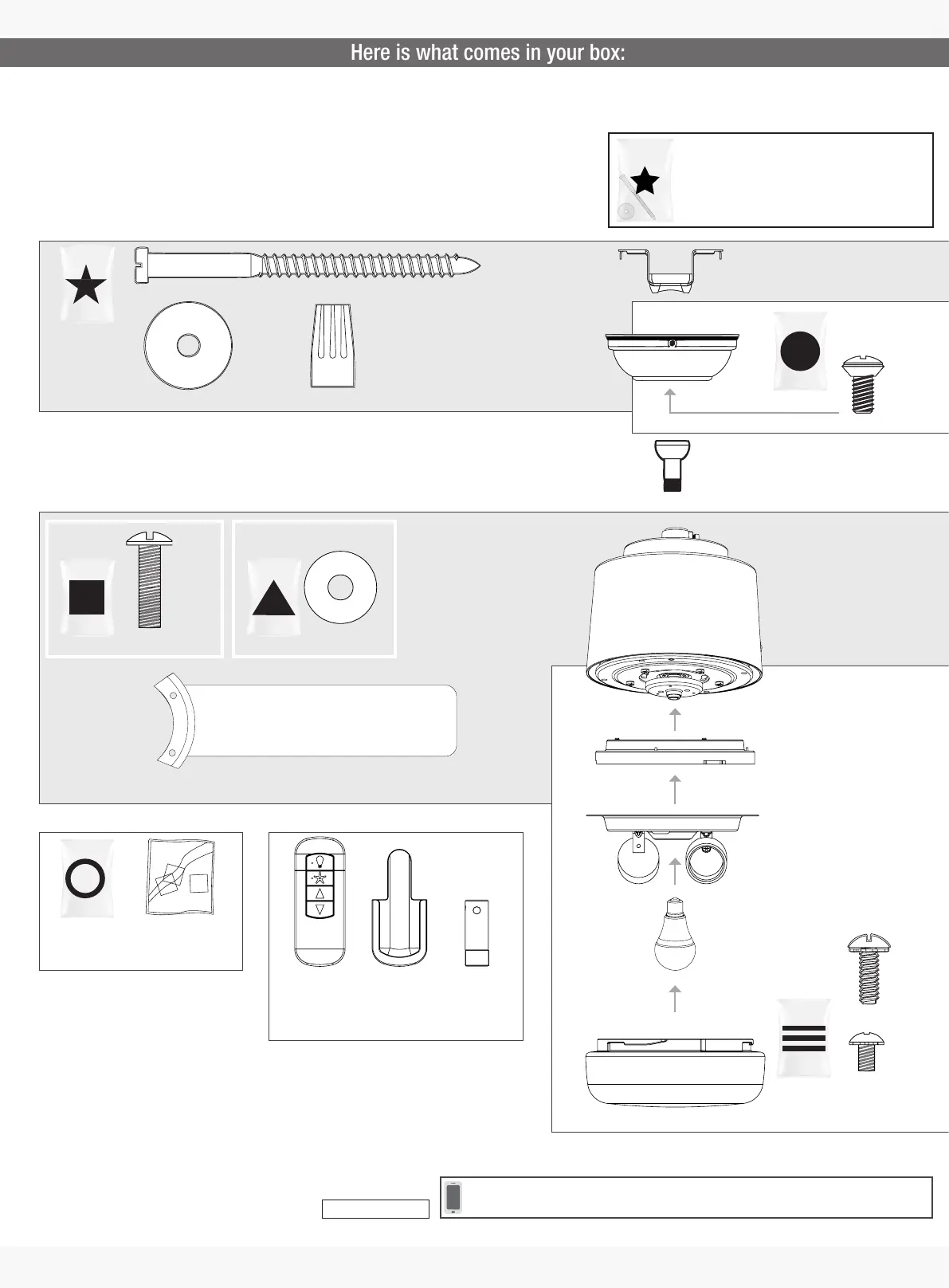

Here is what comes in your box:
bag
x10
x10
For installing the blades
For installing the light kit
Glass
Upper Switch Housing
Light Kit
Blade ScrewBlade Washer
bag bag
Spare Parts
For your convenience,
you may receive extra fasteners.
bag
x3
x3
Light Kit Screw
bag
Downrod
Motor
x5
Blade
x2
Bulb
Switch Housing
Screw
M3865-01 r120120
Fan style may vary.
Note:
Remote and Downrod
Remote Control Remote Cradle Downrod
