32 4. Maintenance, Calibration and Replacement Parts Operation Instructions for TCX575 Tire Changer
4.2 Mount/Demount Head Assembly
Mount/Demount Head Calibration
The mount/demount head is pre-calibrated from the factory, however, double
checking the calibration is recommended. Calibration requires the use of an
(approximately) 18 inch bare rim.
1. Clamp rim without a tire on the tire changer turntable.

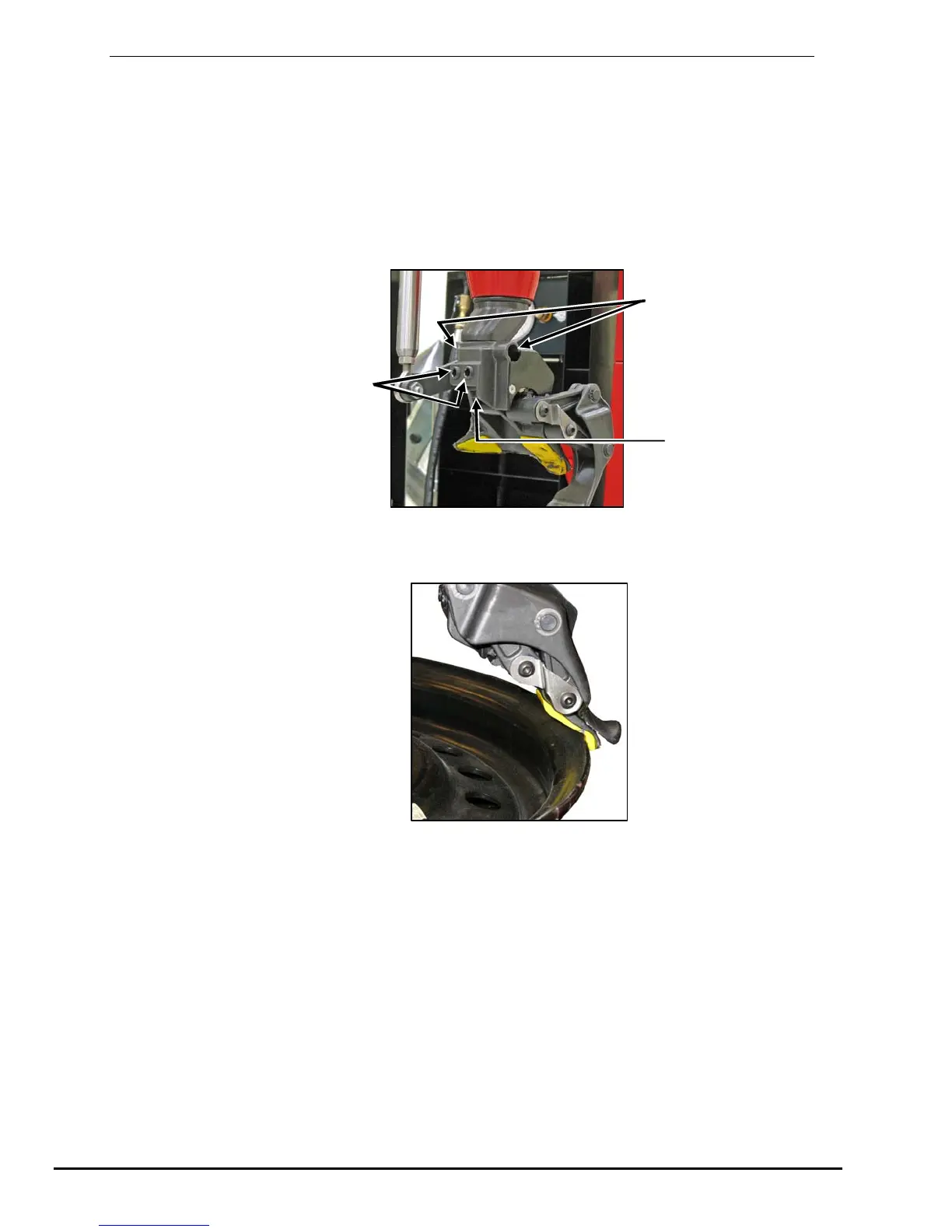

2. Before making any adjustments, loosen the four adjustment screws and
tighten the head retaining bolt until some grip is obtained.
HEAD
RETAINING
BOLT
DJUSTMENT
SCREWS
ADJUSTMENT
SCREWS
3. Position the tool head manually against the edge of the rim so that both
sides of the tool head are resting on it. Keep the tool head in position
without engaging the head position lock.
