Operation Instructions for TCX575 Tire Changer 1. Getting Started 3
WARNING: Never mount a tire to a rim that is not the same diameter
(e.g., 16 1/2 inch tire mounting on a 16 inch rim).
CAUTION: Do not hose down or power wash electric tire changers.
Do not operate the tire changer with worn, rubber or plastic parts.
Wheels equipped with low tire pressure sensors or special tire and rim designs may
require certain procedures. Consult manufacturer’s service manuals.
Service and maintain machine regularly as outlined in this Manual. For further
information contact:
Hunter Engineering Company
11250 Hunter Drive
Bridgeton, Missouri 63044
800-448-6848
314-731-3020
Internet address: www.hunter.com
1.3 Control Pedals

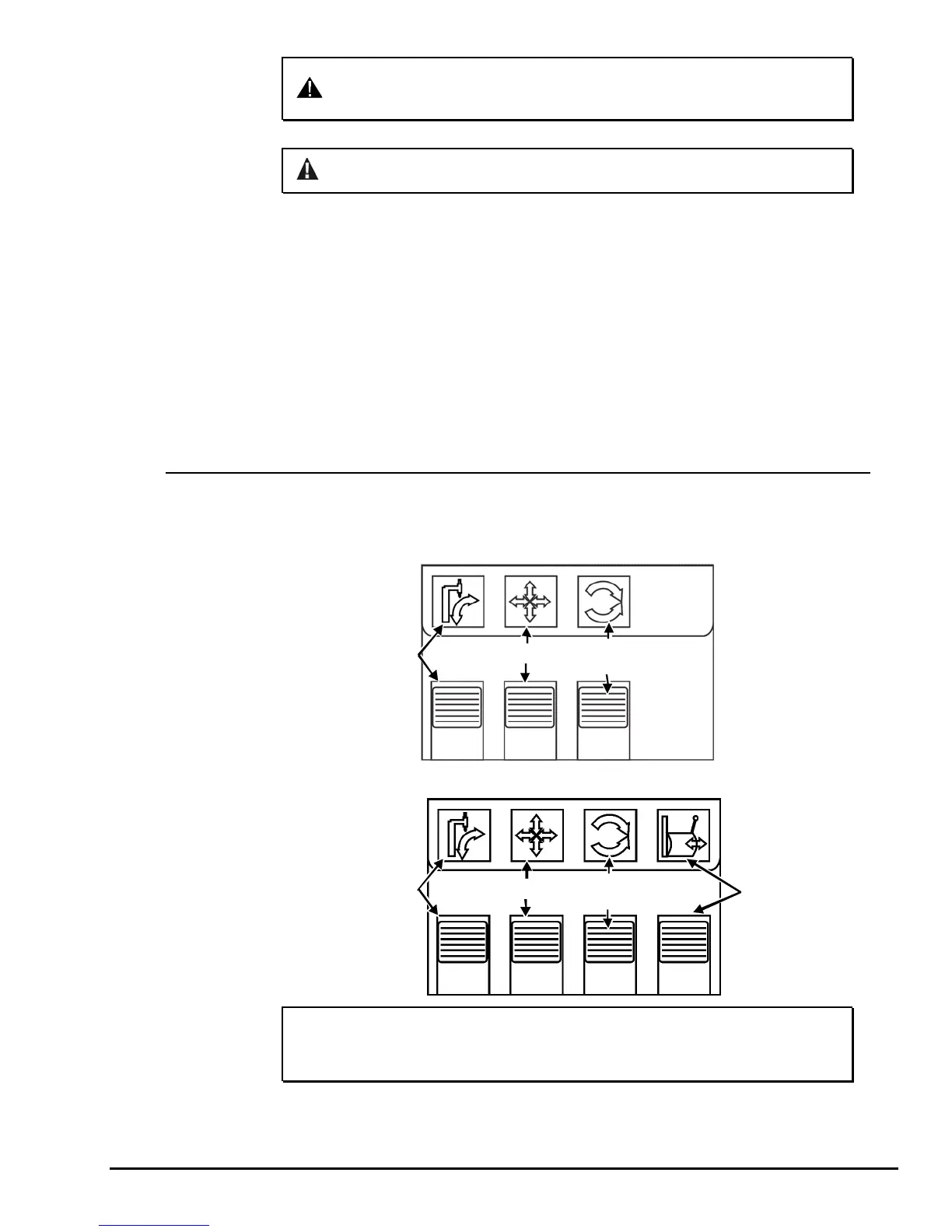

Control pedals on the TCX575 tire changer are configured as shown below:
PowerOut Version
COLUMN
ROTATION
CLAMP
NOTE:
SHOVEL
CONTROLLED
BY
POWEROUT
BUTTONS
TABLE
ROTATION
Non-PowerOut Version
COLUMN
ROTATION
CLAMP
SHOVEL
TABLE
ROTATION
NOTE: If the unit is equipped with a wheel lift, there is an
additional pedal at the far right upper portion of the face of
the unit.
