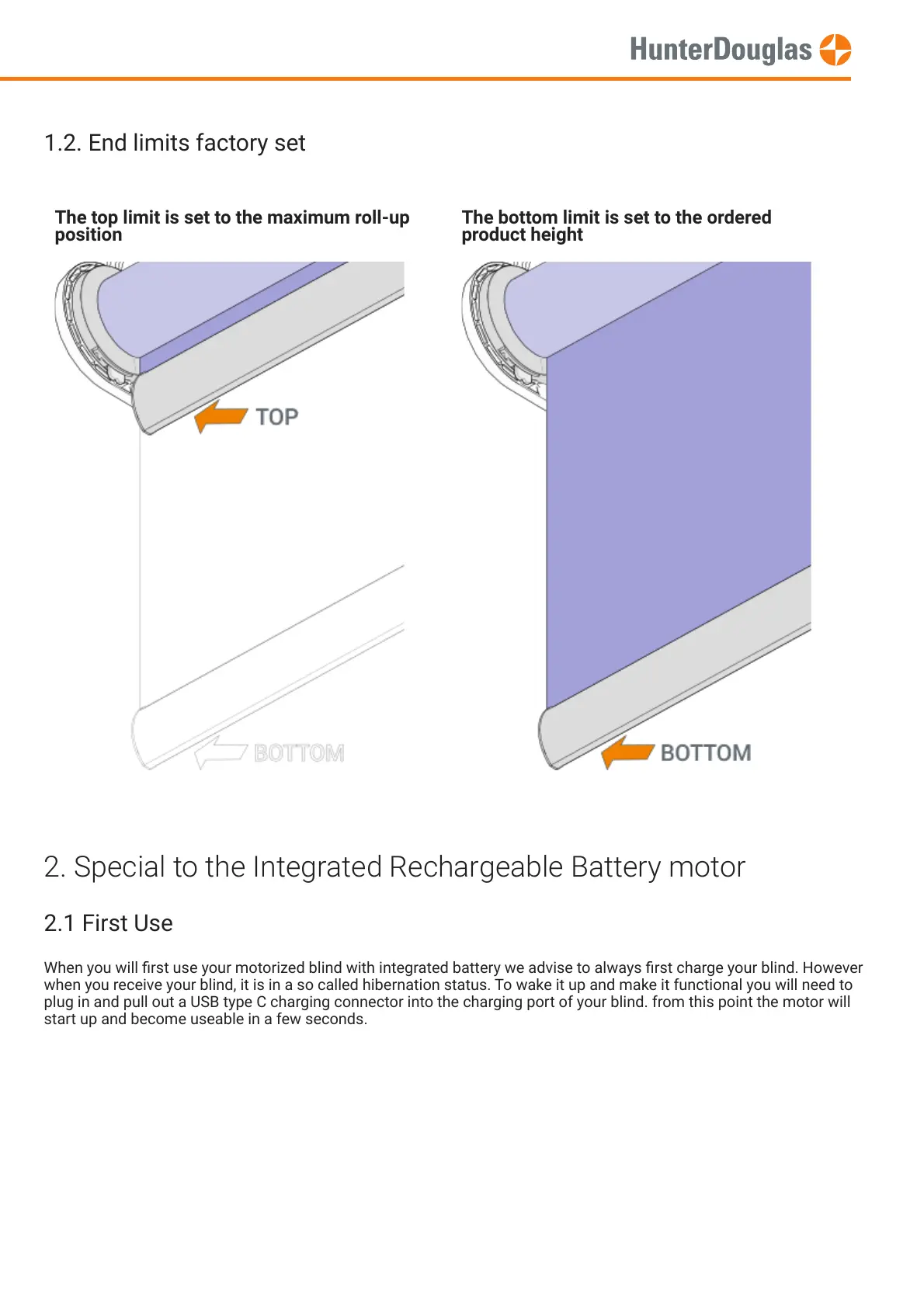

1.2. End limits factory set
2. Special to the Integrated Rechargeable Battery motor
2.1 First Use
When you will rst use your motorized blind with integrated battery we advise to always rst charge your blind. However
when you receive your blind, it is in a so called hibernation status. To wake it up and make it functional you will need to
plug in and pull out a USB type C charging connector into the charging port of your blind. from this point the motor will
start up and become useable in a few seconds.
The top limit is set to the maximum roll-up
position
The bottom limit is set to the ordered
product height
MANUAL
Page 2 of 23 version: 1.0
