12 SERVICE WORK ON THE CHASSIS 99

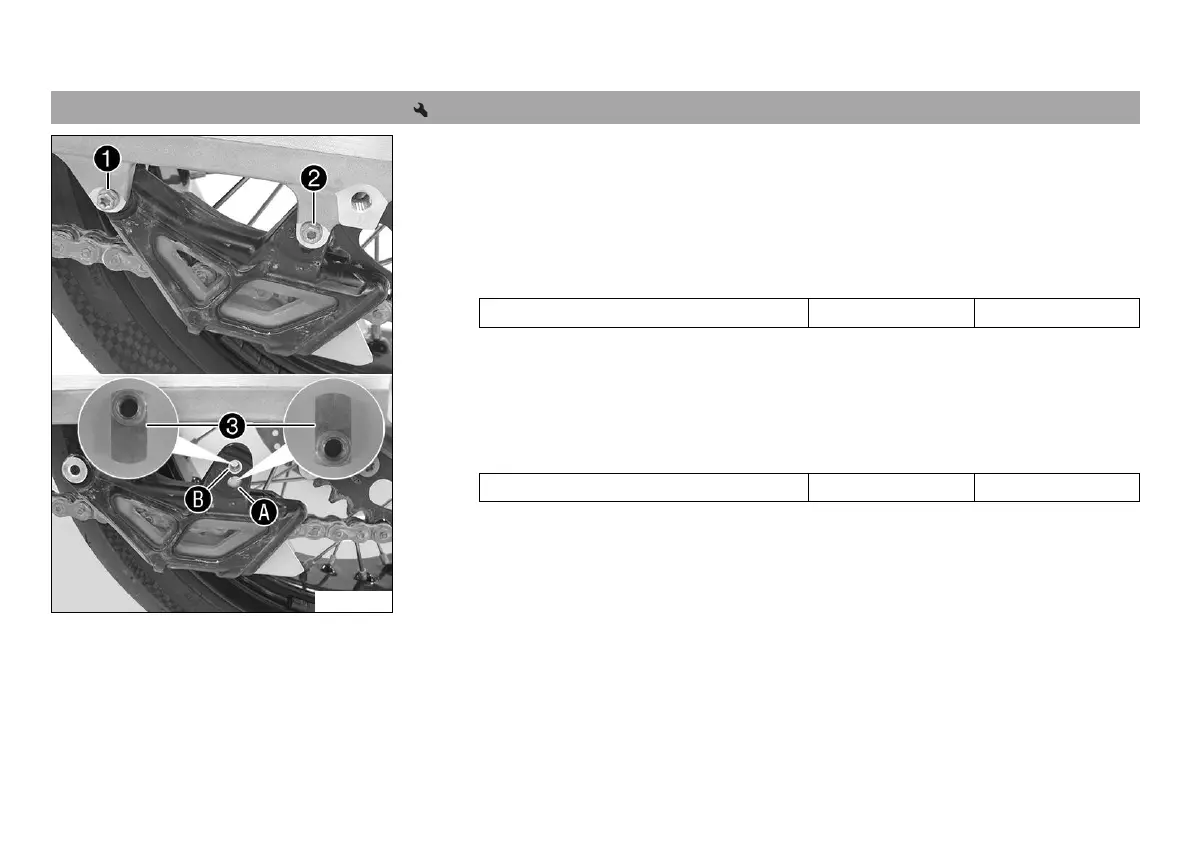

12.23 Adjusting the chain guide

S01030-10

–

Remove screws



and



. Take off the chain guide.

Condition

Number of teeth: ≤ 44 teeth

–

Insert nut



in hole



. Position the chain guide.

–

Mount and tighten screws



and



Guideline

Screw, chain guide M6 8 Nm (5.9 lbf ft)

Condition

Number of teeth: ≥ 45 teeth

–

Insert nut



in hole



. Position the chain guide.

–

Mount and tighten screws



and



Guideline

Screw, chain guide M6 8 Nm (5.9 lbf ft)
