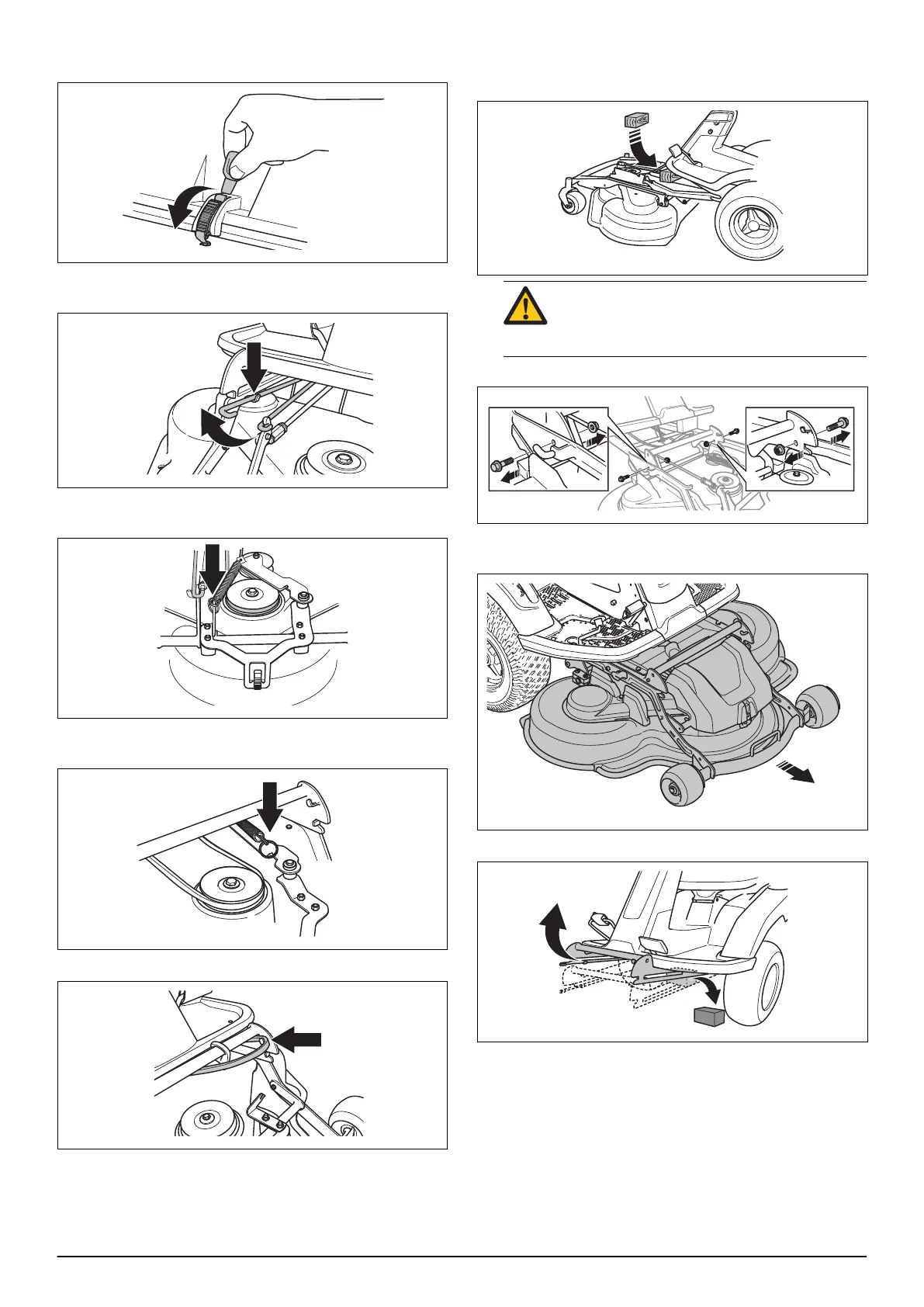

4. Release the clip on the front cover with the tool
attached to the ignition key, and remove the cover.
5. Lift the cutting height stay and put it in the holder for
the cutting height stay.
6. Pull the spring eye to loosen the spring for the drive
belt tension.
7. Put the spring eye in the holder on the tension arm
for the drive belt.
8. Remove the drive belt and put it in the belt holder.
9. Put a wooden block between the equipment frame
and the chassis. This makes sure that the cutting
deck does not spring back when removed.
WARNING: Be careful. Risk of injury if your
hand is caught between the equipment
frame and the chassis.
10. Remove the 2 screws on the equipment frame.
11. Hold the front edge of the cutting deck with two
hands and pull it out.
12. Remove the wooden block.
13. Attach the cutting deck in opposite sequence.
10 - Assembly 1676 - 001 - 26.11.2021
